Description

Price

1

REAR ARM (4H7-22110-00-98)

16G-22110-00-98

Unavailable

2

BOOT, RUBBER

4H7-22189-00-00

Unavailable

3

SHAFT, PIVOT

4H7-22141-00-00

$36.99

4

BRG,CYL-CAL ROLLER 74G KY

93332-00010-00

$47.99

5

OIL SEAL (25X40X5-101)

93102-25017-00

$5.60

6

COLLAR

90387-17011-00

$15.99

7

SHAFT, PIVOT

15B-22141-00-00

Unavailable

8

NUT, PIVOT SHAFT

1J7-22143-00-00

$23.99

9

BOLT

97017-08035-00

Unavailable

10

WASHER(JN5)

92907-08100-00

$8.49

11

WASHER, LOCK(10H)

90215-22238-00

$11.49

12

COVER

2H7-2219X-00-00

$35.99

13

SPRING, TENSION (1J7)

90506-07136-00

$12.49

14

SHK/ABS ASSEMBLY, REAR

(5G2-22210-01-00)

Unavailable

15

SHK/ABS ASSEMBLY, REAR

5N1-22210-10-00

Unavailable

16

NUT, CROWN(3BM)

90176-10073-00

Unavailable

17

WASHER PLATE 341222430000

90201-10142-00

Unavailable

18

BOLT,DOME HEAD

90106-10052-00

Unavailable

19

YBS67-10 WASHER, SPRING

92990-10100-00

Unavailable

20

WASHER, PLATE(3BM)

90201-105R9-00

Unavailable

21

SPRING

(5G2-22212-A0-00)

Unavailable

21

NUT, CAP (371)

90176-10009-00

Unavailable

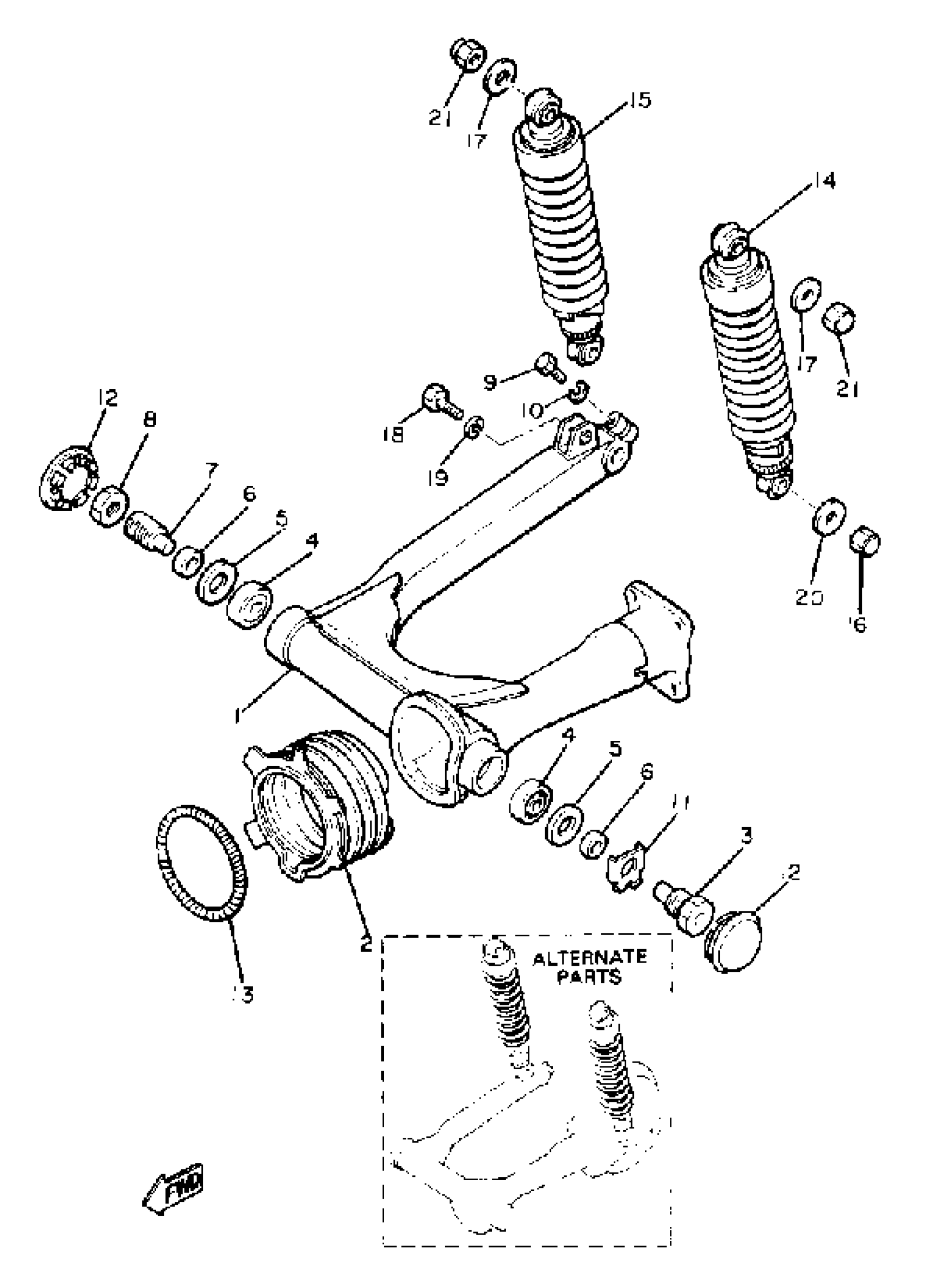

Yamaha XJ750RH (XJ750R) 1981 REAR ARM SUSPENSION Diagram

REAR ARM (4H7-22110-00-98)

BOOT, RUBBER

SHAFT, PIVOT

BRG,CYL-CAL ROLLER 74G KY

OIL SEAL (25X40X5-101)

COLLAR

SHAFT, PIVOT

NUT, PIVOT SHAFT

BOLT

WASHER(JN5)

WASHER, LOCK(10H)

COVER

SPRING, TENSION (1J7)

SHK/ABS ASSEMBLY, REAR

SHK/ABS ASSEMBLY, REAR

NUT, CROWN(3BM)

WASHER PLATE 341222430000

BOLT,DOME HEAD

YBS67-10 WASHER, SPRING

WASHER, PLATE(3BM)

SPRING

NUT, CAP (371)
