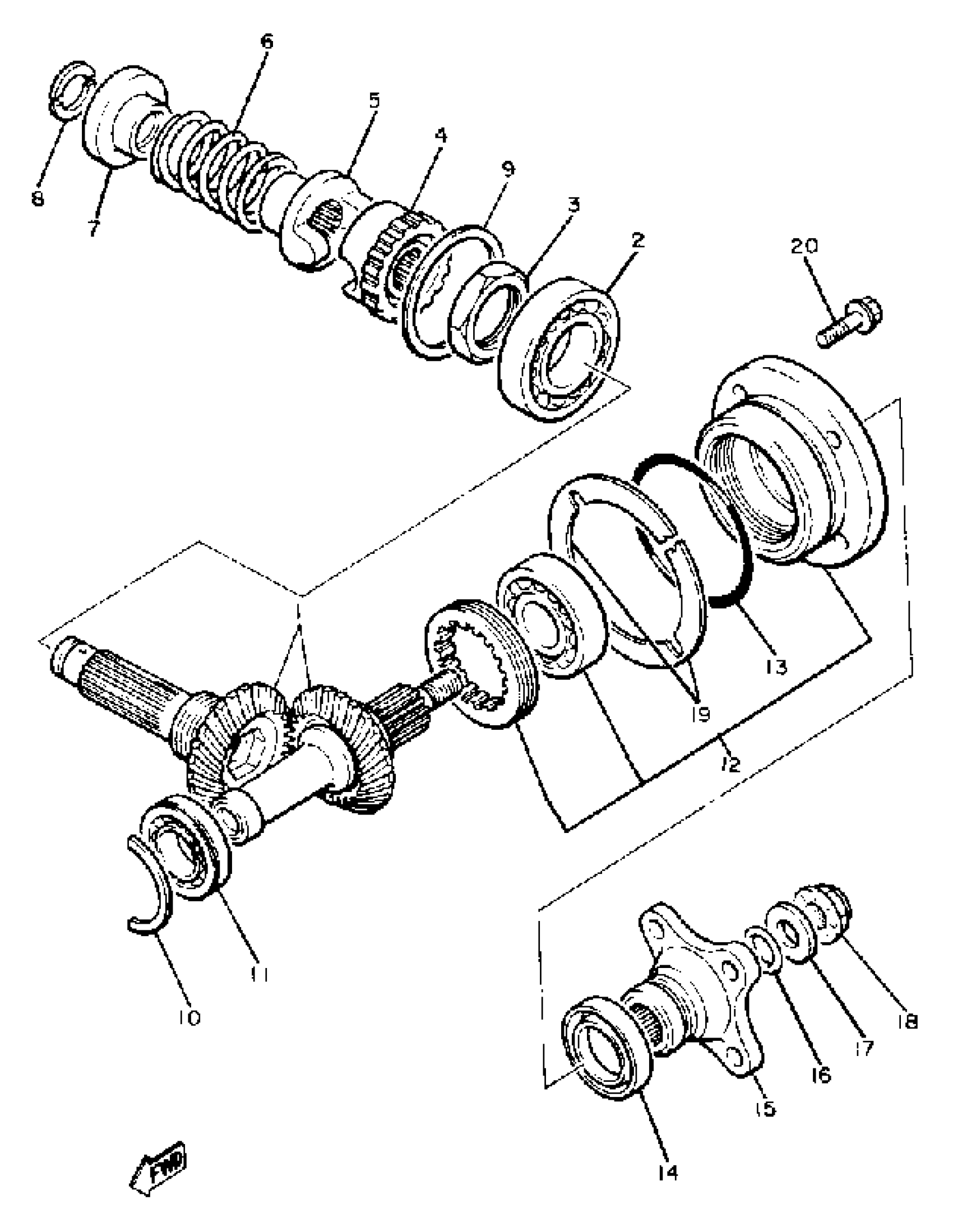

Yamaha XJ750RH (XJ750R) 1981 MIDDLE DRIVE GEAR Diagram

#

Description
Price

1

MIDDLE GEAR

4H7-W1751-00-00

Unavailable

2

BRG,R-B 6207 72MM 272G KY

93306-20709-00

Unavailable

3

NUT, SPEC''L SHAPE

90179-34304-00

Unavailable

4

CAM, DRIVE

4H7-17526-02-00

Unavailable

5

CAM, DRIVEN

4H7-17527-00-00

Unavailable

6

SPRING, COMPRESSION

(90501-65575-00)

Unavailable

7

HOLDER

4H7-17524-00-00

Unavailable

8

WASHER, THRUST

3H5-17529-00-00

$7.99

9

SHIM, THRUST

4H7-17537-00-20

$5.49

9

SHIM, THRUST (0.30T)

4H7-17537-00-30

Unavailable

9

SHIM, THRUST (0.40T)

4H7-17537-00-40

Unavailable

10

CIRCLIP(1FN)

93440-45144-00

$2.28

11

BEARING(1FF)

93306-00519-00

$36.99

12

HOUSHING COMP

4H7-W1752-00-00

Unavailable

13

O-RING (2H7)

93210-71360-00

$13.49

14

OIL SEAL (4H7)

93101-35097-00

Unavailable

15

FLANGE, MIDDLE GEAR

4H7-17555-00-00

Unavailable

16

O-RING (2H7)

93210-14359-00

Unavailable

17

WASHER, PLATE (1J7)

90201-14633-00

Unavailable

18

NUT

90179-14317-00

Unavailable

19

SHIM, PINION

3JB-17531-10-00

Unavailable

19

SHIM, PINION

3JB-17531-20-00

Unavailable

19

SHIM, PINION

3JB-17531-30-00

Unavailable

19

SHIM, PINION

3JB-17531-40-00

Unavailable

19

SHIM, PINION

4H7-17531-00-15

Unavailable

20

BOLT, FLANGE(6TA)

95817-08030-00

Unavailable
