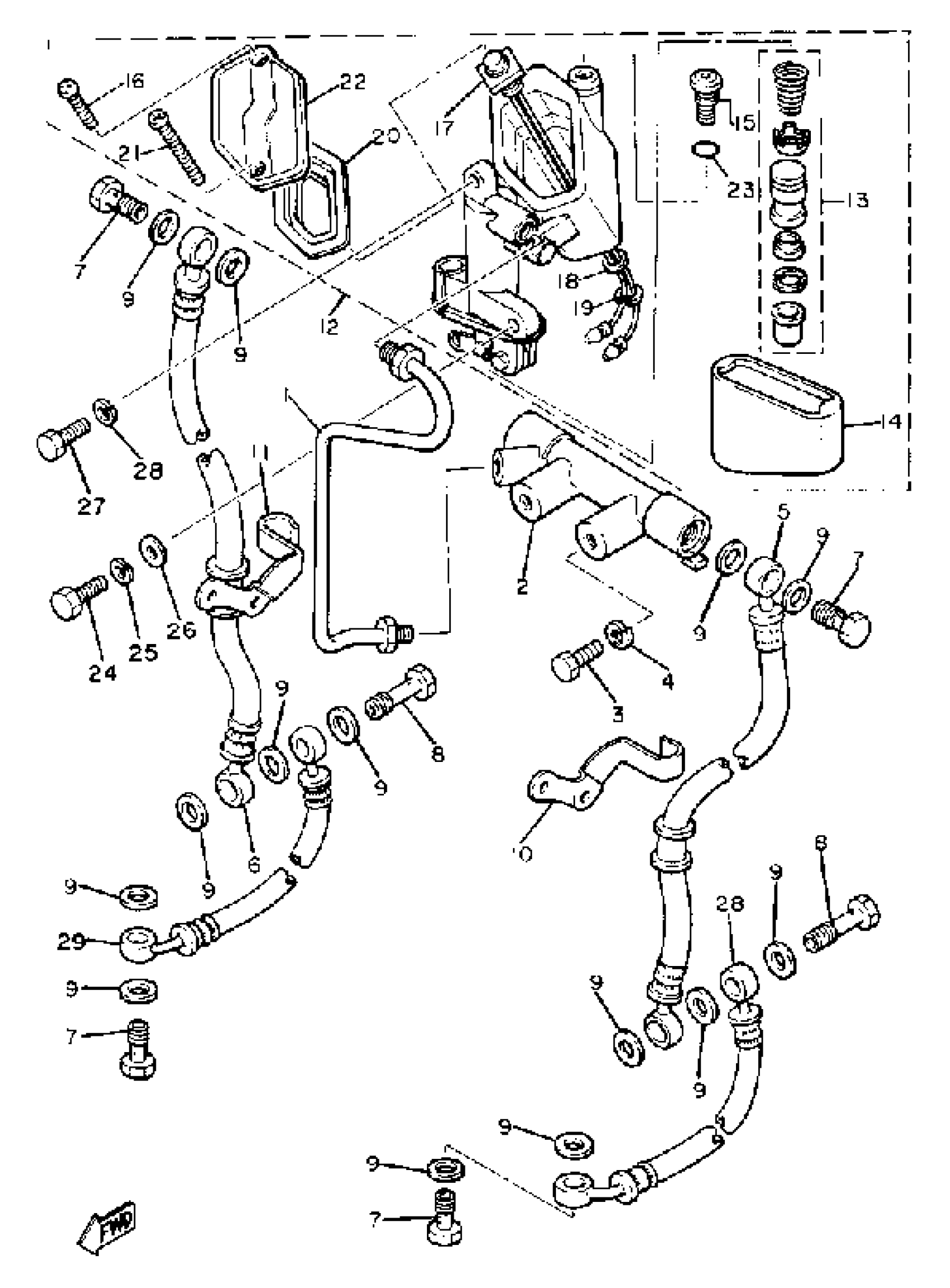

Yamaha XJ750RH (XJ750R) 1981 FRONT MASTER CYLINDER Diagram

#

Description
Price

1

PIPE, BRAKE

5G2-25871-02-00

Unavailable

2

JOINT

(5G2-25885-00-00)

Unavailable

3

BOLT, HEXAGON

97017-06020-00

$4.06

4

WASHER, SPRING

92907-06100-00

$4.25

5

HOSE, BRAKE 1

(5G2-25872-02-00)

Unavailable

6

HOSE, BRAKE 2

5G2-25873-02-00

Unavailable

7

BOLT, UNION(3GM)

90401-10159-00

$11.49

8

BOLT, UNION

90401-10038-00

$12.49

9

WASHER, PLATE(481)

90201-10118-00

Unavailable

10

HOLDER, BRKE HOSE 1

4E2-25875-00-00

Unavailable

11

HOLDER, BRKE HOSE 2

4E2-25876-00-00

Unavailable

12

MSTR CYLINDER ASSEMBLY

5G2-25850-01-00

Unavailable

13

. CYLINDER KIT, MASTER

5G2-W0041-00-00

Unavailable

14

BOOT, MASTER CYLINDER

(5G2-25862-00-00)

Unavailable

15

. PLUG, STRAIGHT SCRW

90340-10074-00

Unavailable

16

. SCREW, BINDING

90154-05009-00

Unavailable

17

. LEAD SWITCH ASS''Y

5G2-85702-00-00

Unavailable

18

. O-RING

93210-08493-00

Unavailable

19

CIRCLIP(J51)

99080-09600-00

Unavailable

20

DIAPHRAGM RESERVOR

(5G2-25854-00-00)

Unavailable

21

. SCREW, BINDING

90154-05010-00

Unavailable

22

. CAP, RESERVOIR

5G2-25852-00-00

Unavailable

23

BOLT, HEXAGON

97017-08025-00

Unavailable

24

WASHER(JN5)

92907-08100-00

Unavailable

25

WASHER(6TA)

92907-08600-00

Unavailable

26

BOLT, HEXAGON

97017-06012-00

Unavailable

27

WASHER, SPRING

92907-06100-00

$4.25

28

HOSE, BRAKE

5G2-25874-00-00

Unavailable
