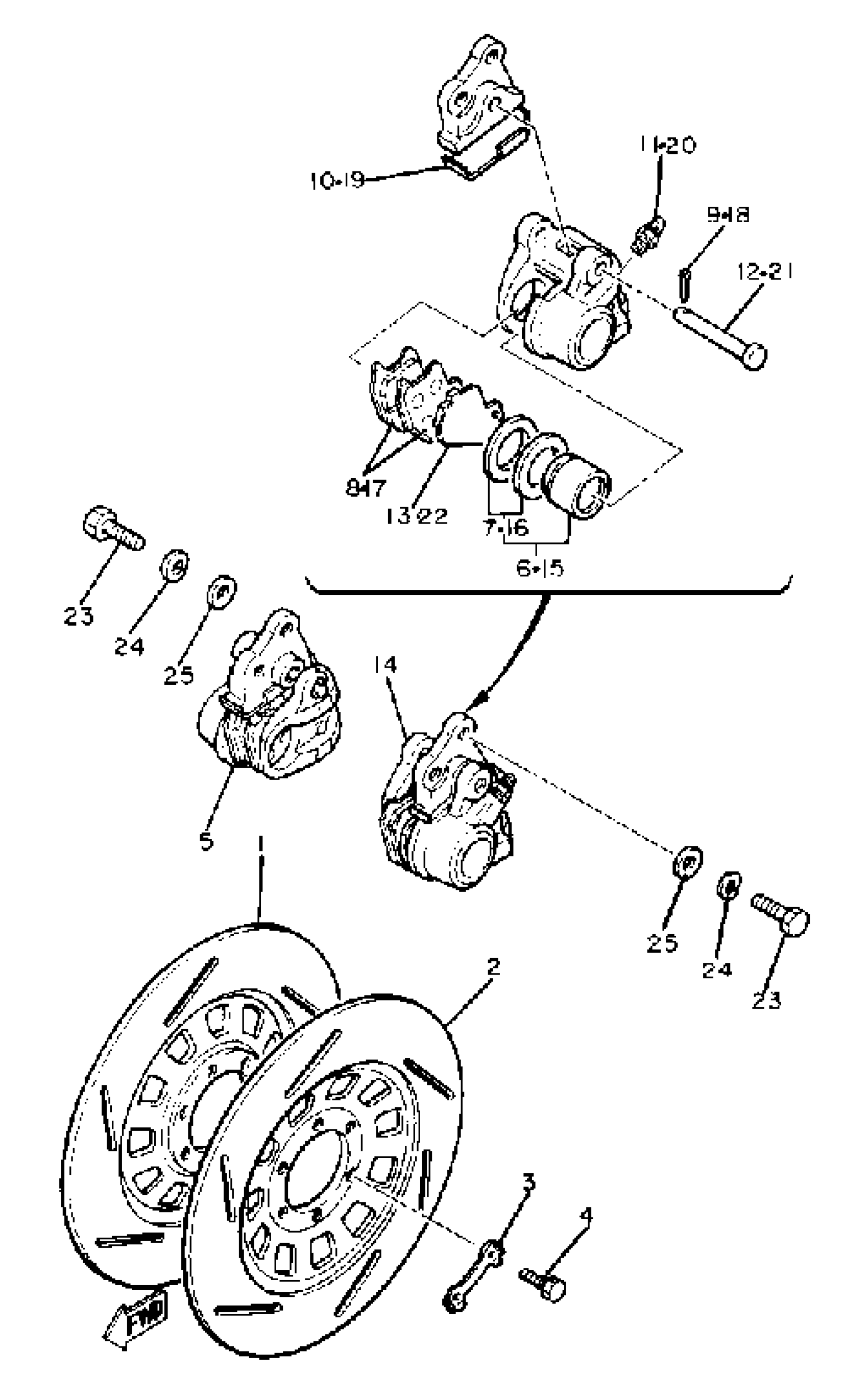

Yamaha XJ750RH (XJ750R) 1981 FRONT BRAKE CALIPER Diagram

#

Description

Price

1

DISC, BRAKE (RIGHT)

3JB-25831-00-00

Unavailable

2

DISC, BRAKE

5G2-25831-10-00

Unavailable

3

WASHER, LOCK

3H5-25834-00-00

Unavailable

4

BOLT, HEXAGON (1L9)

90101-08312-00

$9.49

5

CALIPER ASSY RIGHT

23W-25810-02-00

Unavailable

6

PISTON SEAL KIT

4W1-W0057-00-00

Unavailable

7

.. PISTON ASSEMBLY, CALIPER

4L0-W0057-00-00

Unavailable

8

BRAKE PAD KIT

23W-W0045-02-00

Unavailable

9

PIN, COTTER (648)

91490-20015-00

$2.20

10

. RETAINER

4L0-25913-01-00

Unavailable

11

BLEED SCREW KIT

1J3-W0048-00-00

Unavailable

12

. PIN, SLIDE

4W1-25914-00-00

Unavailable

13

. SHIM, CALIPER

4W1-25828-50-00

Unavailable

14

CALIPER ASY.

23W-25810-12-00

Unavailable

15

PISTON SEAL KIT

4W1-W0057-00-00

Unavailable

16

SEAL KIT

4L0-W0047-01-00

Unavailable

17

BRAKE PAD KIT

23W-W0045-02-00

Unavailable

18

PIN, COTTER (648)

91490-20015-00

$2.20

19

RETAINER

(4L0-25913-11-00)

Unavailable

20

BLEED SCREW KIT

1J3-W0048-00-00

Unavailable

21

. PIN, SLIDE

4W1-25914-00-00

Unavailable

22

. SHIM, CALIPER

4W1-25828-50-00

Unavailable

23

BOLT (1J3)

90101-10308-00

Unavailable

24

WASHER(6TA)

92907-10100-00

Unavailable

25

WASHER, PLAIN(3BM)

92907-10200-00

Unavailable
