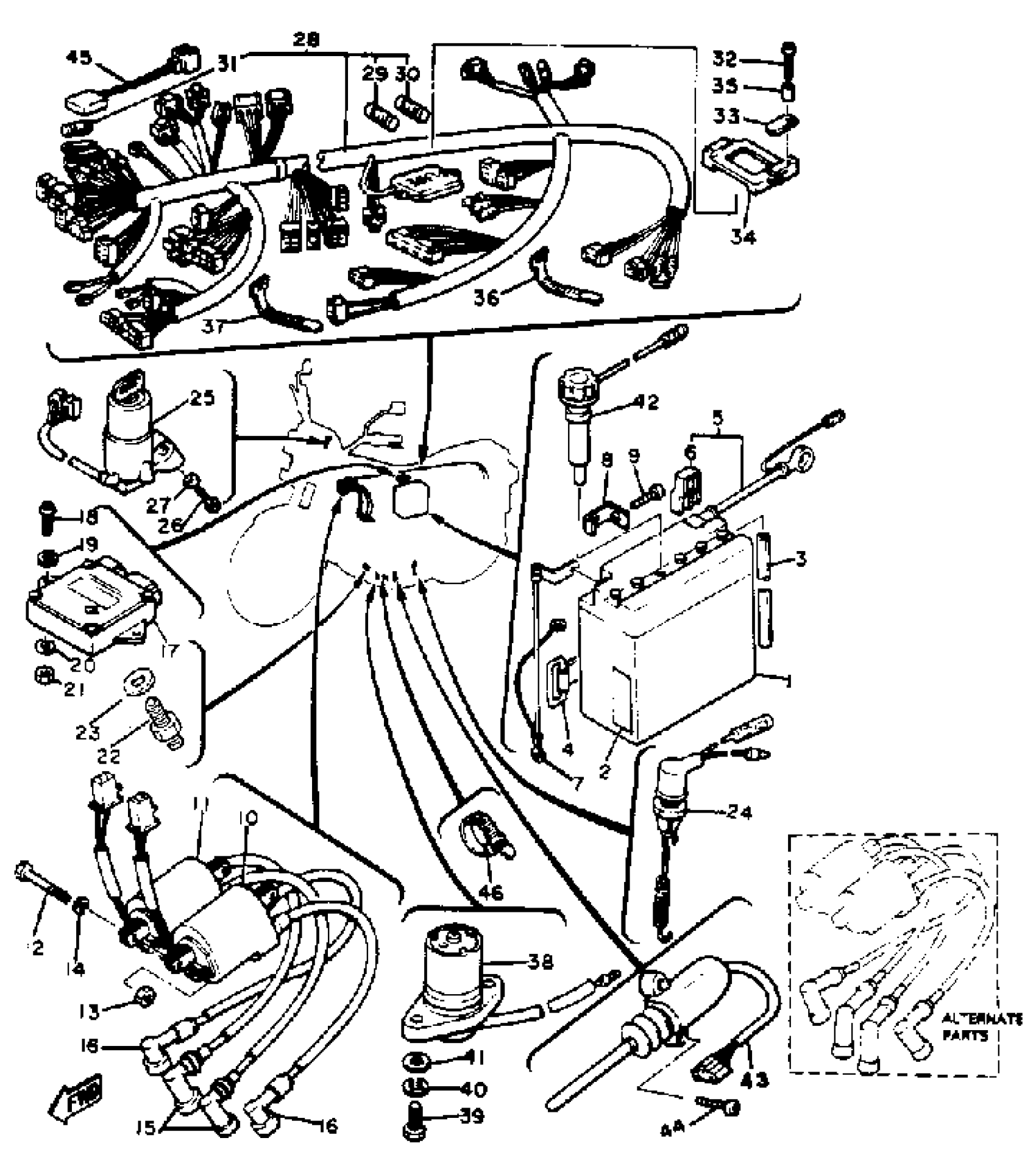

Yamaha XJ750RH (XJ750R) 1981 ELECTRICAL 1 Diagram

#

Description
Price

1

YB14LA2 YUASA BATTERY

YB1-4LA20-00-00

Unavailable

2

LABEL, BATTERY

40A-82141-G0-00

Unavailable

3

HOSE (L1500)

90445-084J0-00

$18.99

4

BAND, BATTERY

26H-82131-00-00

$23.99

5

WIRE, PLUS LEAD

5G2-82115-00-00

Unavailable

6

COVER, LEAD WIRE

(5G2-82119-00-00)

Unavailable

7

WIRE, MINUS LEAD

5G2-82116-00-00

Unavailable

8

TERMINAL 1

5G2-82103-00-00

Unavailable

9

SCREW, HEXAGON (5G2)

90153-06032-00

$2.49

10

IGNITION COIL ASSY

4G0-82310-09-00

$246.99

11

IGNITION COIL ASSY

4G0-82310-09-00

$246.99

12

BOLT(7LR)

97027-06080-00

$7.49

13

NUT, HEXAGON

95380-06600-00

Unavailable

14

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

15

PLUG CAP ASSY

1J7-82370-00-00

Unavailable

16

PLUG CAP ASSY

4BP-82370-01-00

Unavailable

17

IGNITOR UNIT ASSEMBLY 1

5G2-82305-10-00

Unavailable

18

SCREW, PAN

98507-06014-00

Unavailable

19

WASHER, SPRING

92995-06100-00

Unavailable

20

WASHER, PLAIN (646)

92990-06600-00

Unavailable

21

NUT(650)

95380-06700-00

Unavailable

22

NEUTRAL SWITCH ASSY

4GY-82540-10-00

Unavailable

23

GASKET (5R6)

90430-10171-00

Unavailable

24

STOP SWITCH ASSEMBLY (1E9-82530-00-00)

1E9-82530-02-00

Unavailable

25

MAIN SWITCH ASSEMBLY

5G2-82508-50-00

Unavailable

26

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

27

WASHER, PLAIN (646)

92990-06600-00

Unavailable

28

WIRE HARNESS ASSEMBLY

5G2-82590-50-00

Unavailable

29

FUSE (12V 30A)

2H7-82151-00-00

Unavailable

30

FUSE

1A0-82151-00-00

Unavailable

31

FUSE (12V 5A)

5G2-82151-00-00

Unavailable

32

YBS83-525 SCREW,PANH.TAPPING

97780-50125-00

Unavailable

33

WASHER

(4K0-82558-00-00)

Unavailable

34

DAMPER

4K0-82157-00-00

Unavailable

35

COLLAR(55K)

90387-066M1-00

Unavailable

36

BAND, SWITCH CORD

437-83936-11-00

Unavailable

37

BAND, SWITCH CORD

25G-83936-01-00

Unavailable

38

OIL LVL GAUGE ASY

2KW-85720-00-00

Unavailable

39

BOLT, HEXAGON

97017-06020-00

Unavailable

40

WASHER, SPRING

92995-06100-00

Unavailable

41

WASHER, PLAIN (646)

92990-06600-00

Unavailable

42

SENDER, BATTERY

5G2-82120-00-00

Unavailable

43

SWITCH, SIDE STAND

5G2-82566-01-00

Unavailable

44

SCREW, FLAT

98707-05016-00

Unavailable

45

RECTIFIER 2

4H7-81980-M0-00

Unavailable

46

PLUG CAP ASSY

1J7-82370-00-00

Unavailable

46

PLUG CAP ASSEMBLY

2H8-82370-10-00

Unavailable

46

BAND

341-26397-01-00

Unavailable
