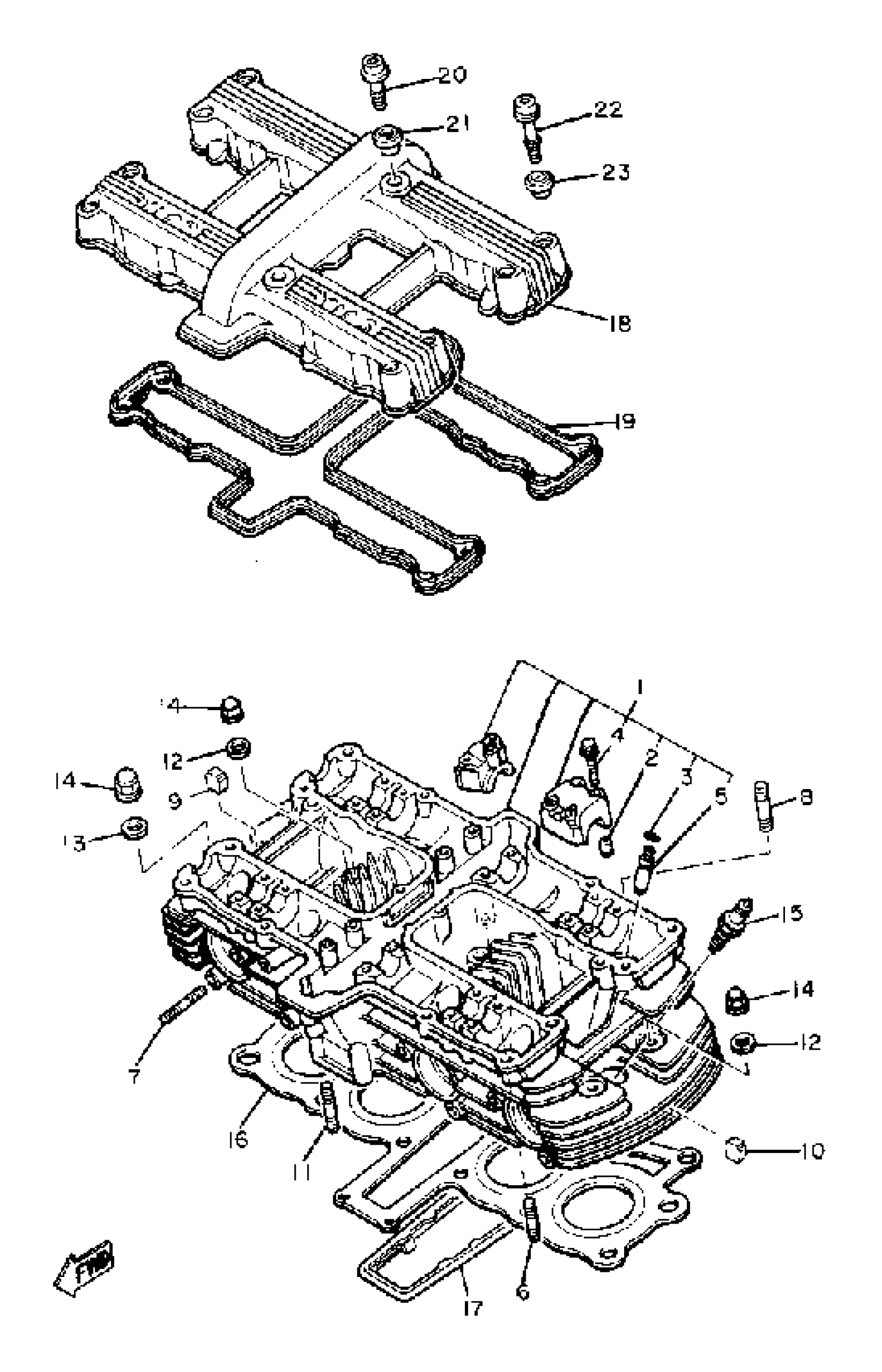

Yamaha XJ750RH (XJ750R) 1981 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSEMBLY

5G2-11101-00-00

Unavailable

2

PIN, DOWEL(3XW)

91808-16023-00

$8.49

3

CIRCLIP (1L9)

93440-12052-00

$2.44

4

BOLT, WASHER BASED (4H7)

90105-06153-00

$4.14

5

GUIDE, INTAKE VALVE

4H7-11133-11-00

$50.99

6

BOLT, STUD 3

95617-06625-00

$8.49

7

BOLT, STUD(1FW)

90116-06466-00

$4.51

8

BOLT, STUD 2

95617-08330-00

$10.49

9

ABSORBER

434-11161-00-00

Unavailable

10

ABSORBER 1

4H7-11161-00-00

$3.48

11

BOLT, STUD(1FW)

90116-06466-00

$4.51

12

GASKT KIT TE XJ750

(5G2-W0001-90-00)

Unavailable

12

WASHER PLATE 256111740000

90201-10131-00

$9.49

13

WASHER PLATE 341839090000

90201-10128-00

$4.82

14

NUT, CROWN(2GG)

90176-10075-00

$8.49

15

BPR7ES NGK - 4/PACK

BPR-7ES00-40-00

Unavailable

16

GASKET, CYL.HEAD 1

5G2-11181-10-00

Unavailable

17

SEAL, CYLINDER 1

5G2-11355-00-00

Unavailable

18

COVER, CYLINDER.HEAD 1

5G2-11191-00-00

Unavailable

19

GASKET, HEAD COVER 1

5G2-11193-00-00

Unavailable

20

BOLT (4V8)

90109-06604-00

Unavailable

21

RUBBER, MOUNT 1

4G0-1111G-00-00

Unavailable

22

BOLT

90109-06597-00

Unavailable

23

RUBBER, MOUNT 2

4U8-1112G-00-00

Unavailable
