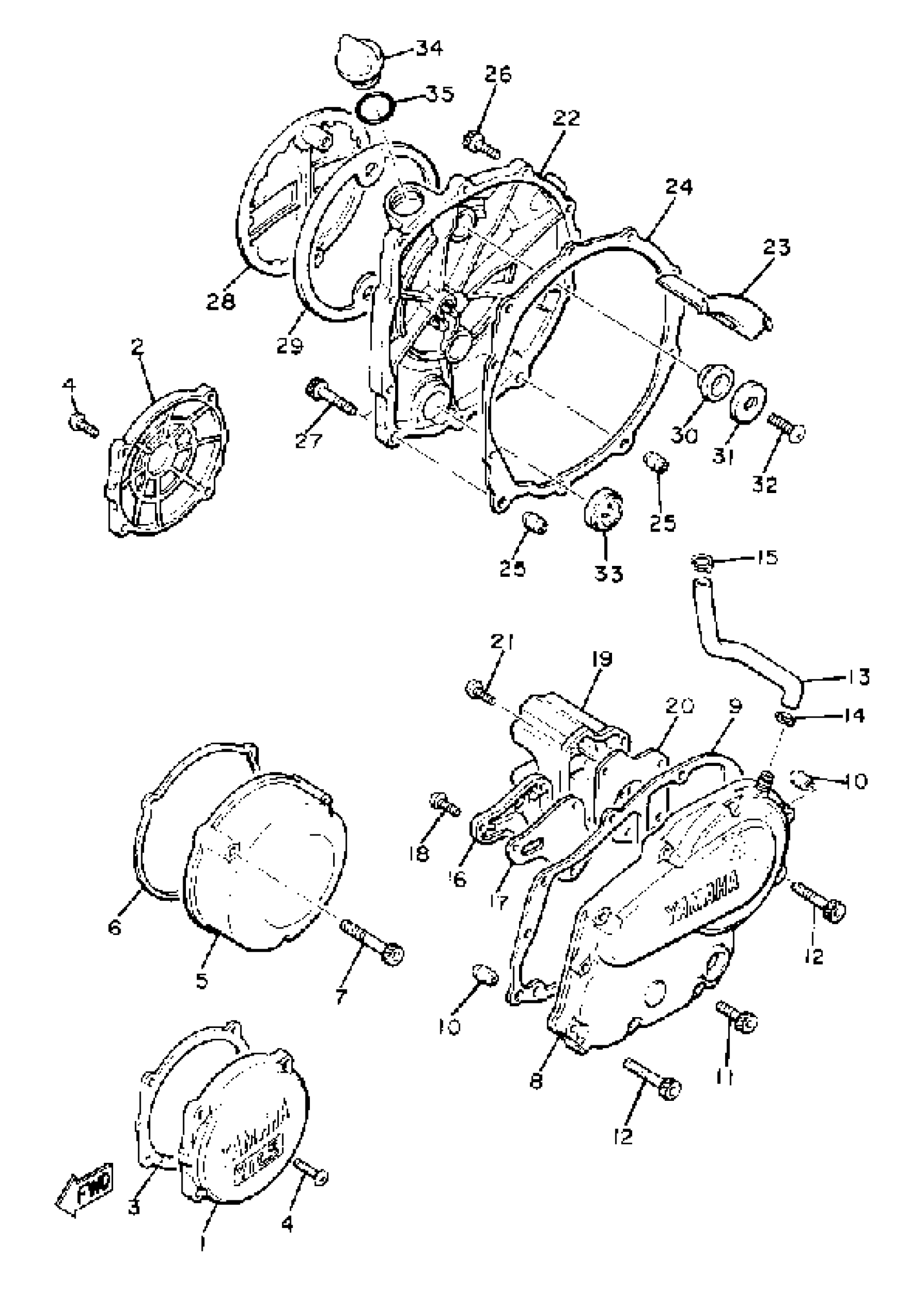

Yamaha XJ750RH (XJ750R) 1981 CRANKCASE COVER Diagram

#

Description
Price

1

COVER, OIL PUMP

4U8-15416-01-00

Unavailable

2

COVER, OIL PUMP R

4U8-15426-01-00

Unavailable

3

GASKET, OIL PUMP COVER 1

4BB-15456-00-00

$11.99

4

SCREW, BIND (J17)

98980-06020-00

$8.49

5

COVER, GENERATOR

4H7-15415-00-00

Unavailable

6

GASKET 1

4BB-15455-00-00

$27.99

7

BOLT, SOCKET

91314-06070-00

$8.49

8

CRANKCASE COVER ASSY

5G2-15409-00-00

Unavailable

9

GASKET, CRANKCASE COVER 1

4BB-15451-00-00

$35.99

10

PIN, DOWEL(3VD)

99530-10114-00

$2.55

11

BOLT,SOCKET HEAD

91314-06025-00

$8.49

12

BOLT, SOCKET

91314-06040-00

$8.49

13

PIPE, BREATHER 1

5G2-11166-00-00

Unavailable

14

CLIP (371)

90467-14015-00

$8.49

15

CLIP

90468-08104-00

$3.93

16

BREATHER 1

(4H7-15346-00-00)

Unavailable

17

GASKET

4BB-15457-00-00

Unavailable

18

SCREW, PAN

98507-06014-00

Unavailable

19

BREATHER 2

4H7-15347-01-00

Unavailable

20

GASKET

4BB-15467-00-00

Unavailable

21

SCREW, PAN

98507-06014-00

Unavailable

22

COVER, CRANKCASE R

4H7-15421-02-00

Unavailable

23

COVER, OIL PUMP

4H7-15412-01-00

Unavailable

24

GASKET, CRANKCASE COVER 2

4BB-15461-00-00

Unavailable

25

PIN, DOWEL(3VD)

99530-10114-00

$2.55

26

BOLT,SOCKET HEAD

91314-06025-00

$8.49

27

BOLT, SOCKET

91314-06040-00

$8.49

28

COVER, CAP

5G2-15417-00-00

Unavailable

29

RING, RUBBER

4H7-15449-00-00

Unavailable

30

GROMMET

4H7-15486-00-00

Unavailable

31

WASHER (4H7)

90209-06096-00

Unavailable

32

SCREW, PAN

98507-06014-00

Unavailable

33

GAUGE, LEVEL

2H7-15361-00-00

Unavailable

34

PLUG, OIL

2H7-15363-00-00

Unavailable

35

O-RING(1KT)

93210-27778-00

Unavailable
