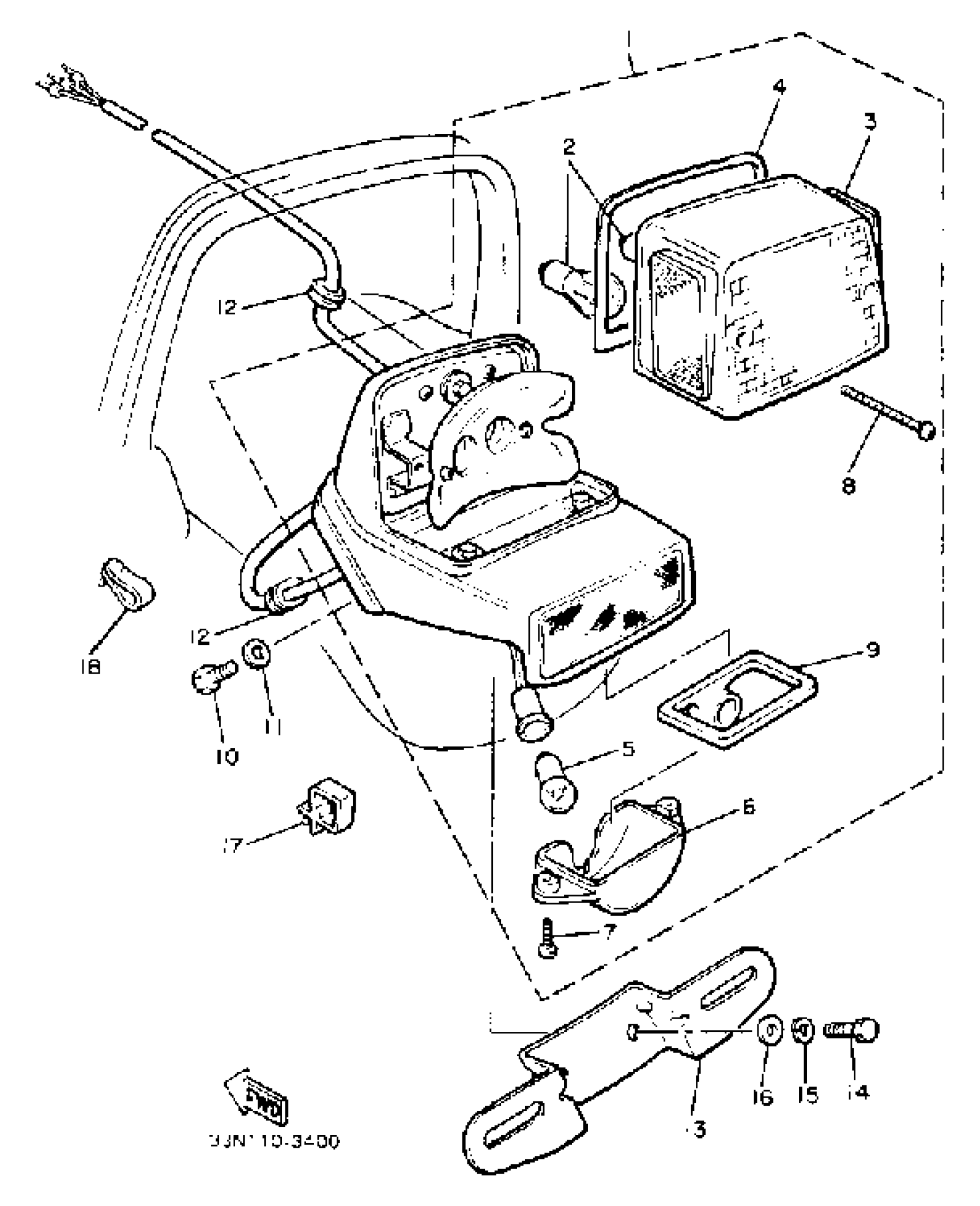

Yamaha XJ750MK (XJ750M) 1983 TAILLIGHT Diagram

#

Description
Price

1

TAILLIGHT ASSEMBLY

33N-84700-60-00

Unavailable

2

BULB, TAIL LAMP (12V 32/3CP)

256-84714-61-00

$11.99

3

. LENS, TAILLIGHT

5K5-84721-60-00

Unavailable

4

SEAL

3TJ-14457-00-00

Unavailable

5

BULB (12V 38W)

4H7-84744-00-00

Unavailable

6

LENS, LICENSE LIGHT

4H7-84743-00-00

Unavailable

7

SCREW, PAN HEAD(GA5)

98580-04014-00

$4.51

8

SCREW,PAN HEAD

98507-04085-00

Unavailable

9

. DAMPER

4H7-84753-60-00

Unavailable

10

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

11

WASHER, PLAIN (646)

92990-06600-00

$2.80

12

GROMMET (438)

90480-15061-00

$8.49

13

BRACKET, LICENSE

(5K5-84751-61-33)

Unavailable

14

BOLT, HEXAGON

97017-06016-00

$8.49

15

WASHER, SPRING

92907-06100-00

$4.25

16

WASHER(6TA)

92907-06600-00

Unavailable

17

CLAMP (1J7)

90464-16021-00

Unavailable

18

CLAMP (2H7)

90464-12027-00

Unavailable
