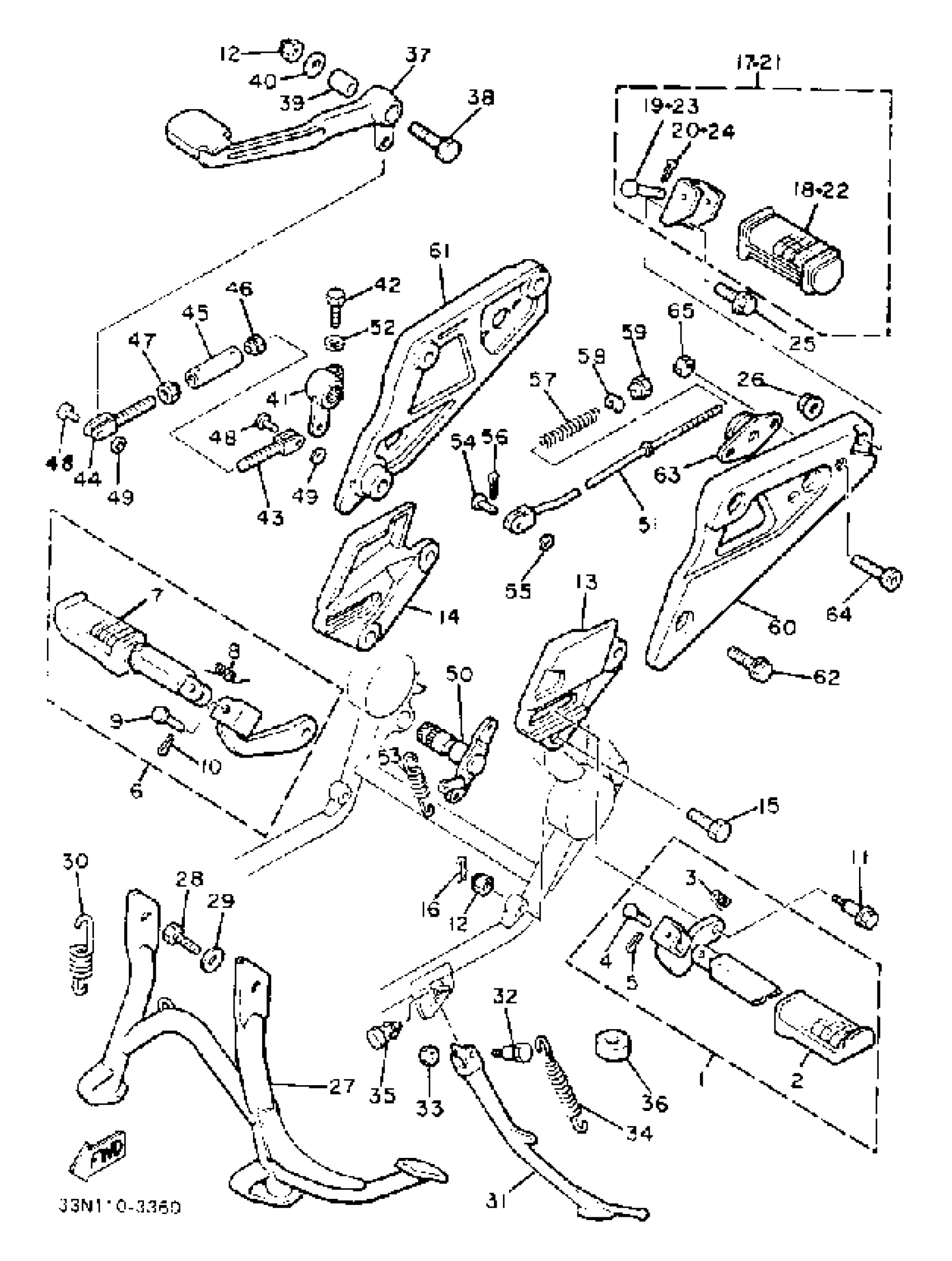

Yamaha XJ750MK (XJ750M) 1983 STAND FOOTREST Diagram

#

Description
Price

1

FRT FOOTREST ASSEMBLY LPLATED BK

33N-27410-00-5R

Unavailable

2

. COVER, FOOTREST

5G2-27413-00-00

Unavailable

3

. SPRING, TORSION

90508-20154-00

Unavailable

4

PIN, CLEVIS

(90240-08095-00)

Unavailable

5

PIN COTTER

91490-30025-00

$3.99

6

FRT FOOTREST ASSEMBLY RPLATED BK

33N-27420-00-5R

Unavailable

7

. COVER, FOOTREST

5G2-27413-00-00

Unavailable

8

SPRING TORSION 371274560000

90508-20155-00

$9.49

9

PIN, CLEVIS

(90240-08095-00)

Unavailable

10

PIN COTTER

91490-30025-00

$3.99

11

UNAVAILABLE IN PRICE BOOK

[90-10912-73-10

Unavailable

12

NUT, SELF-LOCKING

90185-12117-00

Unavailable

13

BRACKET 4

33N-2741L-00-00

Unavailable

14

UNAVAILABLE IN PRICE BOOK

[33-N2742-L0-00

Unavailable

15

BOLT, SOCKET

91317-10020-00

Unavailable

16

CLIP 136253750000

90468-12006-00

Unavailable

17

RR FOOTREST ASSEMBLY 1

33N-27430-00-00

Unavailable

18

. COVER, RR FOOTREST

5G2-27433-00-00

Unavailable

19

PIN, CLEVIS

(91706-06032-00)

Unavailable

20

PIN, COTTER

91490-20025-00

Unavailable

21

RR FOOTREST ASSEMBLY 2

33N-27440-00-00

Unavailable

22

. COVER, RR FOOTREST

5G2-27433-00-00

Unavailable

23

PIN, CLEVIS

(91706-06032-00)

Unavailable

24

PIN, COTTER

91490-20025-00

Unavailable

25

BOLT, FLANGE

95817-10035-00

Unavailable

26

NUT, FLANGE(8AB)

95707-10500-00

Unavailable

27

STAND, MAIN

15R-27111-00-R4

Unavailable

28

BOLT,HEXAGON

97017-10016-00

Unavailable

29

WASHER, PLATE (3J6)

90201-100A1-00

Unavailable

30

SPRING, TENSION

90506-40233-00

Unavailable

31

STAND, SIDE

5G2-27311-00-R4

Unavailable

32

BOLT

90109-10473-00

Unavailable

33

NUT (3WP1)

95317-10700-00

Unavailable

34

SPRING (460)

90507-29009-00

Unavailable

35

GUIDE, SIDE STAND

5G2-27351-00-00

Unavailable

36

STOPPER, MAIN STAND

116-27114-00-00

Unavailable

37

PEDAL, BRAKE

15R-27211-00-93

Unavailable

38

BOLT

90101-12583-00

Unavailable

39

COLLAR

15R-27213-00-00

Unavailable

40

WASHER

(92906-12200-00)

Unavailable

41

BOSS, BRAKE PEDAL

15R-27243-00-00

Unavailable

42

BOLT (1J7)

90109-06468-00

Unavailable

43

ROD 1

33N-27247-00-00

Unavailable

44

ROD 2

(33N-27248-00-00)

Unavailable

45

NUT, ADJUSTING

15R-27238-00-00

Unavailable

46

NUT, HEXAGON

(90170-08316-00)

Unavailable

47

NUT, HEXAGON

90170-08315-00

Unavailable

48

PIN

90243-06024-00

Unavailable

49

WASHER(6TA)

92907-06200-00

Unavailable

50

UNAVAILABLE IN PRICE BOOK

[33-N2721-20-00

Unavailable

51

ROD, BRAKE

33N-27231-00-00

Unavailable

52

WASHER, SPRING

92995-06100-00

Unavailable

53

SPRING, TENSION

90506-20291-00

Unavailable

54

UNAVAILABLE IN PRICE BOOK

[90-24008-10-40

Unavailable

55

WASHER, PLATE 1562722600

90201-08083-00

Unavailable

56

PIN, COTTER

91490-20025-00

Unavailable

57

SPRING, COMPRESSION

90501-10609-00

Unavailable

58

PIN, SPEC''L SHAPE

90249-12150-00

Unavailable

59

NUT, SPEC''L SHAPE

90179-06324-00

Unavailable

60

BRACKET 2

33N-27442-00-00

Unavailable

61

BRACKET 3

(33N-27443-00-00)

Unavailable

62

BOLT, SOCKET

91317-10030-00

Unavailable

63

DAMPER, FOOTREST

22R-27414-00-00

Unavailable

64

BOLT,SOCKET

91317-06020-00

Unavailable

65

NUT(6TA)

95317-06600-00

Unavailable
