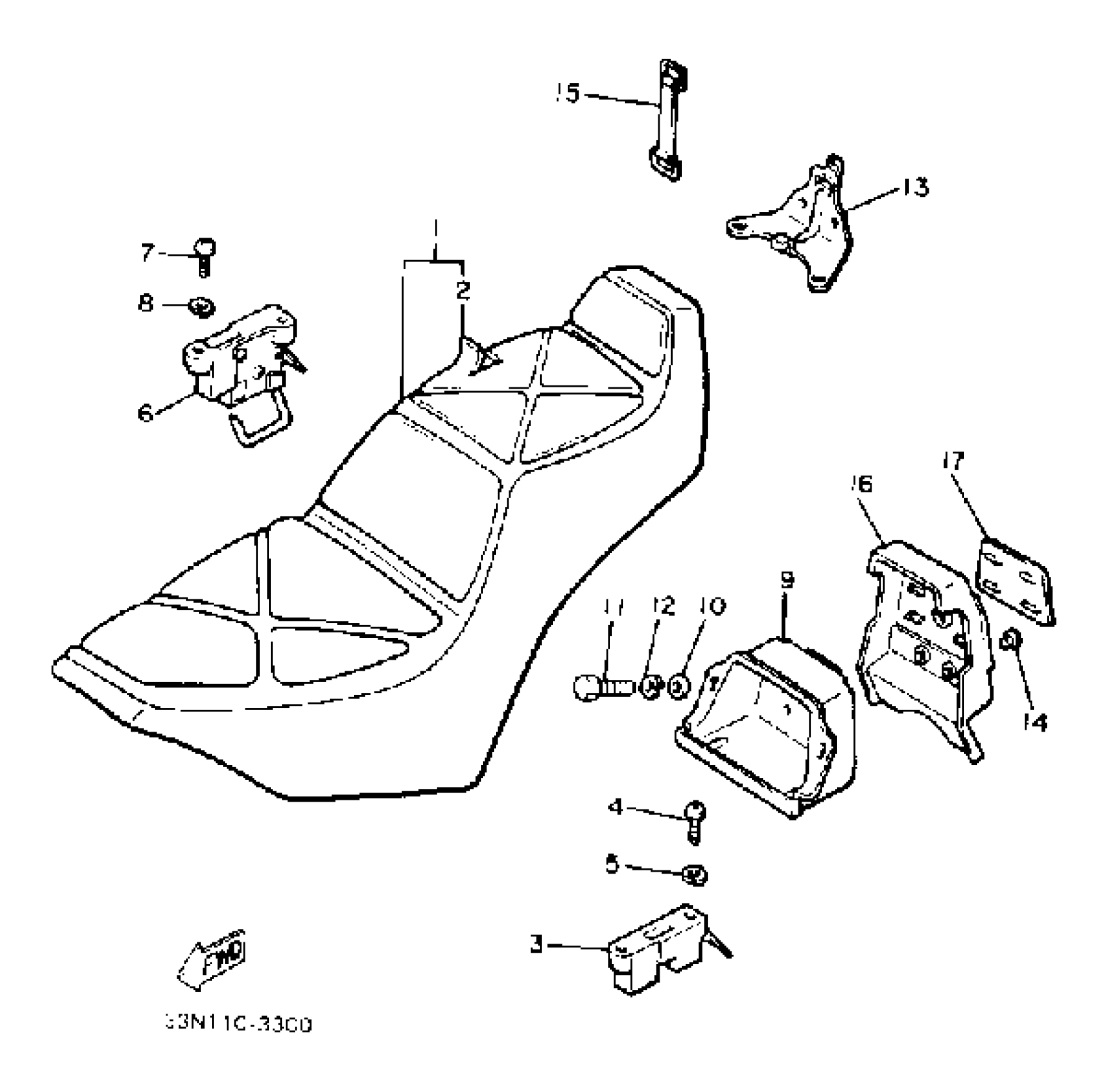

Yamaha XJ750MK (XJ750M) 1983 SEAT Diagram

#

Description
Price

1

DOUBLE SEAT ASSEMBLY

(33N-24730-00-00)

Unavailable

2

COVER, SEAT

(33N-W2478-00-00)

Unavailable

3

SEAT LEVER ASSEMBLY

4L0-24760-00-00

Unavailable

4

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

5

WASHER, SPRING

92995-06100-00

Unavailable

6

SEAT LOCK ASSEMBLY

4L0-24705-00-00

Unavailable

7

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

8

WASHER, SPRING

92995-06100-00

Unavailable

9

BOX 1

15R-2473R-00-00

Unavailable

10

WASHER, PLATE

90201-06020-00

$9.49

11

BOLT(3DM)

97024-06020-00

$8.49

12

WASHER, SPRING

92995-06100-00

Unavailable

13

BRACKET, SEAT LVR 1

15R-2475H-00-00

Unavailable

14

SCREW, BINDING

90154-06015-00

Unavailable

15

BAND, BATTERY

116-82131-00-00

$31.99

16

COVER, TAIL

33N-24756-00-00

Unavailable

17

EMBLEM

33N-24786-00-00

Unavailable
