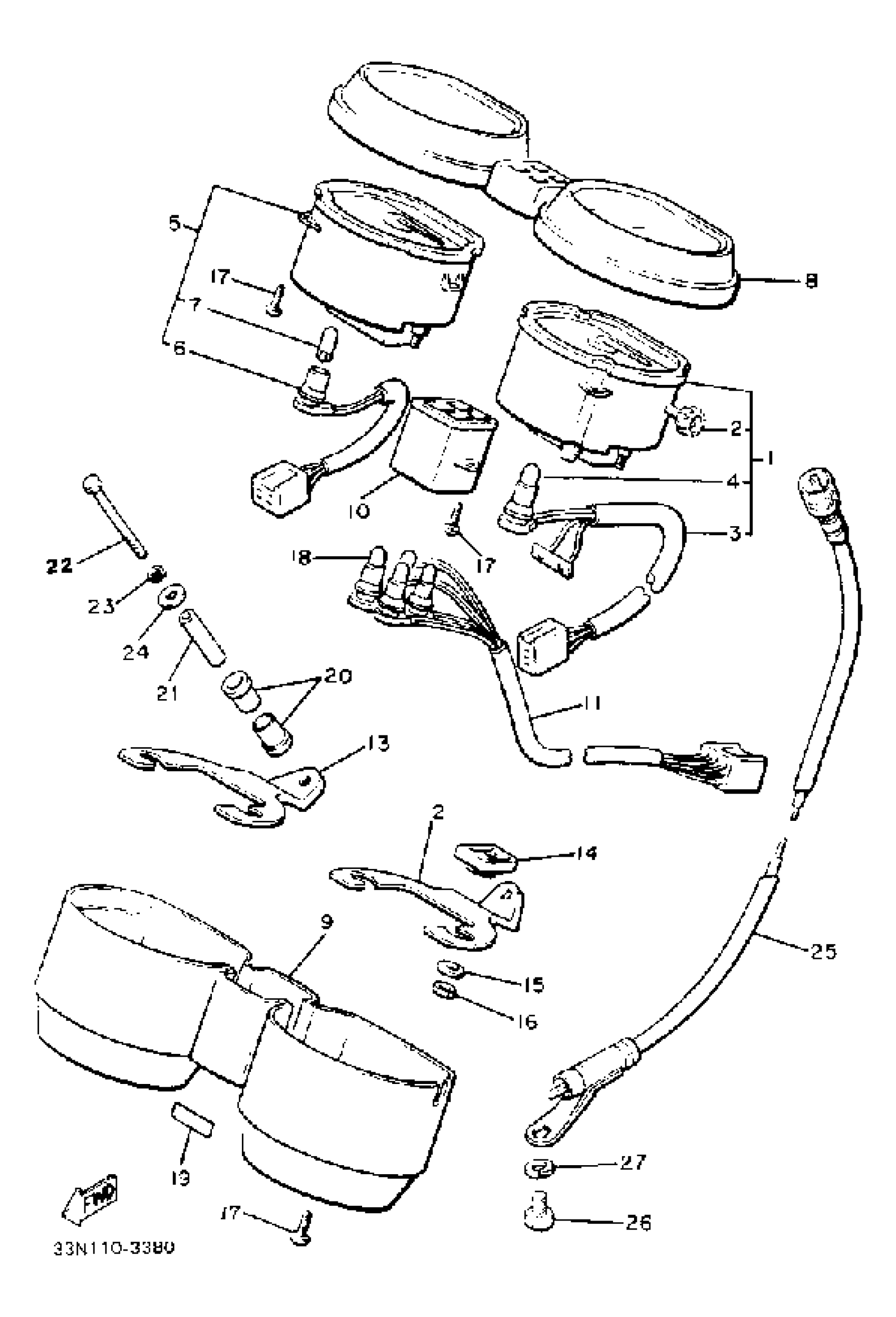

Yamaha XJ750MK (XJ750M) 1983 METER Diagram
#
Description
Price
1
SPEEDOMETER ASSEMBLY
5K5-83570-A0-00
Unavailable
2
. KNOB, TRIP METER
4U8-83578-00-00
Unavailable
3
. SOCKET CORD ASSY
10M-83520-20-00
Unavailable
4
BULB, MTR.12V3.4W
4G1-84744-00-XX
Unavailable
5
TACHOMETER ASSEMBLY
5N8-83540-00-00
Unavailable
6
. SOCKET CORD ASSEMBLY
5N8-83520-00-00
Unavailable
7
BULB, MTR.12V3.4W
4G1-84744-00-XX
Unavailable
8
COVER, METER
4H7-83559-A0-00
Unavailable
9
COVER, METER 2
4W5-83579-00-00
Unavailable
10
BODY, PILOT LIGHT
4H7-83587-00-00
Unavailable
11
SOCKET CORD ASSEMBLY
5K5-83509-00-00
Unavailable
12
BRACKET, METER
4H7-83519-00-00
Unavailable
13
BRACKET, TACHOMETER
4H7-83545-00-00
Unavailable
14
DAMPER
4H7-83523-00-00
Unavailable
15
WASHER PLATE 803835240000
90201-05032-00
Unavailable
16
NUT, HEXAGON (663)
95380-05600-00
Unavailable
17
SCREW, TAPPING
4H7-83616-00-00
Unavailable
18
BULB, MTR.12V3.4W
4G1-84744-00-XX
Unavailable
19
EMBLEM 7
4W5-21787-00-00
Unavailable
20
DAMPER, METER BRACKET
584-83541-00-00
Unavailable
21
COLLAR (877)
90387-06249-00
Unavailable
22
BOLT, HEXAGON
97017-06045-00
Unavailable
23
WASHER, SPRING
92907-06100-00
Unavailable
24
WASHER, PLATE
90201-06380-00
Unavailable
25
SPEEDOMETER CABLE
5K5-83550-00-00
Unavailable
26
SCREW, HEXAGON
90153-06004-00
Unavailable
27
WASHER, SPRING
92995-06100-00
Unavailable
