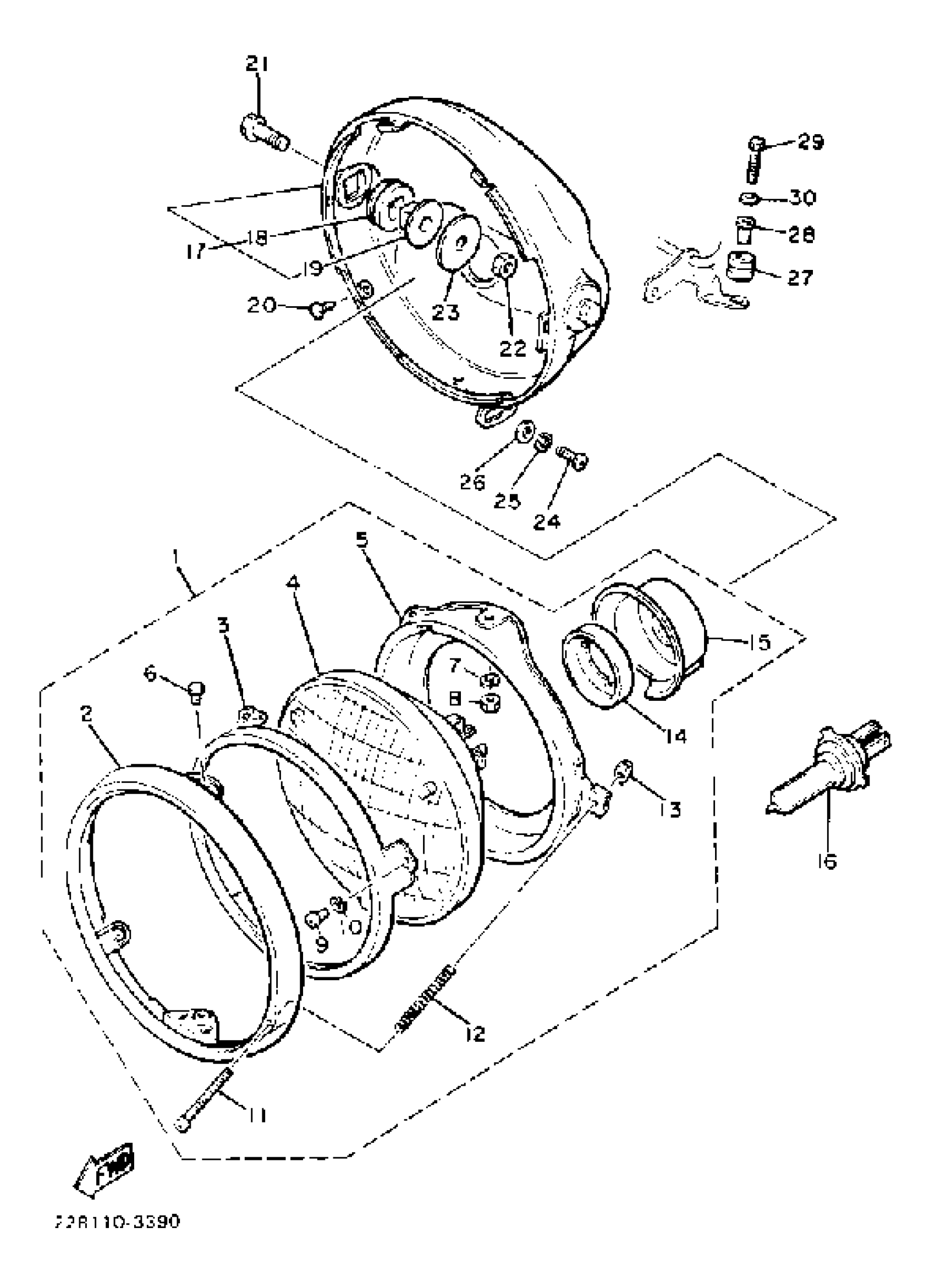

Yamaha XJ750MK (XJ750M) 1983 HEADLIGHT Diagram

#

Description
Price

1

HEADLIGHT UNIT ASSEMBLY

4H1-84303-A0-00

Unavailable

2

RIM, HEAD LAMP

341-84315-40-00

$142.99

3

RING, RETAINING

2F9-84395-00-00

$58.99

4

LENS ASSY

2F3-84321-A0-00

Unavailable

5

RING, MOUNTING

2F9-84394-00-00

Unavailable

6

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

7

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

9

NUT, HEXAGON (663)

95380-05600-00

$8.49

9

SCREW, PAN HEAD (713)

98580-04008-00

$5.60

10

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

11

SCREW, PANHEAD (4G7)

98580-04055-00

Unavailable

12

SPRING, ADJUST

341-84332-60-00

$9.99

13

NUT, ADJUST

198-84334-60-00

$7.99

14

SETTING PLATE, BULB

2F9-84375-00-00

Unavailable

15

COVER, SOCKET

2F9-84397-01-00

$30.99

16

BULB, HEADLIGHT

8V0-84314-10-00

Unavailable

17

BODY ASSEMBLY

4H1-84330-00-00

Unavailable

18

DAMPER, HEAD LAMP

584-84345-60-00

Unavailable

19

COLLAR 2

584-84338-60-00

Unavailable

20

SCREW, OVAL HEAD (1A0)

90152-05005-00

Unavailable

21

BOLT, SMALL FLANGE

95027-08030-00

Unavailable

22

NUT(6L2)

95333-08600-00

Unavailable

23

WASHER, PLATE (5J0)

90201-085E6-00

Unavailable

24

SCREW, PAN HEAD(3TJ)

98507-06016-00

Unavailable

25

WASHER, SPRING

92907-06100-00

Unavailable

26

WASHER, PLATE(36Y)

90201-063J2-00

Unavailable

27

GROMMET 839774310000

90480-14023-00

Unavailable

28

COLLAR

90387-06158-00

Unavailable

29

BOLT, HEXAGON

97017-06025-00

Unavailable

30

WASHER(6TA)

92907-06600-00

Unavailable
