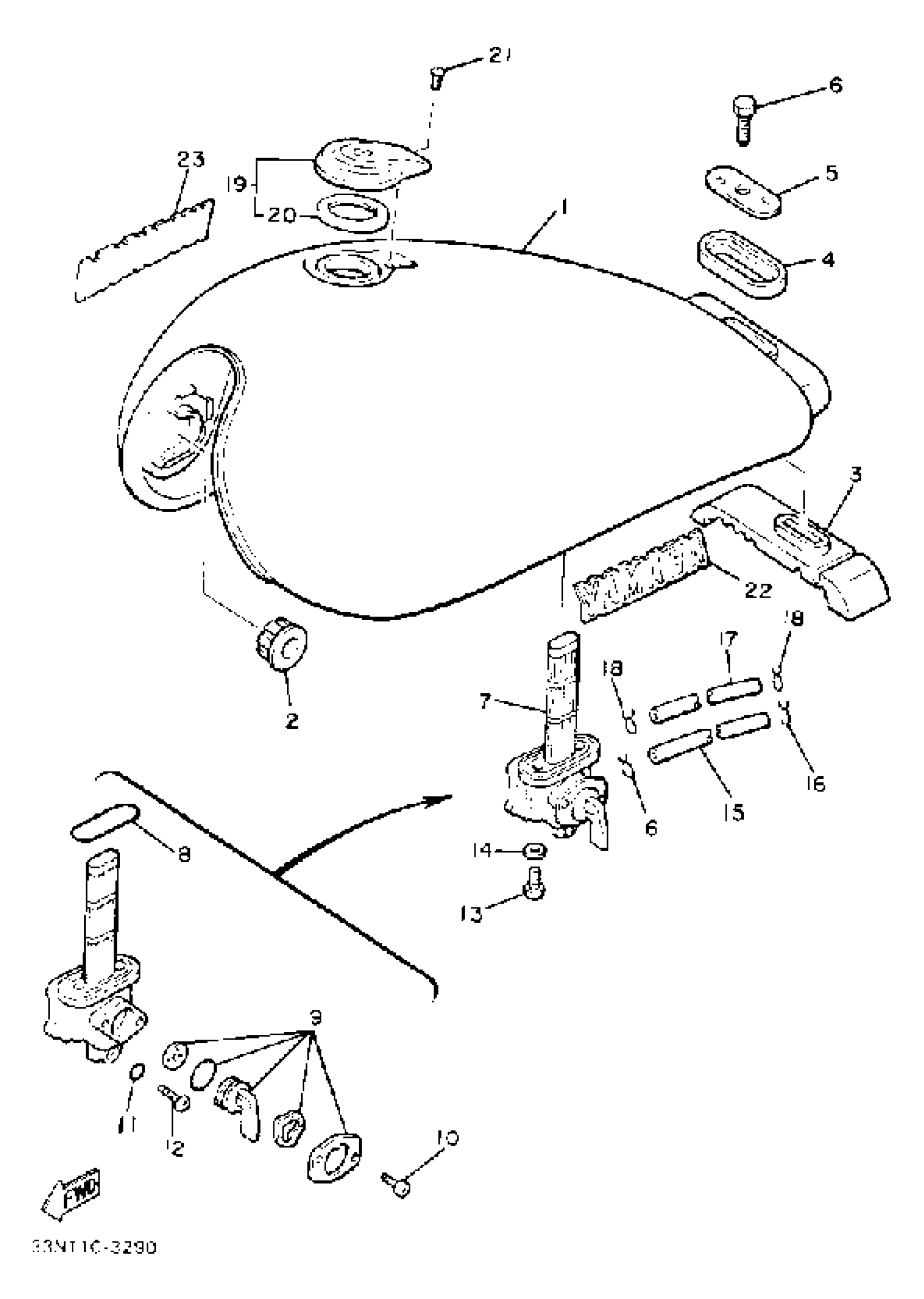

Yamaha XJ750MK (XJ750M) 1983 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK (NEW WHITE)

22R-24110-00-6G

Unavailable

2

DAMPER, LOCATING

4H7-24181-00-00

$6.99

3

DAMPER, LOCATING 2

(15R-24182-00-00)

Unavailable

4

DAMPER, LOCATING 3

4H7-24183-00-00

Unavailable

5

WASHER, SPECIAL

4H7-24186-00-00

Unavailable

6

BOLT(62E)

97013-08012-00

Unavailable

7

FUEL COCK ASSY 1

33M-24500-00-00

$244.99

8

O-RING

2W6-24512-00-00

$7.99

9

FUEL COCK VALVE SET

10L-W0092-00-00

$29.99

10

SCREW, PAN HEAD(3AC)

98517-03008-00

$2.97

11

GASKET, DRAIN PLUG

2G2-24522-00-00

$6.99

12

SCREW, PAN

98517-06008-00

$8.49

13

SCREW, PAN HEAD

90157-06018-00

Unavailable

14

WASHER, PLATE(3MB)

90202-05187-00

$1.38

15

PIPE, FUEL 1

5G2-24311-00-00

Unavailable

16

CLIP

90467-100A1-00

Unavailable

17

HOSE (L770)

90445-090G9-00

Unavailable

18

CLIP (16G)

90467-08021-00

Unavailable

19

CAP ASSY

4X7-24602-10-00

Unavailable

20

GASKET, TANK CAP

4X7-24612-00-00

Unavailable

21

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

22

EMBLEM 1

5G2-24161-00-00

Unavailable

23

EMBLEM 2

5G2-24162-00-00

Unavailable
