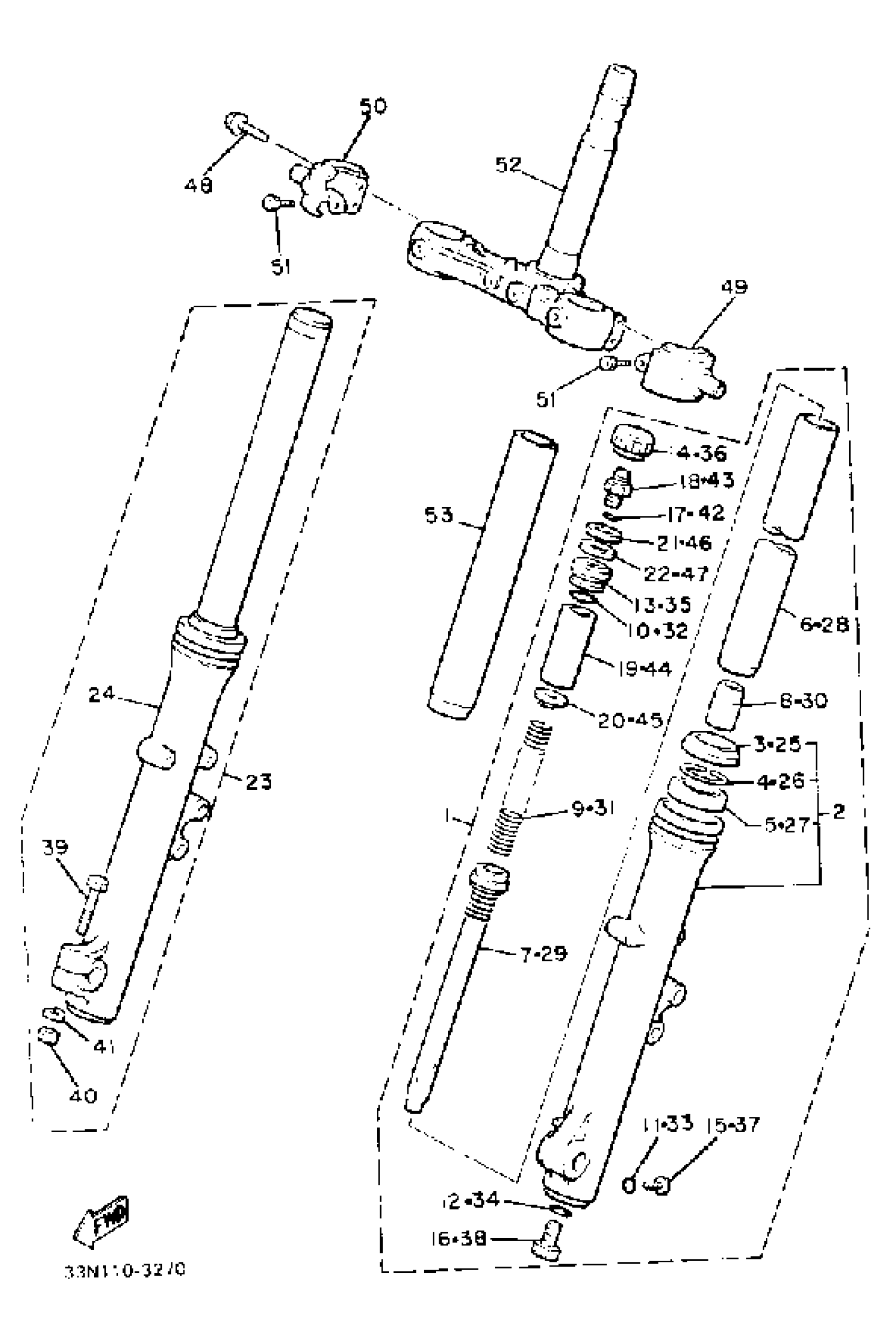

Yamaha XJ750MK (XJ750M) 1983 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASSEMBLY L

(33N-23102-00-00)

Unavailable

2

. TUBE, OUTER 1

33N-23126-00-00

Unavailable

3

SEAL, DUST

33M-23144-00-00

$28.99

4

RING, SNAP

4A1-23156-00-00

$5.49

5

OIL SEAL

4ES-23145-00-00

$22.99

6

. UNAVAILABLE IN PRICE BOOK

22R-21311-00-00

Unavailable

7

. CYLINDER, FRTFRKFRONT FORK

4H7-23170-00-00

Unavailable

8

TAPER SPINDLE

1W1-23173-L0-00

$31.99

9

SPRING, FRONT FORK

(5N8-23141-00-00)

Unavailable

10

GASKET

240-23114-00-00

$13.49

11

GASKET, DRAIN PLUG

122-23129-00-00

$7.99

12

GASKET

509-23158-L0-00

$16.49

13

. BOLT, CAP

20X-23111-00-00

Unavailable

14

. CAP, FRONT FORK

4X7-23168-00-00

Unavailable

15

PLUG, DRAIN

(4W5-23119-00-00)

Unavailable

16

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

Unavailable

17

O-RING

3J2-23147-00-00

Unavailable

18

AIR VALVE COMP.

4V4-23190-L0-00

Unavailable

19

SPACER

5N8-23118-00-00

Unavailable

20

. SEAT, SPRING UPPER

583-23142-00-00

Unavailable

21

WASHER

2H7-23163-00-00

Unavailable

22

GUIDE, COVER UPPER

(4W5-23115-00-00)

Unavailable

23

UNAVAILABLE IN PRICE BOOK

[33-N2310-30-00

Unavailable

24

. TUBE, OUTER 2

33N-23136-00-00

Unavailable

25

SEAL, DUST

33M-23144-00-00

$28.99

26

RING, SNAP

4A1-23156-00-00

$5.49

27

OIL SEAL

4ES-23145-00-00

$22.99

28

. INNER TUBE 1

22R-23110-00-00

Unavailable

29

. CYLINDER, FRTFRKFRONT FORK

4H7-23170-00-00

Unavailable

30

TAPER SPINDLE

1W1-23173-L0-00

$31.99

31

SPRING, FRONT FORK

(5N8-23141-00-00)

Unavailable

32

GASKET

240-23114-00-00

$13.49

33

GASKET, DRAIN PLUG

122-23129-00-00

$7.99

34

GASKET

509-23158-L0-00

$16.49

35

. BOLT, CAP

20X-23111-00-00

Unavailable

36

. CAP, FRONT FORK

4X7-23168-00-00

Unavailable

37

PLUG, DRAIN

(4W5-23119-00-00)

Unavailable

38

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

Unavailable

39

BOLT(3HN)

97017-08045-00

Unavailable

40

NUT(6TA)

95337-08600-00

Unavailable

41

WASHER(JN5)

92907-08100-00

Unavailable

42

O-RING

3J2-23147-00-00

Unavailable

43

. UNAVAILABLE IN PRICE BOOK (3J2-23190-00)

3J2-23190-L0-00

Unavailable

44

SPACER

5N8-23118-00-00

Unavailable

45

. SEAT, SPRING UPPER

583-23142-00-00

Unavailable

46

WASHER

2H7-23163-00-00

Unavailable

47

GUIDE, COVER UPPER

(4W5-23115-00-00)

Unavailable

48

BOLT, AXLE HOLDER

18G-23128-00-00

Unavailable

49

COVER, OUTER 1

(4W5-23122-00-6G)

Unavailable

50

COVER, OUTER 2

(4W5-23132-00-6G)

Unavailable

51

. BOLT, HEX SCKT HEAD

4H7-23181-00-00

Unavailable

52

. UNDER BRACKET

5N8-23340-00-33

Unavailable

53

COVER, UPPER 2

(4W5-23131-00-6G)

Unavailable
