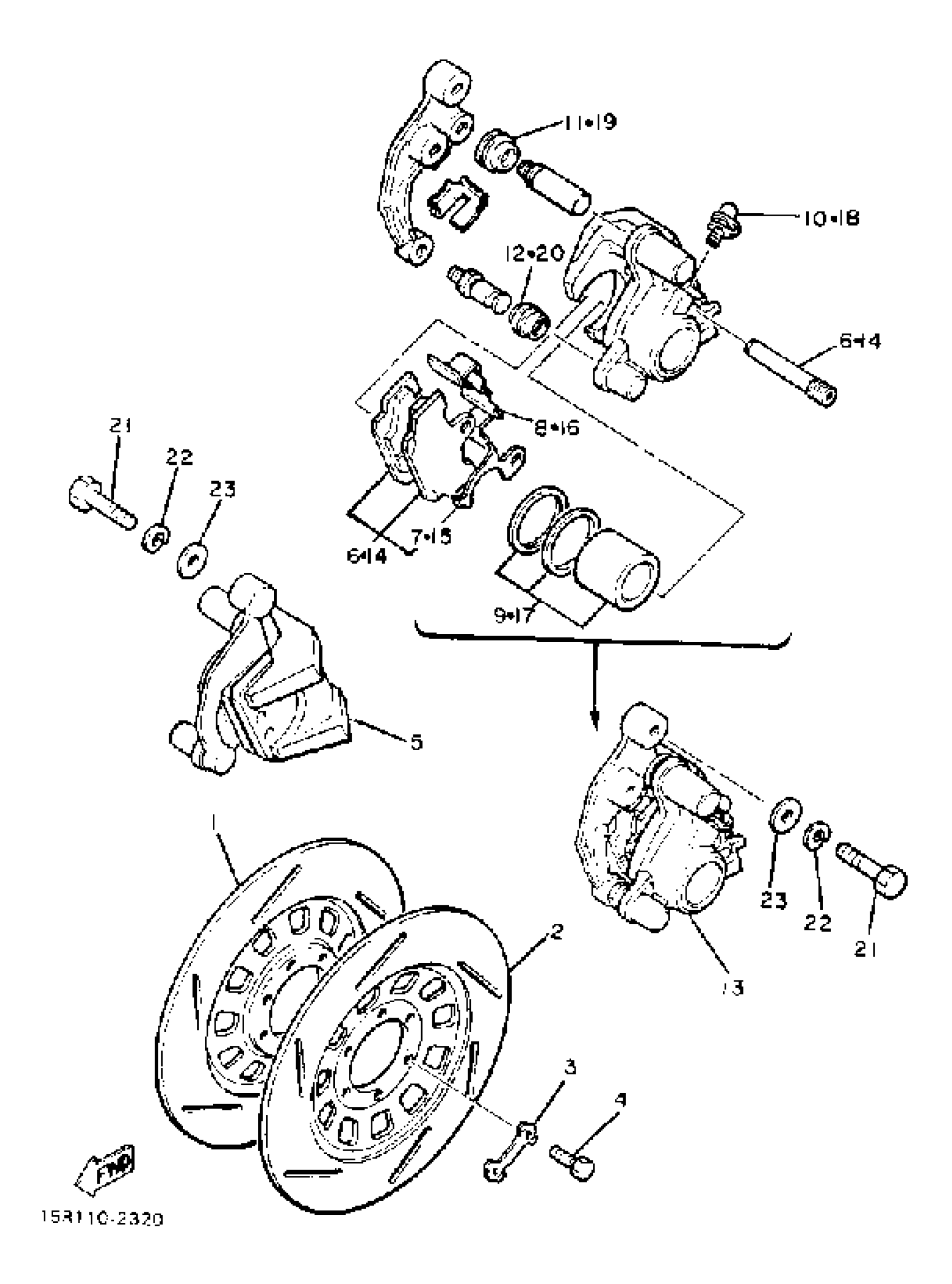

Yamaha XJ750MK (XJ750M) 1983 FRONT BRAKE CALIPER Diagram

#

Description
Price

1

DISC, BRAKE

5G9-25831-00-00

Unavailable

2

DISC, BRAKE

23W-25831-10-00

Unavailable

3

WASHER, LOCK

1J3-25834-01-00

$6.99

4

BOLT, HEXAGON (1L9)

90101-08312-00

$9.49

5

CALIPER ASSY (RIGHT)

4JF-2580U-00-00

Unavailable

6

BRAKE PAD KIT

43F-W0045-01-00

Unavailable

7

. SHIM, CALIPER

11U-25827-00-00

Unavailable

8

PAD SPRING, CALIPER

11H-25919-00-00

Unavailable

9

PISTON ASSY, CALIPER

4X8-W0057-00-00

$139.99

10

BLEED SCREW KIT

15B-W0048-00-00

$19.99

11

BOOT

4X8-25917-00-00

Unavailable

12

BOOT 2

5R2-25937-00-00

$37.99

13

CALIPER ASSEMBLY (LEFT) (11H-25810-10) (LEFT)

29L-2580T-00-00

Unavailable

14

BRAKE PAD KIT

43F-W0045-01-00

Unavailable

15

. SHIM, CALIPER

11U-25827-10-00

Unavailable

16

PAD SPRING, CALIPER

11H-25919-00-00

Unavailable

17

PISTON ASSY, CALIPER

4X8-W0057-00-00

$139.99

18

BLEED SCREW KIT

15B-W0048-00-00

$19.99

19

BOOT

4X8-25917-00-00

Unavailable

20

BOOT 2

5R2-25937-00-00

$37.99

21

BOLT (1J3)

90101-10308-00

Unavailable

22

WASHER(6TA)

92907-10100-00

Unavailable

23

WASHER, PLAIN(3BM)

92907-10200-00

Unavailable
