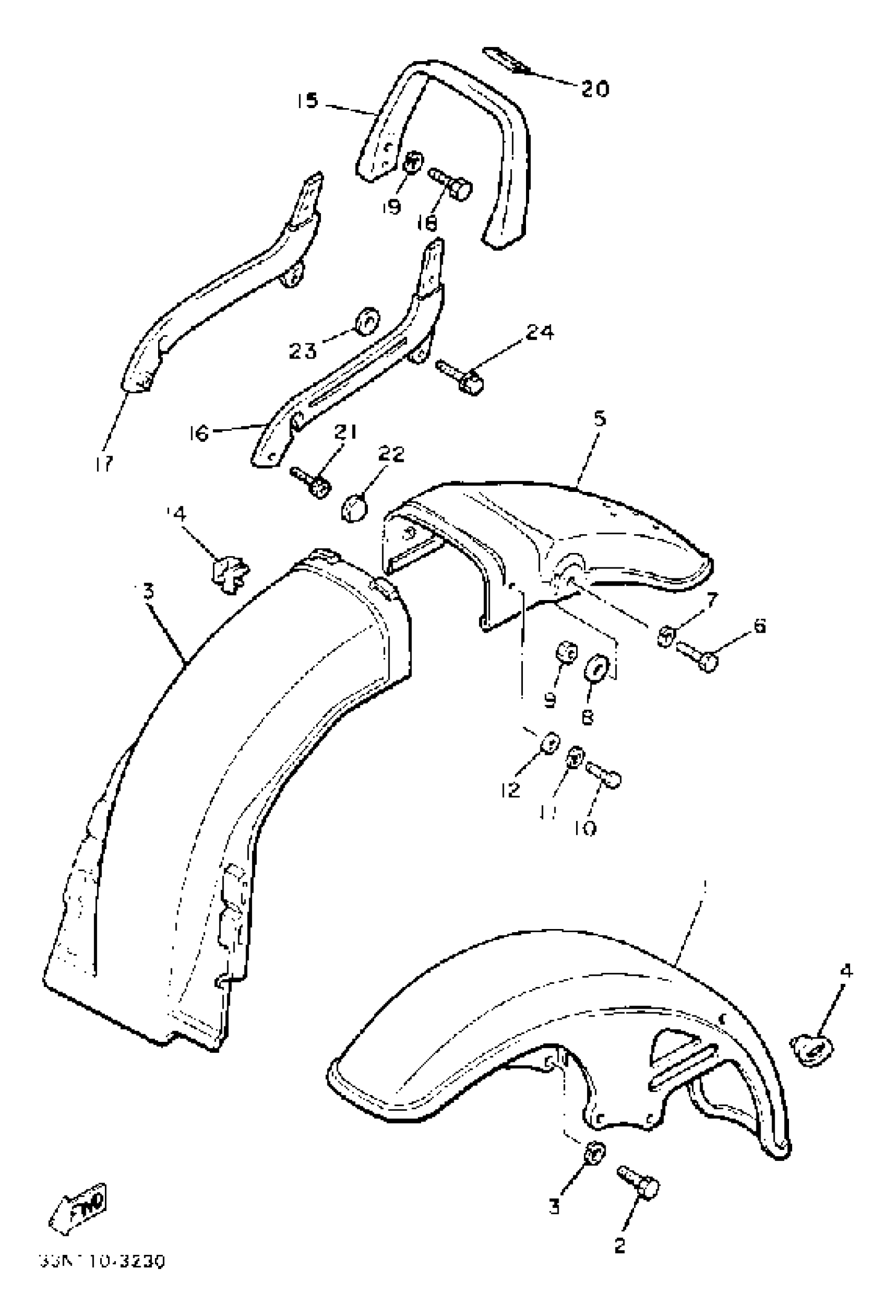

Yamaha XJ750MK (XJ750M) 1983 FENDER Diagram

#

Description
Price

1

FENDER, FRONT

24M-21510-00-6G

Unavailable

2

BOLT, HEXAGON

97013-08020-00

$1.16

3

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

4

HOLDER, WIRE

1A0-21518-00-00

Unavailable

5

FENDER, REARBLACK (NEW WHITE)

33N-21610-00-6G

Unavailable

6

BOLT, HEXAGON

97017-08020-00

$9.49

7

WASHER(JN5)

92907-08100-00

$8.49

8

WASHER, PLAIN

92990-08200-00

Unavailable

9

NUT(6L2)

95333-08600-00

$2.49

10

BOLT, HEXAGON

97017-06012-00

$3.76

11

WASHER, SPRING

92907-06100-00

$4.25

12

WASHER(6TA)

92907-06600-00

$2.72

13

GUARD, MUD

15R-21629-00-00

Unavailable

14

CLAMP (1J7)

90464-16021-00

$12.49

15

GRIP 1

15R-2164A-00-00

Unavailable

16

STAY 1

33N-2164F-00-00

Unavailable

17

STAY 2

33N-2164G-00-00

Unavailable

18

BOLT, HEXAGON

97013-08016-00

Unavailable

19

WASHER(JN5)

92907-08100-00

$8.49

20

EMBLEM 7

(33N-21787-00-00)

Unavailable

21

BOLT, SOCKET

91314-08035-00

Unavailable

22

CAP, BOLT (371,447)

341-23469-00-00

Unavailable

23

WASHER, PLATE (10M)

90201-090F4-00

Unavailable

24

BOLT, FLANGE(4LN)

95817-08025-00

Unavailable
