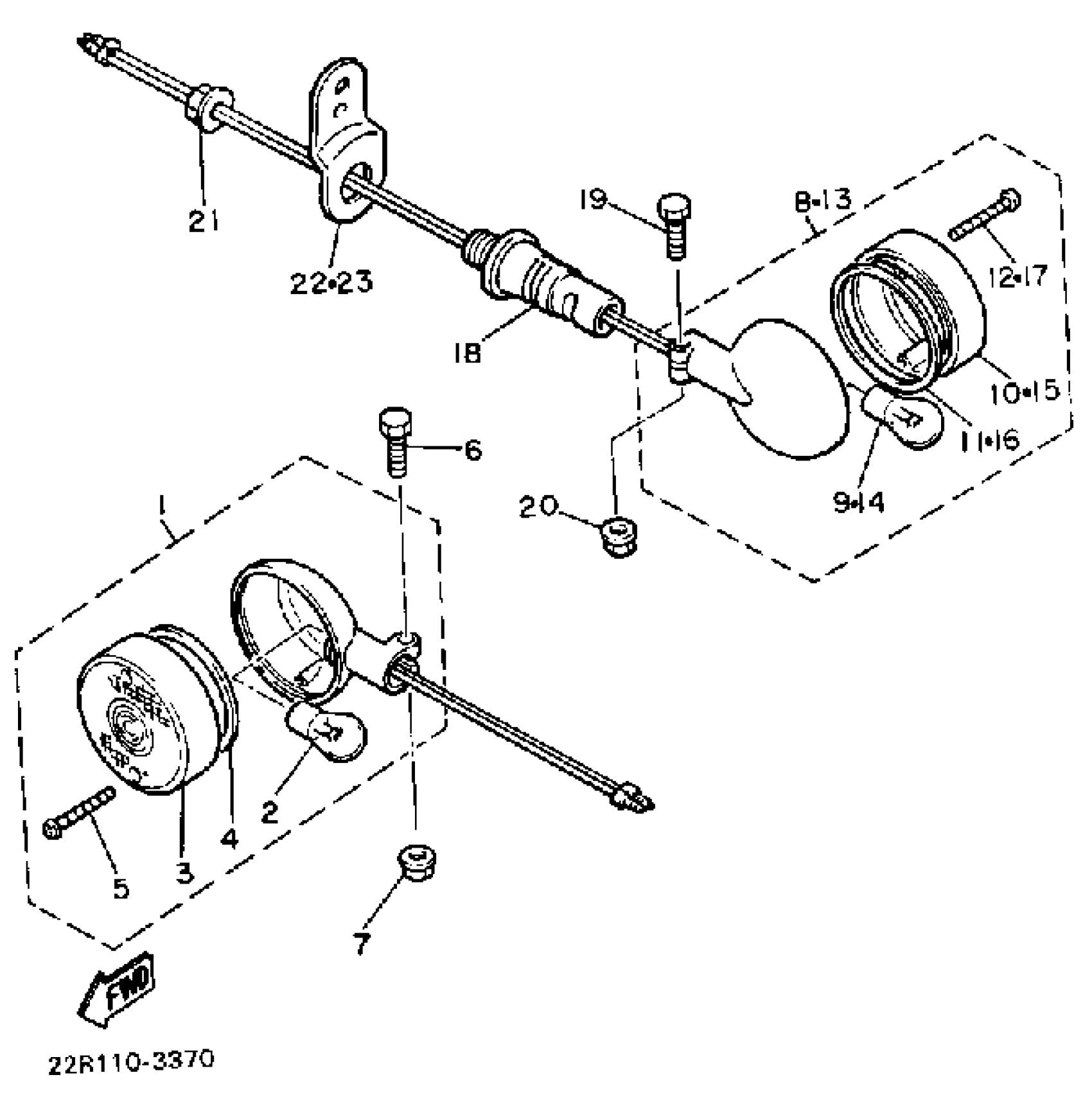

Yamaha XJ750K (XJ750) 1983 TURNSIGNAL Diagram

#

Description
Price

1

R FLSHR LITE ASSEMBLYASSY 1

4H7-83330-K0-00

Unavailable

2

. BULB (12V-32CP)

256-83311-70-XX

Unavailable

3

LENS, FLASHER

4H7-83312-00-00

Unavailable

4

GASKET, FLASHER LENS

1D6-83313-00-00

$6.99

5

SCREW, PAN HEAD

98502-03530-00

$4.29

6

BOLT, HEXAGON

97017-06030-00

$3.61

7

NUT, FLANGE(7NB)

95780-06500-00

$2.60

8

REAR FLASHER LIGHT ASSY

5K5-83330-K0-00

Unavailable

9

. BULB (12V-32CP)

256-83311-70-XX

Unavailable

10

LENS, FLASHER

4H7-83312-00-00

Unavailable

11

GASKET, FLASHER LENS

1D6-83313-00-00

$6.99

12

SCREW, PAN HEAD

98502-03530-00

$4.29

13

REAR FLASHER LIGHT ASSY

5K5-83330-K0-00

Unavailable

14

. BULB (12V-32CP)

256-83311-70-XX

Unavailable

15

LENS, FLASHER

4H7-83312-00-00

Unavailable

16

GASKET, FLASHER LENS

1D6-83313-00-00

$6.99

17

SCREW, PAN HEAD

98502-03530-00

$4.29

18

STAY, FLASHER 1

1AA-83318-00-00

Unavailable

19

BOLT, HEXAGON

97017-06030-00

$3.61

20

NUT, FLANGE(7NB)

95780-06500-00

$2.60

21

NUT(3GG)

90179-12588-00

Unavailable

22

STAY, FLASHER

15R-83368-00-00

Unavailable

23

STAY, FLASHER

15R-83369-00-00

Unavailable
