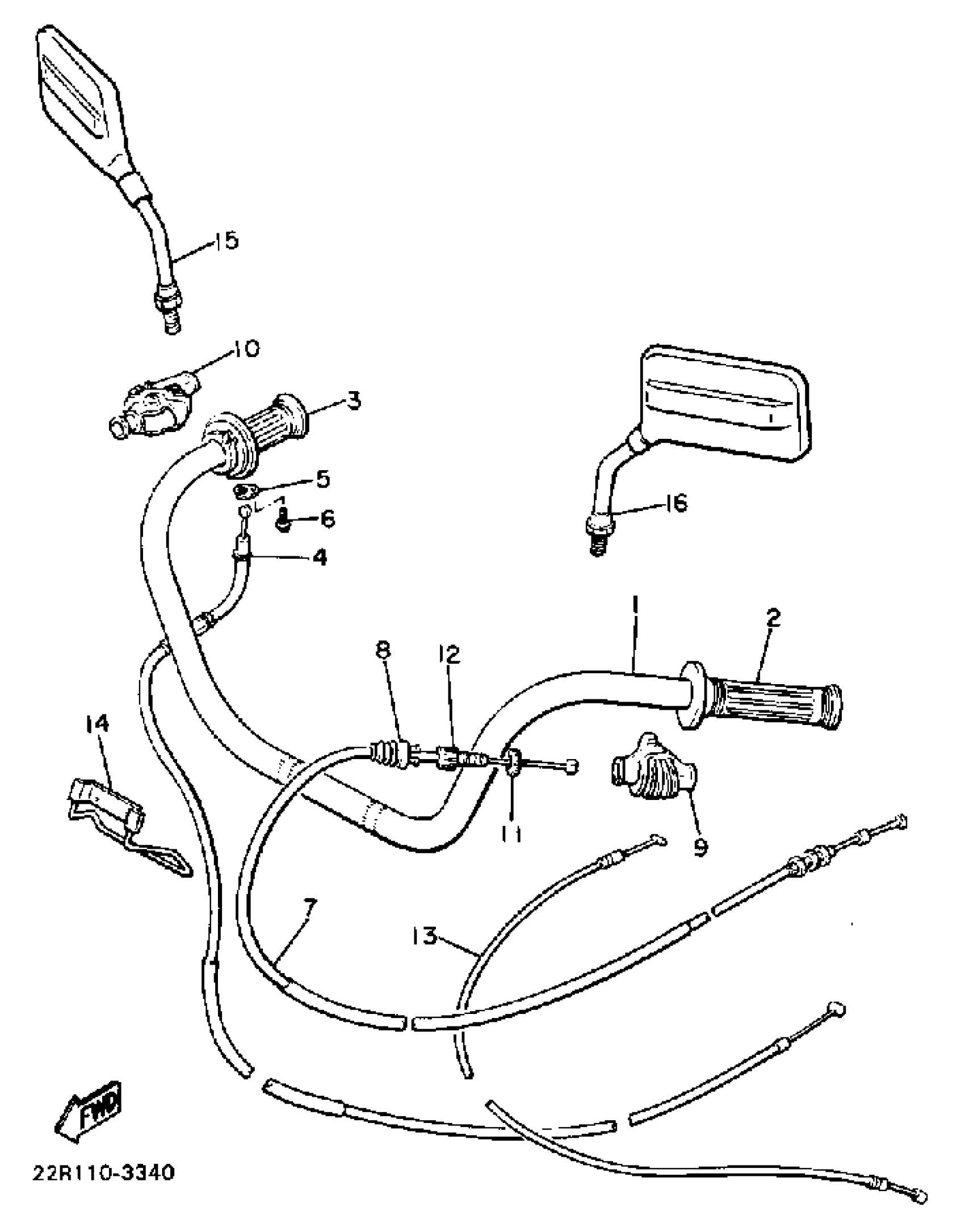

Yamaha XJ750K (XJ750) 1983 HANDLEBAR CABLE Diagram

HANDLEBAR

22R-26111-00-00

Unavailable

GRIP LH (L.H)

5G2-26241-00-00

Unavailable

GRIP ASSEMBLY

5G2-26240-00-00

Unavailable

CABLE, THROTTLE 1

15R-26311-00-00

Unavailable

HOLDER

5H0-26393-00-00

$7.99

GASKET, EXHAUST

98507-05008-00

$3.55

CABLE, CLUTCH

15R-26335-00-00

Unavailable

BOOT, WIRE

1E6-26342-00-00

$30.99

COVER, HANDLE LEVER

11H-26372-00-00

Unavailable

COVER, HANDLE LEVER (R.H)

1T5-26372-00-00

$20.99

NUT

90179-08030-00

$5.49

BOLT

90123-08002-00

$10.49

CABLE, STARTER 1

20X-26331-00-00

Unavailable

GUIDE, CABLE

(1J7-26399-00-00)

Unavailable

MIRROR ASSEMBLY (5G2-26290-00)

31A-26290-00-00

Unavailable

MIRROR ASSEMBLY (5G2-26290-10)

31A-26290-10-00

Unavailable
