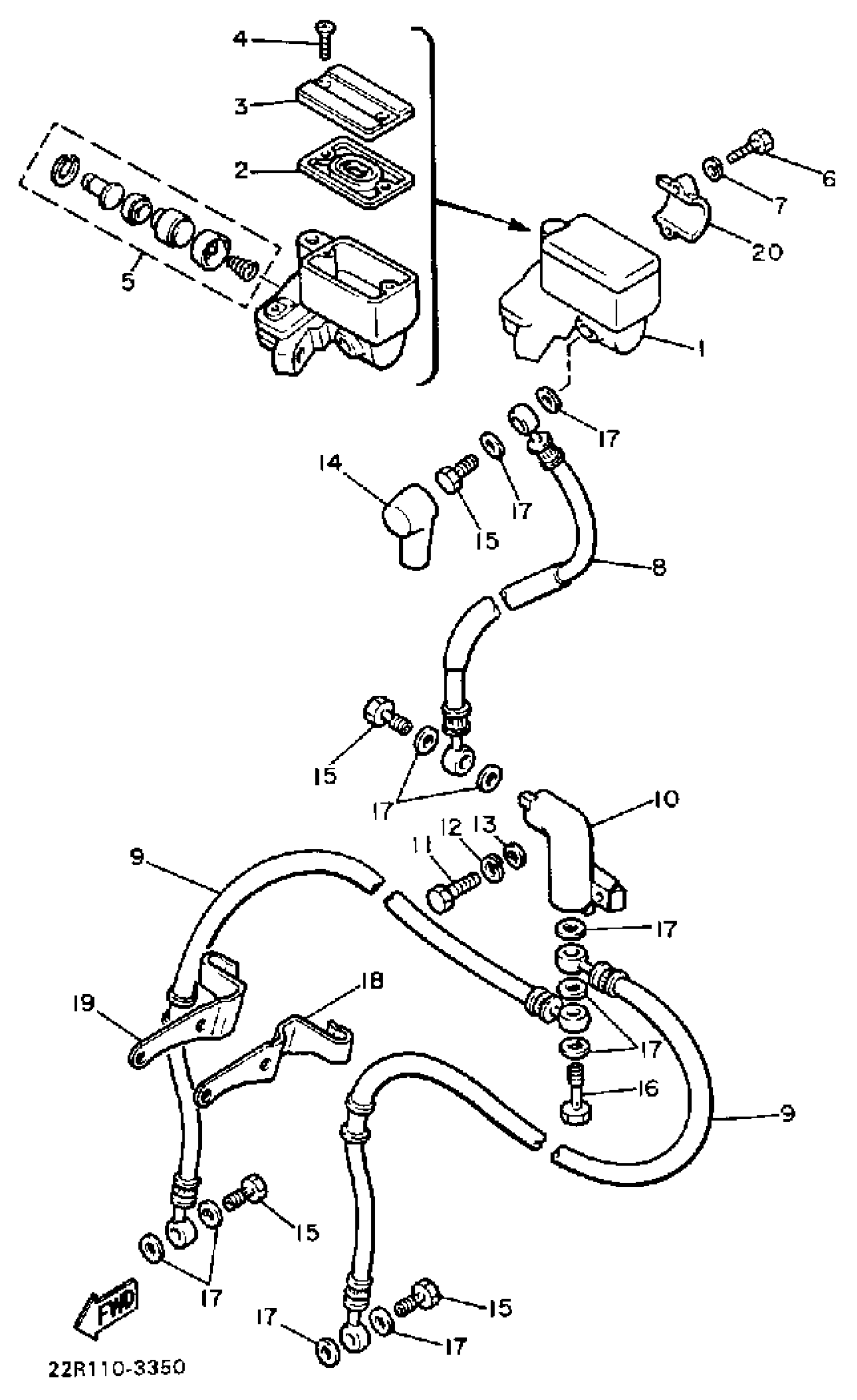

Yamaha XJ750K (XJ750) 1983 FRONT MASTER CYLINDER Diagram

#

Description
Price

1

MASTER CYLINDER SUB ASSY

3SD-25870-20-00

Unavailable

2

DIAPHRAGM, RESERVOIR

4HM-25854-00-00

$35.99

3

CAP, RESERVOIR

3GM-25852-02-00

$57.99

4

SCREW, FLAT

98707-04012-00

$2.18

5

CYLINDER KIT, MASTER

4K0-W0041-50-00

Unavailable

6

BOLT, HEXAGON

97017-06025-00

$4.24

7

WASHER, SPRING

92907-06100-00

$4.25

8

HOSE, BRAKE 1

2G2-25872-01-00

Unavailable

9

HOSE, BRAKE 2

22R-25873-00-00

Unavailable

10

JOINT

1J7-25885-01-00

Unavailable

11

BOLT, HEXAGON

97017-06025-00

$4.24

12

WASHER, SPRING

92995-06100-00

Unavailable

13

WASHER, PLAIN (646)

92990-06600-00

$2.80

14

BOOT, MASTER CYLINDER

306-25862-00-00

$48.99

15

BOLT, UNION(3GM)

90401-10159-00

Unavailable

16

BOLT, UNION

90401-10038-00

Unavailable

17

WASHER, PLATE(481)

90201-10118-00

Unavailable

18

HOLDER, BRKE HOSE 1

10M-25875-00-00

Unavailable

19

HOLDER, BRKE HOSE 2

10M-25876-00-00

Unavailable

20

BRACKET, MASTER CYLINDER

4L0-25867-00-00

Unavailable
