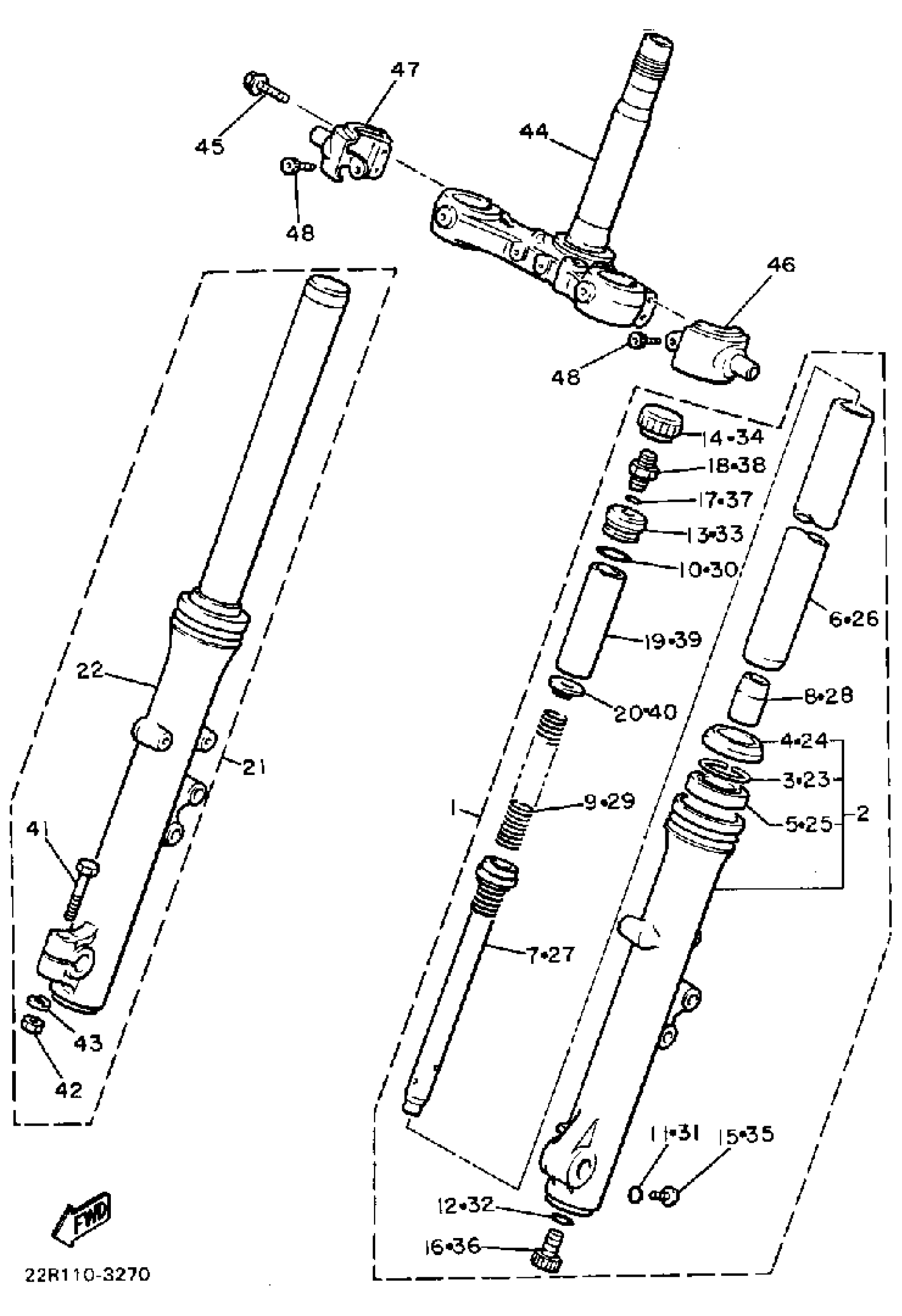

Yamaha XJ750K (XJ750) 1983 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASSEMBLY L

(22R-23102-00-00)

Unavailable

2

. TUBE, OUTER 1

15R-23126-00-00

Unavailable

3

RING, SNAP

4A1-23156-00-00

$5.49

4

SEAL, DUST

33M-23144-00-00

$28.99

5

OIL SEAL

4ES-23145-00-00

$22.99

6

. INNER TUBE 1

22R-23110-00-00

Unavailable

7

. CYLINDER, FRTFRKFRONT FORK

4H7-23170-00-00

Unavailable

8

TAPER SPINDLE

1W1-23173-L0-00

$31.99

9

SPRING, FRONT FORK

(5N8-23141-00-00)

Unavailable

10

GASKET

240-23114-00-00

$13.49

11

GASKET, DRAIN PLUG

122-23129-00-00

$7.99

12

GASKET

509-23158-L0-00

$16.49

13

. BOLT, CAP

20X-23111-00-00

Unavailable

14

. CAP, FRONT FORK

4X7-23168-00-00

Unavailable

15

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

16

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

Unavailable

17

O-RING

3J2-23147-00-00

Unavailable

18

AIR VALVE COMP.

4V4-23190-L0-00

Unavailable

19

SPACER

5N8-23118-00-00

Unavailable

20

. SEAT, SPRING UPPER

583-23142-00-00

Unavailable

21

FRONT FORK ASSEMBLY R

(22R-23103-00-00)

Unavailable

22

. TUBE, OUTER 2

15R-23136-00-00

Unavailable

23

RING, SNAP

4A1-23156-00-00

$5.49

24

SEAL, DUST

33M-23144-00-00

$28.99

25

OIL SEAL

4ES-23145-00-00

$22.99

26

. INNER TUBE 1

22R-23110-00-00

Unavailable

27

. CYLINDER, FRTFRKFRONT FORK

4H7-23170-00-00

Unavailable

28

TAPER SPINDLE

1W1-23173-L0-00

$31.99

29

SPRING, FRONT FORK

(5N8-23141-00-00)

Unavailable

30

GASKET

240-23114-00-00

$13.49

31

GASKET, DRAIN PLUG

122-23129-00-00

$7.99

32

GASKET

509-23158-L0-00

$16.49

33

. BOLT, CAP

20X-23111-00-00

Unavailable

34

. CAP, FRONT FORK

4X7-23168-00-00

Unavailable

35

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

36

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

Unavailable

37

O-RING

3J2-23147-00-00

Unavailable

38

AIR VALVE COMP.

4V4-23190-L0-00

Unavailable

39

SPACER

5N8-23118-00-00

Unavailable

40

. SEAT, SPRING UPPER

583-23142-00-00

Unavailable

41

BOLT

97013-08045-00

Unavailable

42

NUT(6L2)

95333-08600-00

Unavailable

43

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

44

. UNDER BRACKET

5N8-23340-00-33

Unavailable

45

BOLT, AXLE HOLDER

18G-23128-00-00

Unavailable

46

. COVER, OUTER 1

4H7-23122-00-00

Unavailable

47

. COVER, OUTER 2

4H7-23132-00-00

Unavailable

48

. BOLT, HEX SCKT HEAD

4H7-23181-00-00

Unavailable
