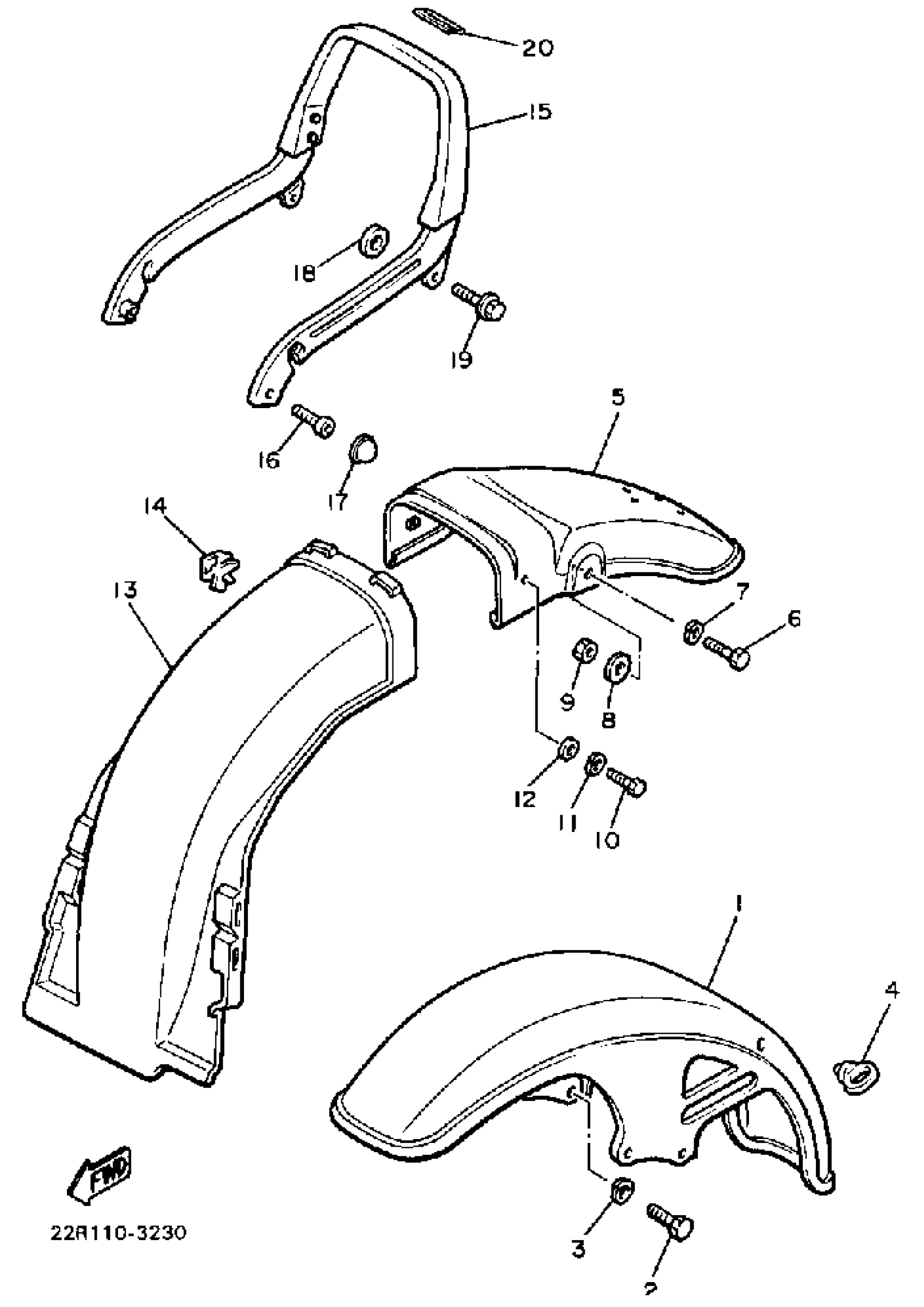

Yamaha XJ750K (XJ750) 1983 FENDER Diagram

#

Description
Price

1

FENDER, FRONT

15R-21510-00-93

Unavailable

2

BOLT, HEXAGON

97013-08020-00

$1.16

3

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

4

HOLDER, WIRE

1A0-21518-00-00

Unavailable

5

FENDER, REAR

15R-21610-00-93

Unavailable

6

BOLT, HEXAGON

97017-08020-00

$9.49

7

WASHER(JN5)

92907-08100-00

$8.49

8

WASHER, PLAIN

92990-08200-00

Unavailable

9

NUT(6L2)

95333-08600-00

$2.49

10

BOLT, HEXAGON

97017-06012-00

$3.76

11

WASHER, SPRING

92907-06100-00

$4.25

12

WASHER(6TA)

92907-06600-00

$2.72

13

GUARD, MUD

15R-21629-00-00

Unavailable

14

CLAMP (1J7)

90464-16021-00

$12.49

15

REAR STAY CMPLT

15R-21640-00-00

Unavailable

16

BOLT, SOCKET

91314-08035-00

Unavailable

17

CAP, BOLT (371,447)

341-23469-00-00

Unavailable

18

WASHER, PLATE (10M)

90201-090F4-00

Unavailable

19

BOLT, FLANGE(4LN)

95817-08025-00

Unavailable

20

EMBLEM 7

(33N-21787-00-00)

Unavailable
