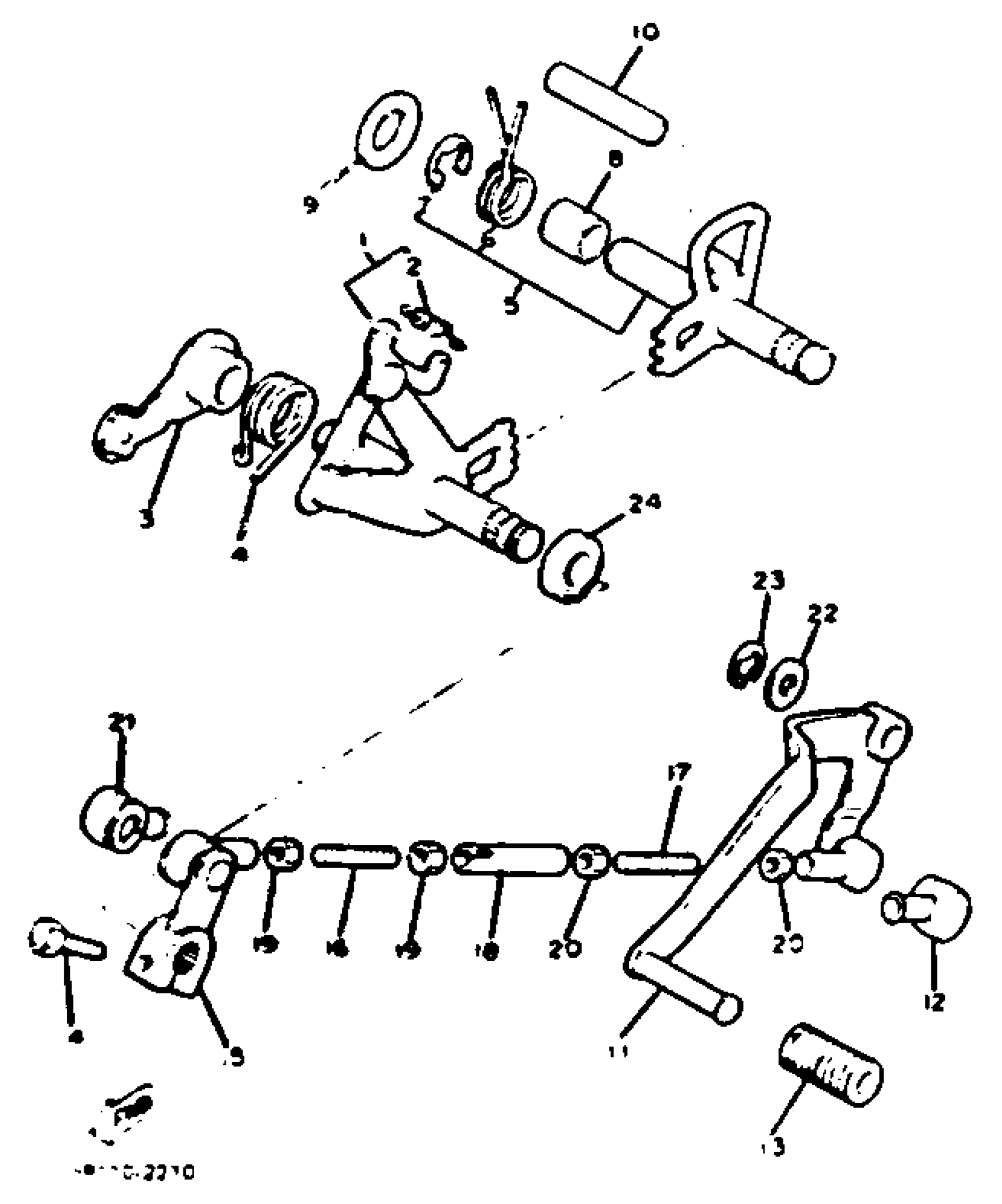

Yamaha XJ750J (XJ750) 1982 SHIFT SHAFT Diagram

#

Description
Price

1

SHIFT SHAFT ASSY

4KM-18101-00-00

Unavailable

2

SPRING, TENSION (4H7)

90506-08227-00

$4.19

3

STOPPER LEVER ASSEMBLY

4H7-18140-00-00

Unavailable

4

SPRING, TORSION

90508-29530-00

Unavailable

5

SHIFT LEVER ASSY

4KM-18120-01-00

Unavailable

6

SPRING, TORSION (4H7)

90508-32535-00

$10.49

7

CIRCLIP

99006-10600-00

$9.49

8

COLLAR

90387-12033-00

$7.49

9

WASHER

90201-12588-00

$7.49

10

PIN, DOWEL (4H7)

93608-50158-00

$8.49

11

PEDAL, SHIFT

15R-18111-00-00

Unavailable

12

COVER, DUST

2H9-18154-00-00

$5.49

13

COVER, CHANGE PEDAL

132-18113-01-00

$7.99

14

BOLT, HEXAGON

97017-06020-00

$4.06

15

ARM, SHIFT

15R-18112-00-00

Unavailable

16

BOLT, STUD

90116-06382-00

Unavailable

17

BOLT, STUD

90116-06383-00

Unavailable

18

ROD, SHIFT

15R-18115-00-00

Unavailable

19

NUT(650)

95380-06700-00

Unavailable

20

NUT (2H9)

90170-06228-00

Unavailable

21

COVER, DUST

2H9-18154-00-00

$5.49

22

WASHER, PLATE (5K7)

90201-124E4-00

Unavailable

23

CIRCLIP

99006-10600-00

$9.49

24

SEAL, OIL (30X)

93102-12321-00

Unavailable
