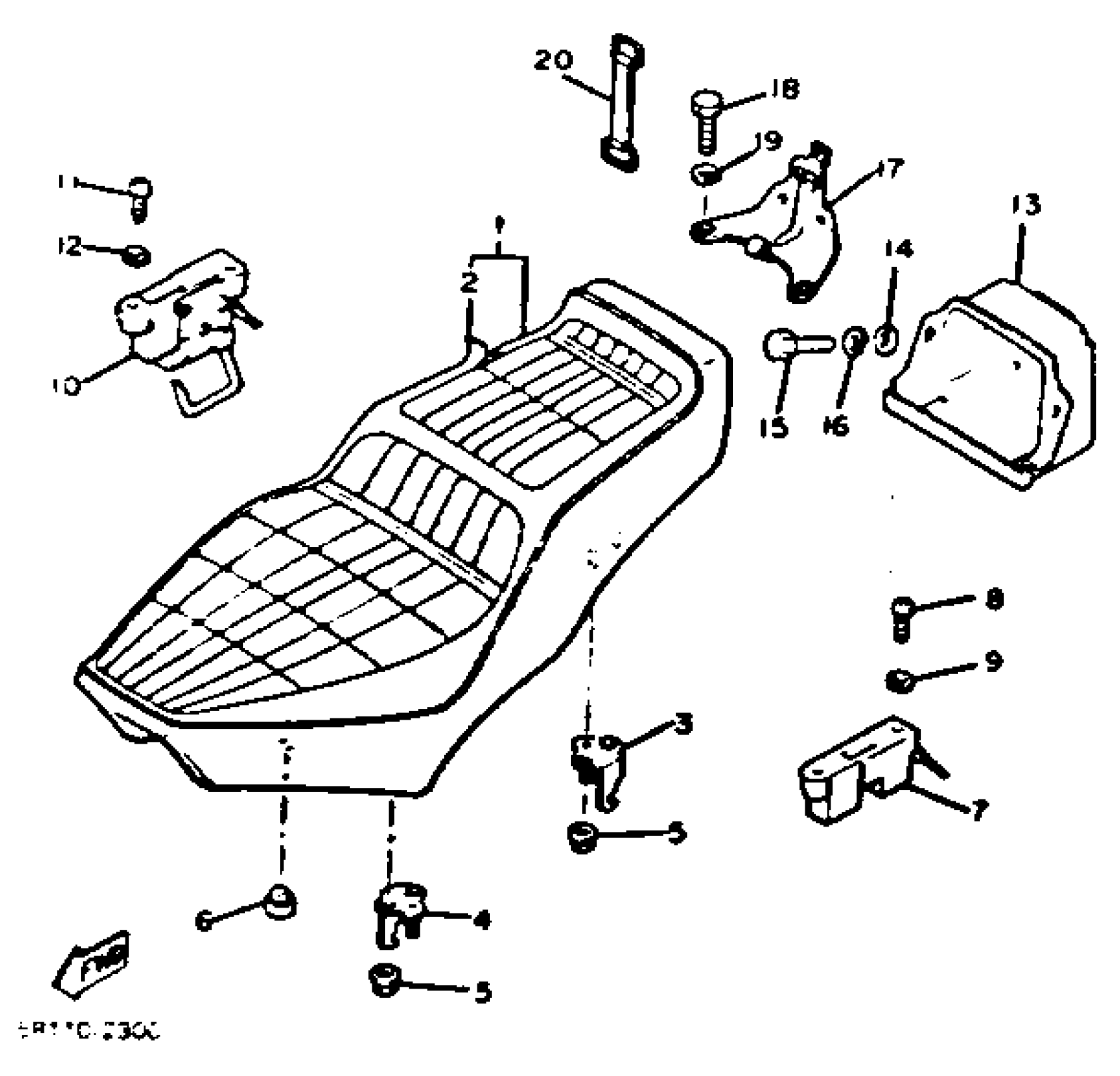

Yamaha XJ750J (XJ750) 1982 SEAT Diagram

#

Description
Price

1

DOUBLE SEAT ASSEMBLY

15R-W2472-00-00

Unavailable

2

. COVER, DOUBLE SEAT

15R-24731-00-00

Unavailable

3

BRACKET, SEAT

10M-24728-00-00

Unavailable

4

BRACKET, SEAT

10M-24738-00-00

Unavailable

5

NUT, FLANGE(7NB)

95780-06500-00

$1.88

6

PAD, SEAT

116-24741-00-00

Unavailable

7

SEAT LEVER ASSEMBLY

4L0-24760-00-00

Unavailable

8

SCREW, PAN HEAD(62J)

97885-06012-00

$2.88

9

WASHER, SPRING

92995-06100-00

$2.95

10

SEAT LOCK ASSEMBLY

4L0-24705-00-00

Unavailable

11

SCREW, PAN HEAD(62J)

97885-06012-00

$2.88

12

WASHER, SPRING

92995-06100-00

$2.95

13

BOX 1

15R-2473R-00-00

Unavailable

14

WASHER, PLATE

90201-06020-00

$5.86

15

BOLT(3DM)

97024-06020-00

$5.75

16

WASHER, SPRING

92995-06100-00

$2.95

17

BRACKET, SEAT LVR 1

15R-2475H-00-00

Unavailable

18

BOLT(3DM)

97024-06020-00

$5.75

19

WASHER, SPRING

92995-06100-00

$2.95

20

BAND, BATTERY

116-82131-00-00

Unavailable
