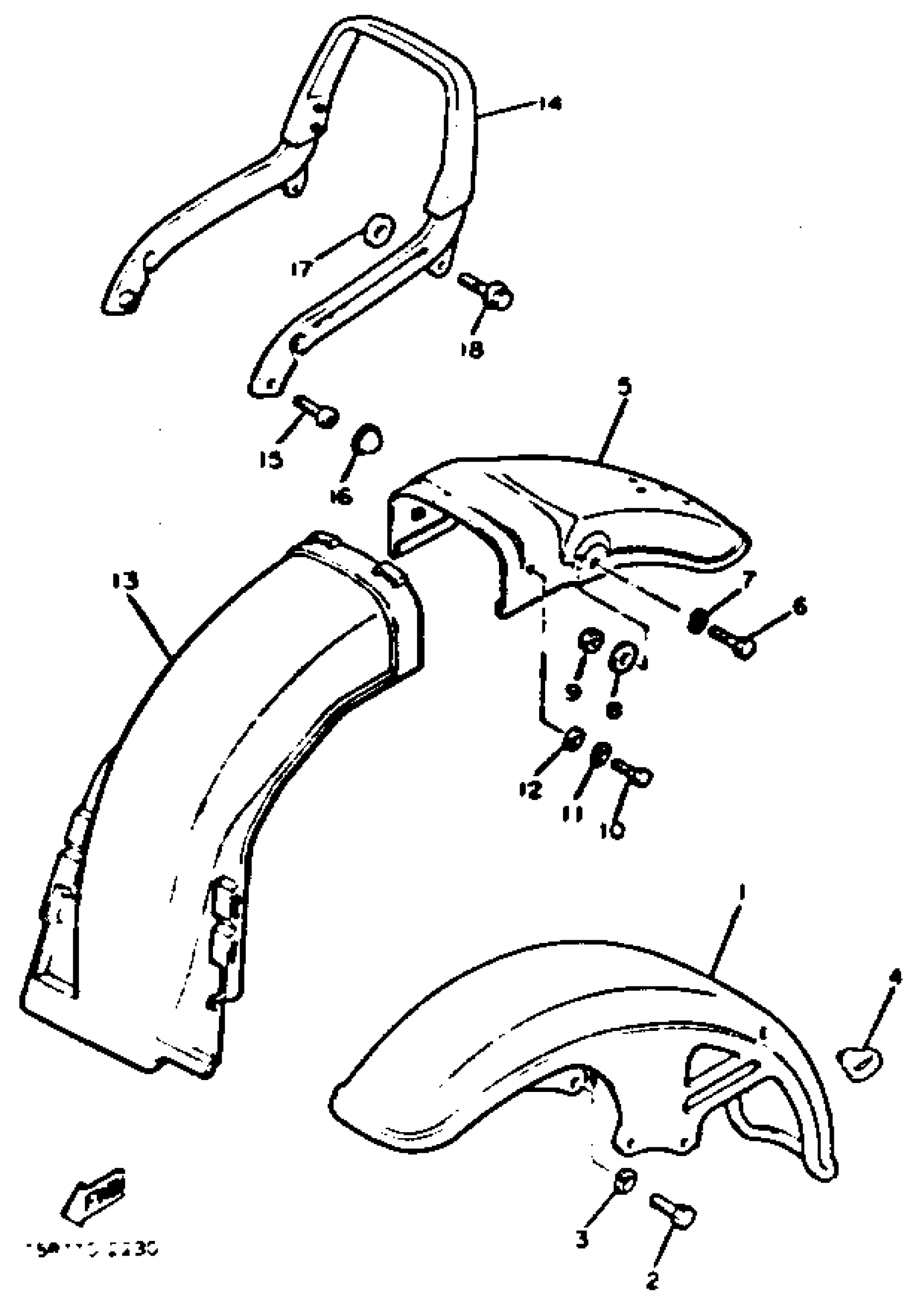

Yamaha XJ750J (XJ750) 1982 FENDER Diagram

#

Description
Price

1

FENDER, FRONT

15R-21510-00-93

Unavailable

2

BOLT, HEXAGON

97013-08020-00

$1.43

3

YBS67-8 WASHER, SPRING

92990-08100-00

$4.23

4

HOLDER, WIRE

1A0-21518-00-00

Unavailable

5

FENDER, REAR

15R-21610-00-93

Unavailable

6

BOLT, HEXAGON

97017-08020-00

$5.96

7

WASHER(JN5)

92907-08100-00

$5.59

8

WASHER, PLAIN

92990-08200-00

$2.36

9

NUT(6L2)

95333-08600-00

$2.98

10

BOLT, HEXAGON

97017-06012-00

$2.44

11

WASHER, SPRING

92907-06100-00

$0.98

12

WASHER(6TA)

92907-06600-00

$0.73

13

GUARD, MUD

15R-21629-00-00

Unavailable

14

REAR STAY CMPLT

15R-21640-00-00

Unavailable

15

BOLT, SOCKET

91314-08035-00

$2.30

16

CAP, BOLT (371,447)

341-23469-00-00

Unavailable

17

WASHER, PLATE (10M)

90201-090F4-00

Unavailable

18

BOLT, FLANGE(4LN)

95817-08025-00

Unavailable
