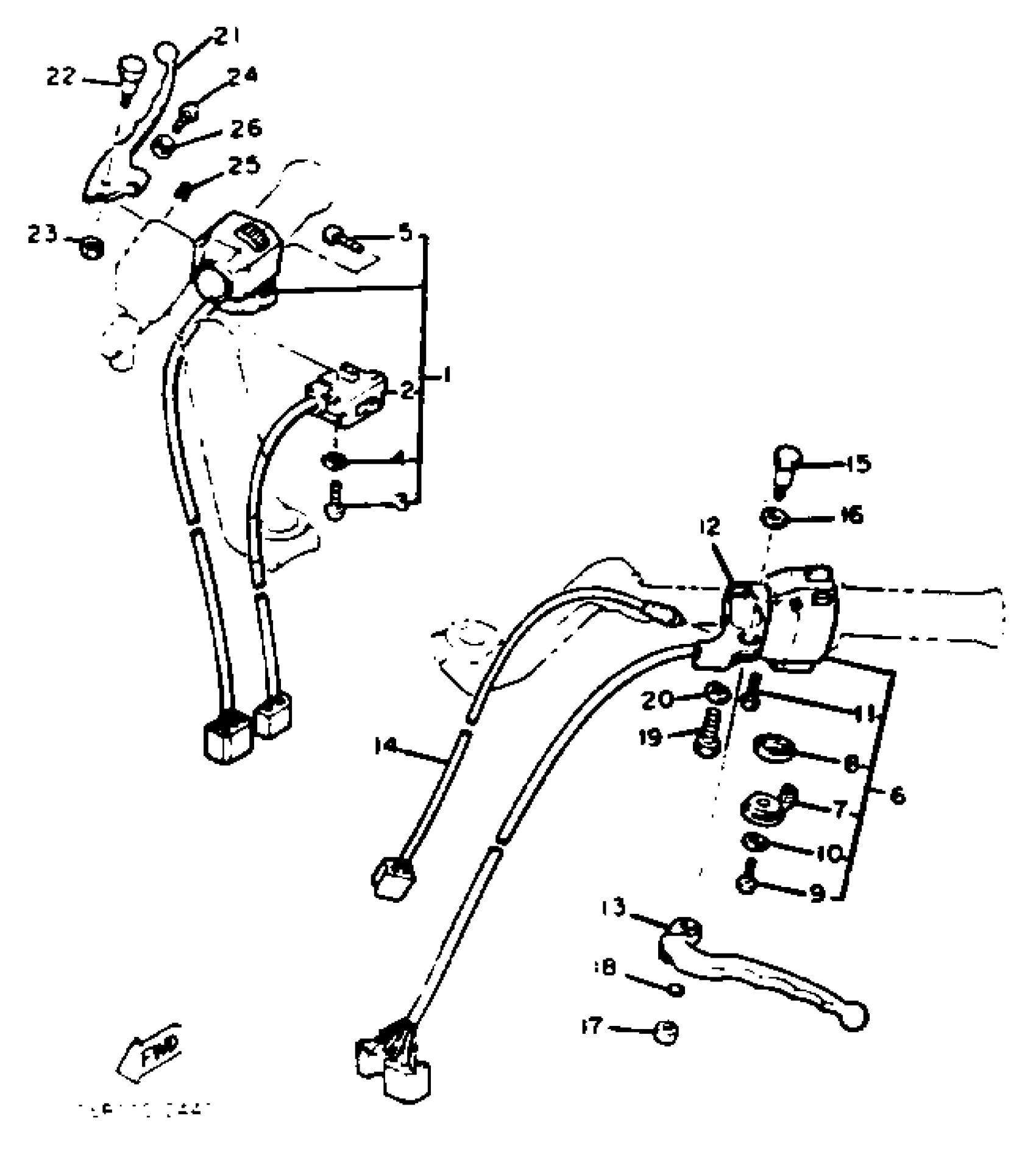

Yamaha XJ750J (XJ750) 1982 HANDLE SWITCH LEVER Diagram

#

Description
Price

1

SWITCH, HANDLE 3

15R-83963-00-98

Unavailable

2

. SWITCH

15R-83964-00-00

Unavailable

3

SCREW, PAN HEAD

98507-03016-00

Unavailable

4

WASHER, SPRING

92990-03100-00

$8.49

5

SCREW, PAN HEAD

98517-05020-00

$4.25

6

SWITCH, HANDLE 3 (10M-83973-00-00)

15R-83973-00-98

Unavailable

7

LEVER, STARTER

10M-83941-00-00

Unavailable

8

WASHER (357)

90209-10131-00

$9.49

9

SCREW, PAN HEAD(6A3)

97885-06008-00

Unavailable

10

WASHER, SPRING

92995-06100-00

Unavailable

11

SCREW, PAN HEAD

98517-05020-00

$4.25

12

HOLDER, LEVER 1

11H-82911-00-00

Unavailable

13

LEVER 1

10W-83912-00-00

Unavailable

14

SWITCH

3Y6-82917-00-00

Unavailable

15

BOLT(3GB)

90109-061F3-00

$7.49

16

WASHER, PLATE 1562722600

90201-08083-00

Unavailable

17

NUT, SELF-LOCKING

95617-06100-00

Unavailable

18

O-RING (2H7)

93210-11368-00

Unavailable

19

BOLT, HEXAGON

97007-06022-00

Unavailable

20

WASHER, SPRING

92907-06100-00

Unavailable

21

LEVER 2

4L0-83922-00-00

Unavailable

22

BOLT (4L0)

90109-06577-00

Unavailable

23

NUT HEXAGON 306839270000

90170-06010-00

Unavailable

24

SCREW (2L0)

90149-06131-00

Unavailable

25

SPRING COMPRESSION306839240000

90501-10312-00

Unavailable

26

NUT, SELF-LOCKING

95617-06100-00

Unavailable
