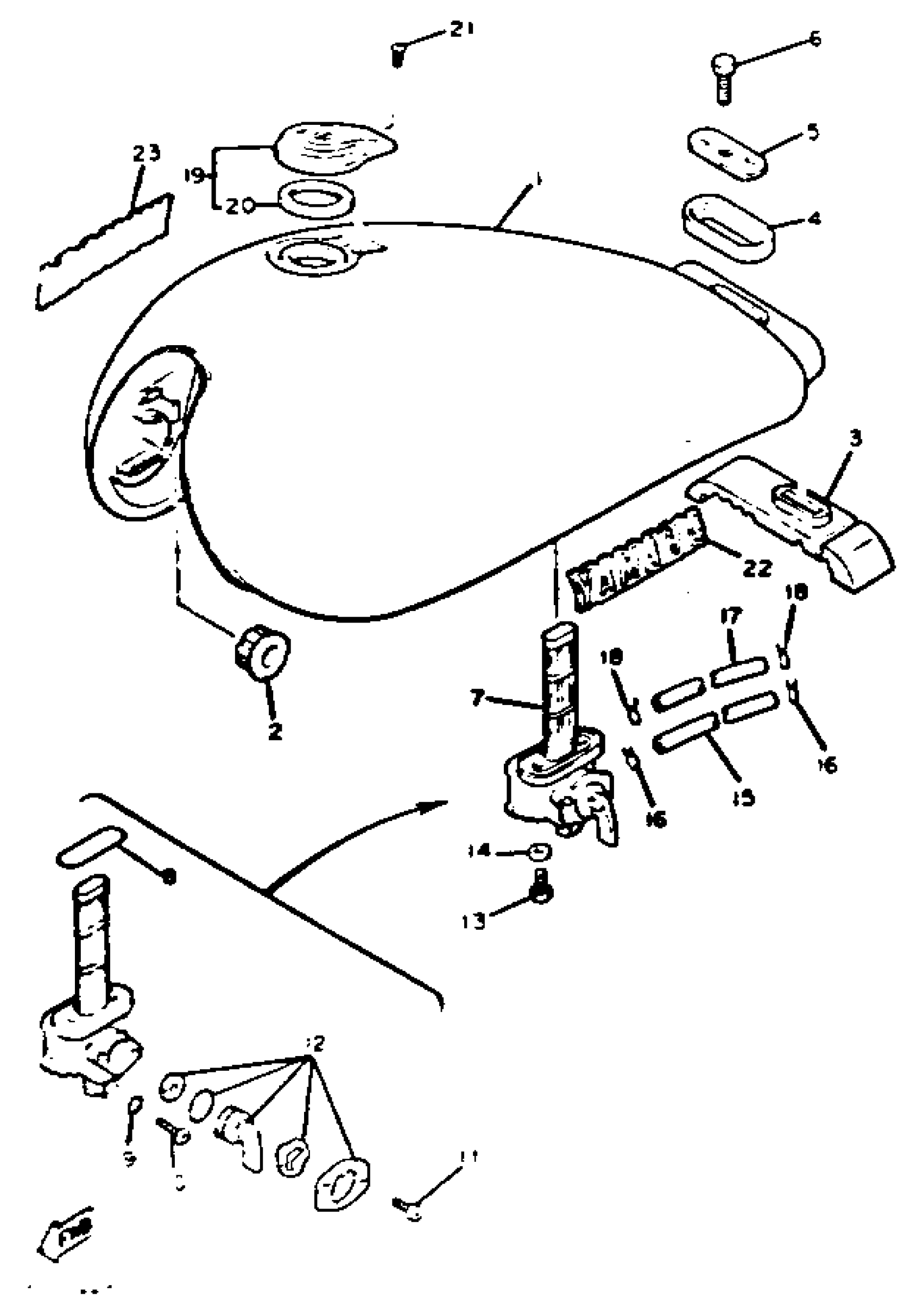

Yamaha XJ750J (XJ750) 1982 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK

15R-24110-00-63

Unavailable

1

FUEL TANK

15R-24110-00-6G

Unavailable

2

DAMPER, LOCATING

4H7-24181-00-00

$6.99

3

UNAVAILABLE IN PRICE BOOK

[15-R2418-20-00

Unavailable

4

DAMPER, LOCATING 3

4H7-24183-00-00

Unavailable

5

WASHER, SPECIAL

4H7-24186-00-00

Unavailable

6

BOLT(62E)

97013-08012-00

Unavailable

7

FUEL COCK ASSY 1

33M-24500-00-00

$244.99

8

O-RING

2W6-24512-00-00

$7.99

9

GASKET, DRAIN PLUG

2G2-24522-00-00

$6.99

10

SCREW, PAN HEAD(6A3)

97885-06008-00

Unavailable

11

SCREW, PAN HEAD (J10)

98580-03008-00

$3.55

12

FUEL COCK VALVE SET

10L-W0092-00-00

$29.99

13

SCREW 256241430000

90149-06011-00

$5.60

14

WASHER, PLATE(3MB)

90202-05187-00

$1.38

15

PIPE, FUEL 1

5G2-24311-00-00

Unavailable

16

CLIP

90467-100A1-00

Unavailable

17

HOSE (L770)

90445-090G9-00

Unavailable

18

CLIP 101235600

90467-08003-00

Unavailable

19

CAP ASSY

4X7-24602-10-00

Unavailable

20

GASKET, TANK CAP

4X7-24612-00-00

Unavailable

21

SCREW, PAN HEAD(3LA)

98517-05010-00

Unavailable

22

EMBLEM 1

5G2-24161-00-00

Unavailable

23

EMBLEM 2

5G2-24162-00-00

Unavailable
