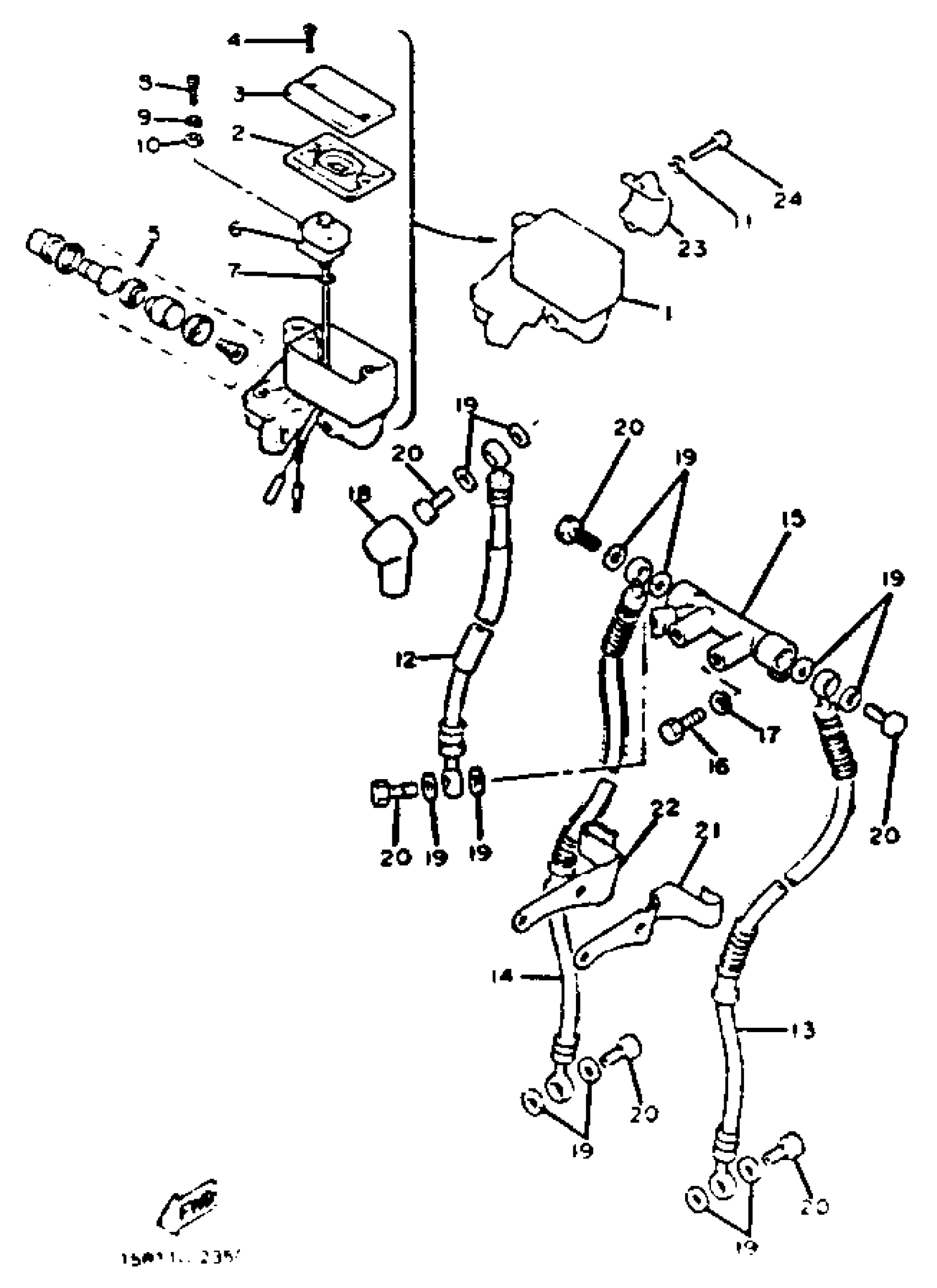

Yamaha XJ750J (XJ750) 1982 FRONT MASTER CYLINDER Diagram

#

Description
Price

1

MSTR CYLINDER ASSEMBLY

10L-25850-00-00

Unavailable

2

DIAPHRAGM, RESERVOIR

4HM-25854-00-00

$35.99

3

CAP, RESERVOIR

3GM-25852-02-00

$57.99

4

SCREW, FLAT

98707-04012-00

$2.18

5

CYLINDER KIT, MASTER

4K0-W0041-50-00

Unavailable

6

. LEAD SWITCH ASSEMBLY (10L-85702-00)

10M-85702-00-00

Unavailable

7

. O-RING

93210-08493-00

Unavailable

8

SCREW, PAN HEAD

98511-04012-00

Unavailable

9

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

10

WASHER, PLAIN (646)

92990-04600-00

$5.99

11

WASHER, SPRING

92907-06100-00

$4.25

12

UNAVAILABLE IN PRICE BOOK

[15-R2587-20-00

Unavailable

13

HOSE, BRAKE 2

15R-25873-00-00

Unavailable

14

HOSE, BRAKE

(15R-25874-00-00)

Unavailable

15

UNAVAILABLE IN PRICE BOOK

[15-R2588-50-00

Unavailable

16

BOLT, HEXAGON

97017-06020-00

Unavailable

17

WASHER, SPRING

92907-06100-00

$4.25

18

BOOT, MASTER CYLINDER

306-25862-00-00

Unavailable

19

WASHER, PLATE(481)

90201-10118-00

Unavailable

20

BOLT, UNION(3GM)

90401-10159-00

Unavailable

21

HOLDER, BRKE HOSE 1

10M-25875-00-00

Unavailable

22

HOLDER, BRKE HOSE 2

10M-25876-00-00

Unavailable

23

BRACKET, MASTER CYLINDER

4L0-25867-00-00

Unavailable

24

BOLT, HEXAGON

97017-06025-00

Unavailable
