Description

Price

1

DISC, BRAKE

5G9-25831-00-00

Unavailable

2

DISC, BRAKE

5G9-25831-10-00

Unavailable

3

WASHER, LOCK

3H5-25834-00-00

Unavailable

4

BOLT, HEXAGON (1L9)

90101-08312-00

$9.49

5

CALIPER ASSY (RIGHT)

4JF-2580U-00-00

Unavailable

6

BRAKE PAD KIT

43F-W0045-01-00

Unavailable

7

. SHIM, CALIPER

(11H-25827-00-00)

Unavailable

8

PAD SPRING, CALIPER

11H-25919-00-00

Unavailable

9

PISTON ASSY, CALIPER

4X8-W0057-00-00

$139.99

10

. UNAVAILABLE IN PRICE BOOK (404-W0048-30)

51L-W0048-30-00

Unavailable

11

BOOT

4X8-25917-00-00

Unavailable

12

BOOT 2

5R2-25937-00-00

$37.99

13

CALIPER ASSEMBLY (LEFT) (11H-25810-10) (LEFT)

29L-2580T-00-00

Unavailable

14

BRAKE PAD KIT

43F-W0045-01-00

Unavailable

15

. SHIM, CALIPER

(11H-25827-00-00)

Unavailable

16

PAD SPRING, CALIPER

11H-25919-00-00

Unavailable

17

PISTON ASSY, CALIPER

4X8-W0057-00-00

$139.99

18

. UNAVAILABLE IN PRICE BOOK (404-W0048-30)

51L-W0048-30-00

Unavailable

19

BOOT

4X8-25917-00-00

Unavailable

20

BOOT 2

5R2-25937-00-00

$37.99

21

BOLT, WASHER BASED(3VD)

90105-10638-00

Unavailable

22

YBS67-10 WASHER, SPRING

92990-10100-00

Unavailable

23

958-69527-00 WASHER, PLAIN

92990-10200-00

Unavailable

24

UNAVAILABLE IN PRICE BOOK (LEFT)

[11-H2582-81-00

Unavailable

25

UNAVAILABLE IN PRICE BOOK (RIGHT)

[11-H2582-80-00

Unavailable

26

PIN PAD

34L-25924-00-00

Unavailable

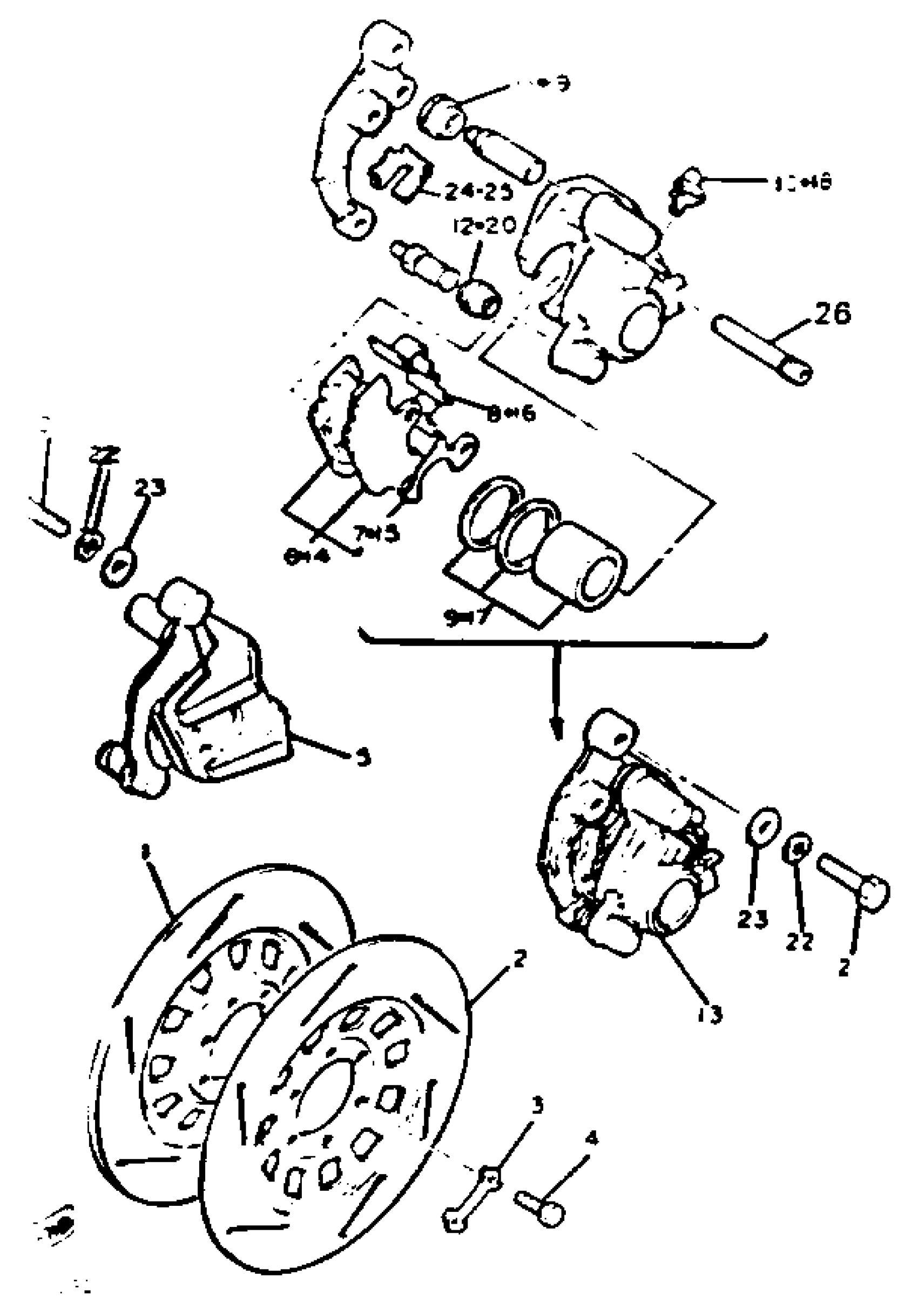

Yamaha XJ750J (XJ750) 1982 FRONT BRAKE CALIPER Diagram

DISC, BRAKE

DISC, BRAKE

WASHER, LOCK

BOLT, HEXAGON (1L9)

CALIPER ASSY (RIGHT)

BRAKE PAD KIT

. SHIM, CALIPER

PAD SPRING, CALIPER

PISTON ASSY, CALIPER

. UNAVAILABLE IN PRICE BOOK (404-W0048-30)

BOOT

BOOT 2

CALIPER ASSEMBLY (LEFT) (11H-25810-10) (LEFT)

BRAKE PAD KIT

. SHIM, CALIPER

PAD SPRING, CALIPER

PISTON ASSY, CALIPER

. UNAVAILABLE IN PRICE BOOK (404-W0048-30)

BOOT

BOOT 2

BOLT, WASHER BASED(3VD)

YBS67-10 WASHER, SPRING

958-69527-00 WASHER, PLAIN

UNAVAILABLE IN PRICE BOOK (LEFT)

UNAVAILABLE IN PRICE BOOK (RIGHT)

PIN PAD
