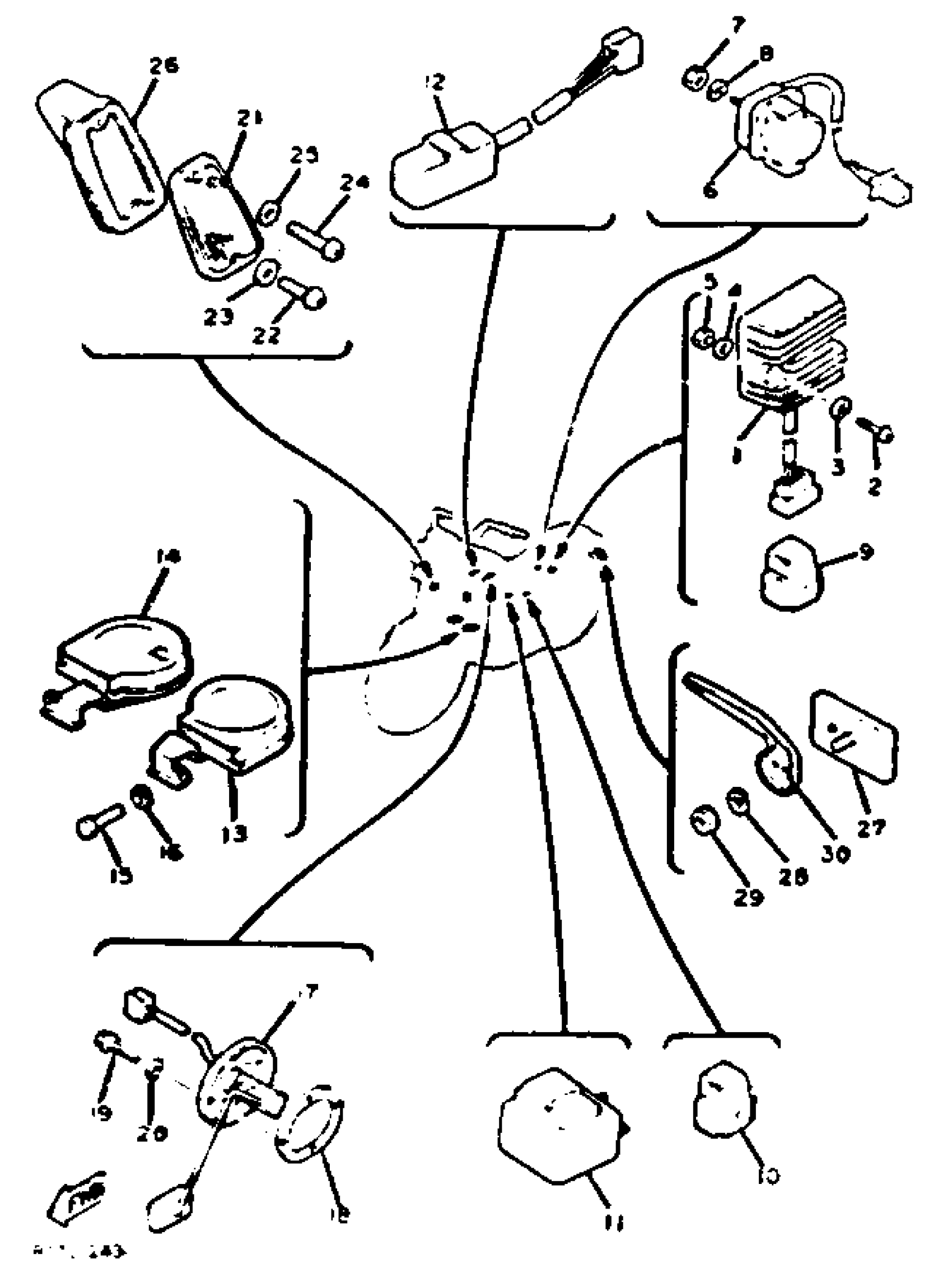

Yamaha XJ750J (XJ750) 1982 ELECTRICAL 2 Diagram

#

Description
Price

1

RECTIFIER & REGULATOR ASSY

3G1-81960-A1-00

Unavailable

2

SCREW, PAN HEAD(6E0)

97885-06030-00

Unavailable

3

WASHER, SPRING

92995-06100-00

Unavailable

4

WASHER, PLAIN (646)

92990-06600-00

$2.80

5

NUT(650)

95380-06700-00

$8.49

6

STARTER RELAY ASSY (MS5D-611)

4KD-81940-00-00

$115.99

7

NUT(650)

95380-06700-00

$8.49

8

WASHER, SPRING

92995-06100-00

Unavailable

9

RELAY ASSY

12R-81950-02-00

$70.99

10

RELAY ASSY

4U8-81950-03-00

Unavailable

11

FLASHER RELAY ASSEMBLY

4H7-83350-70-00

Unavailable

12

FLASHER CANCELING UNIT

1A0-83395-03-00

Unavailable

13

HORN

15R-83371-20-00

Unavailable

14

HORN

15R-83371-30-00

Unavailable

15

BOLT, HEXAGON

97017-08016-00

$8.49

16

WASHER(JN5)

92907-08100-00

Unavailable

17

SNDR UT ASSEMBLY, F/MTRFUEL METER

15R-85752-00-00

Unavailable

18

GASKET, SENDER UNIT

2H7-85753-00-00

Unavailable

19

BOLT, FLANGE

95817-06014-00

Unavailable

20

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

21

FRONT REFLECTOR ASSEMBLY

3G1-85110-00-00

Unavailable

22

SCREW, PAN HEAD

98507-04018-00

Unavailable

23

WASHER, PLAIN (646)

92990-04600-00

Unavailable

24

SCREW, PAN HEAD

98580-04540-00

Unavailable

25

WASHER, PLAIN (646)

92990-04600-00

Unavailable

26

BASE, REFLECTOR

4H7-85127-01-00

Unavailable

27

REAR REFLECTOR ASSY

3Y6-85130-02-00

Unavailable

28

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

29

NUT, HEXAGON (663)

95380-05600-00

Unavailable

30

BRACKET, REFLECT 1

15R-85132-00-00

Unavailable
