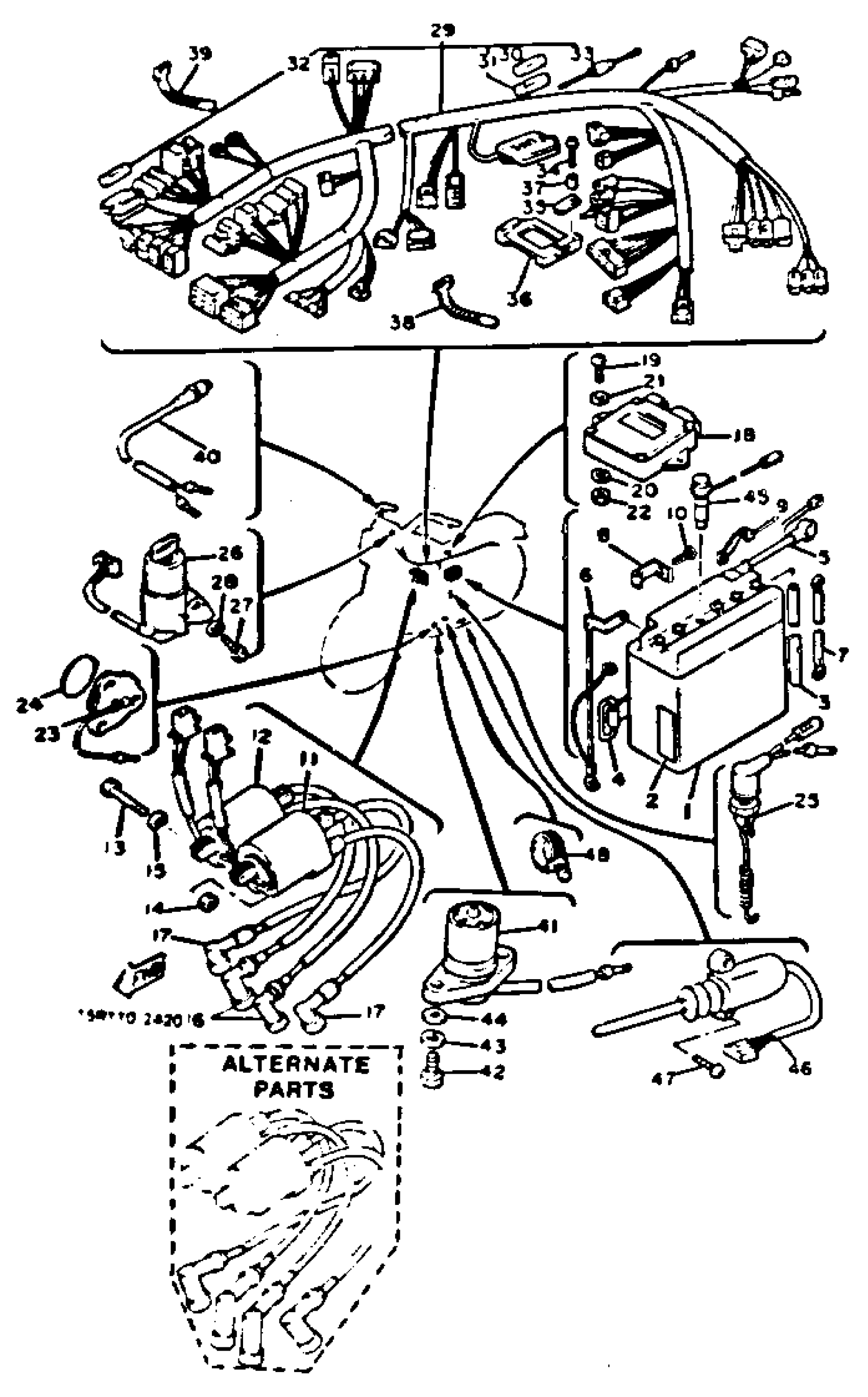

Yamaha XJ750J (XJ750) 1982 ELECTRICAL 1 Diagram

#

Description
Price

1

YB14LA2 YUASA BATTERY

YB1-4LA20-00-00

Unavailable

2

LABEL, BATTERY

40A-82141-G0-00

Unavailable

3

HOSE (L1500)

90445-084J0-00

$18.99

4

BAND, BATTERY

26H-82131-00-00

$23.99

5

WIRE, PLUS LEAD (15R-82115-00)

12R-82115-00-00

Unavailable

6

WIRE, MINUS LEAD

5G2-82116-00-00

Unavailable

7

WIRE, EARTH LEAD

4H7-82519-00-00

Unavailable

8

TERMINAL 1

5G2-82103-00-00

Unavailable

9

TERMINAL 1

15R-82103-00-00

Unavailable

10

SCREW, HEXAGON (5G2)

90153-06032-00

$2.49

11

IGNITION COIL ASSY

4G0-82310-09-00

$246.99

12

IGNITION COIL ASSY

4G0-82310-09-00

$246.99

13

BOLT(7LR)

97027-06080-00

$7.49

14

NUT, HEXAGON

95380-06600-00

Unavailable

15

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

16

PLUG CAP ASSY

1J7-82370-00-00

Unavailable

17

PLUG CAP ASSY

1J7-82370-00-00

Unavailable

17

PLUG CAP ASSY

4BP-82370-01-00

Unavailable

17

PLUG CAP ASSEMBLY

2H8-82370-10-00

Unavailable

18

IGNITOR UNIT ASSEMBLY 1

5G2-82305-10-00

Unavailable

19

SCREW, PAN

98507-06014-00

Unavailable

20

WASHER, SPRING

92995-06100-00

Unavailable

21

WASHER, PLAIN (646)

92990-06600-00

Unavailable

22

NUT(650)

95380-06700-00

Unavailable

23

NEUTRAL SWITCH ASSY

4GY-82540-10-00

Unavailable

24

GASKET (5R6)

90430-10171-00

Unavailable

25

STOP SWITCH ASSEMBLY (1E9-82530-00-00)

1E9-82530-02-00

Unavailable

26

MAIN SWITCH ASSEMBLY

5G2-82508-50-00

Unavailable

27

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

28

WASHER, PLAIN (646)

92990-06600-00

Unavailable

29

WIRE HARNESS ASSEMBLY

(15R-82590-50-00)

Unavailable

30

FUSE

1A0-82151-00-00

Unavailable

31

FUSE (12V 30A)

2H7-82151-00-00

Unavailable

32

FUSE (12V 5A)

5G2-82151-00-00

Unavailable

33

RECTIFIER 2

3H5-81980-00-00

Unavailable

34

YBS83-525 SCREW,PANH.TAPPING

97780-50125-00

Unavailable

35

UNAVAILABLE IN PRICE BOOK

[4K-08255-80-00

Unavailable

36

DAMPER

4K0-82157-00-00

Unavailable

37

UNAVAILABLE IN PRICE BOOK

[90-38705-6E-60

Unavailable

38

BAND, SWITCH CORD

437-83936-11-00

Unavailable

39

BAND, SWITCH CORD

25G-83936-01-00

Unavailable

40

FRONT STOP SWITCH ASSY

26H-83980-00-00

Unavailable

41

OIL LVL GAUGE ASY

2KW-85720-00-00

Unavailable

42

BOLT, HEXAGON

97017-06020-00

Unavailable

43

WASHER, SPRING

92995-06100-00

Unavailable

44

WASHER, PLAIN (646)

92990-06600-00

Unavailable

45

SENDER, BATTERY

5G2-82120-00-00

Unavailable

46

SWITCH, SIDE STAND

5G2-82566-01-00

Unavailable

47

SCREW, FLAT

98707-05016-00

Unavailable

48

BAND

341-26397-01-00

Unavailable
