1986 Yamaha Maxim X CA (XJ700XSC) Steering Diagram

← All diagrams

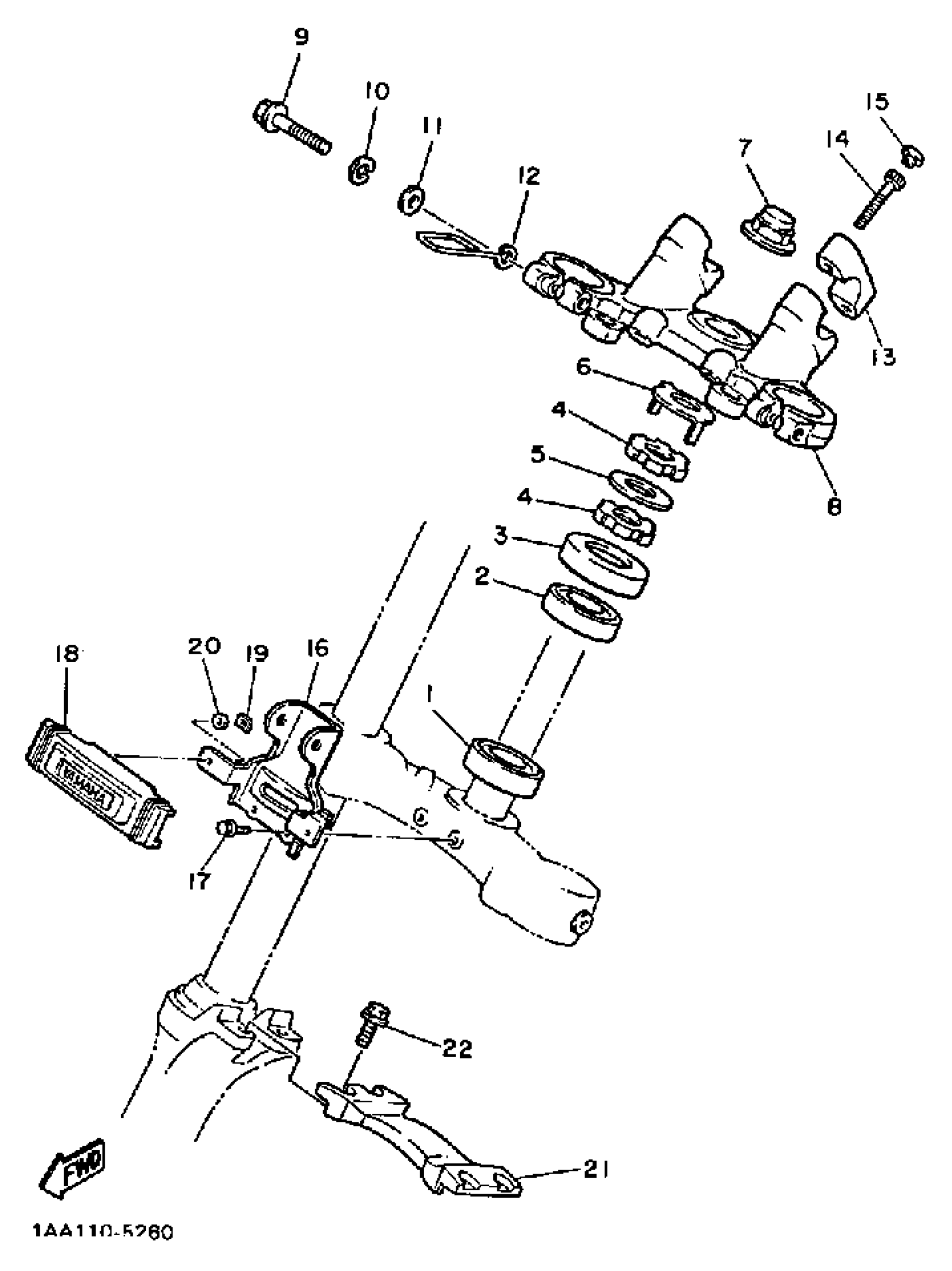

Find the part on the Steering diagram for your 1986 Yamaha Maxim X CA (XJ700XSC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Yamaha Maxim X CA (XJ700XSC) Steering Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BRG,CYL-CAL ROLLER 131G KY

93332-00008-00

1
Out of stock

2

BRG, TAPERED ROLLER (409)

93332-00001-00

1
Out of stock

3

COVER, BALL RACE 1

1J7-23415-00-00

1
Out of stock

4

NUT

90179-25004-00

1
Out of stock

5

WASHER, PLATE (26H)

90202-26142-00

1
Out of stock

6

WASHER, SPECIAL

26H-23418-01-00

1
Out of stock

7

NUT, CROWN(4FM)

90176-22081-00

1
Out of stock

8

CROWN, HANDLE

1AA-23435-00-38

1
Out of stock

9

BOLT, FLANGE (3JPE)

95024-08045-00

1
Out of stock

10

YBS67-8 WASHER, SPRING

92990-08100-00

1
Out of stock

11

.. WASHER, PLATE

92990-08600-00

1
Out of stock

12

HOLDER, CABLE

42X-23317-01-00

1
Out of stock

13

HOLDER, HANDLE UPPER

4H7-23441-01-38

—
Out of stock

14

BOLT,SOCKET

91314-08030-00

1
Out of stock

15

PLUG(42X)

90338-08163-00

1
Out of stock

16

STAY, HEADLIGHT

1AA-23174-00-00

1
Out of stock

17

BOLT, FLANGE(3DM)

95024-06020-00

—
Out of stock

18

COVER, OUTER 1 (90467-10041)

1AA-23122-00-00

1
Out of stock

19

NUT SPRING 116283170100

90183-04005-00

—
Out of stock

20

WASHER PLATE 174283160000

90202-04003-00

—
Out of stock

21

BRACE, FORK

42X-2313A-00-00

1
Out of stock

22

BOLT, FLANGE(2UJ)

95024-08020-00

—
Out of stock
