1986 Yamaha Maxim X CA (XJ700XSC) Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 1986 Yamaha Maxim X CA (XJ700XSC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

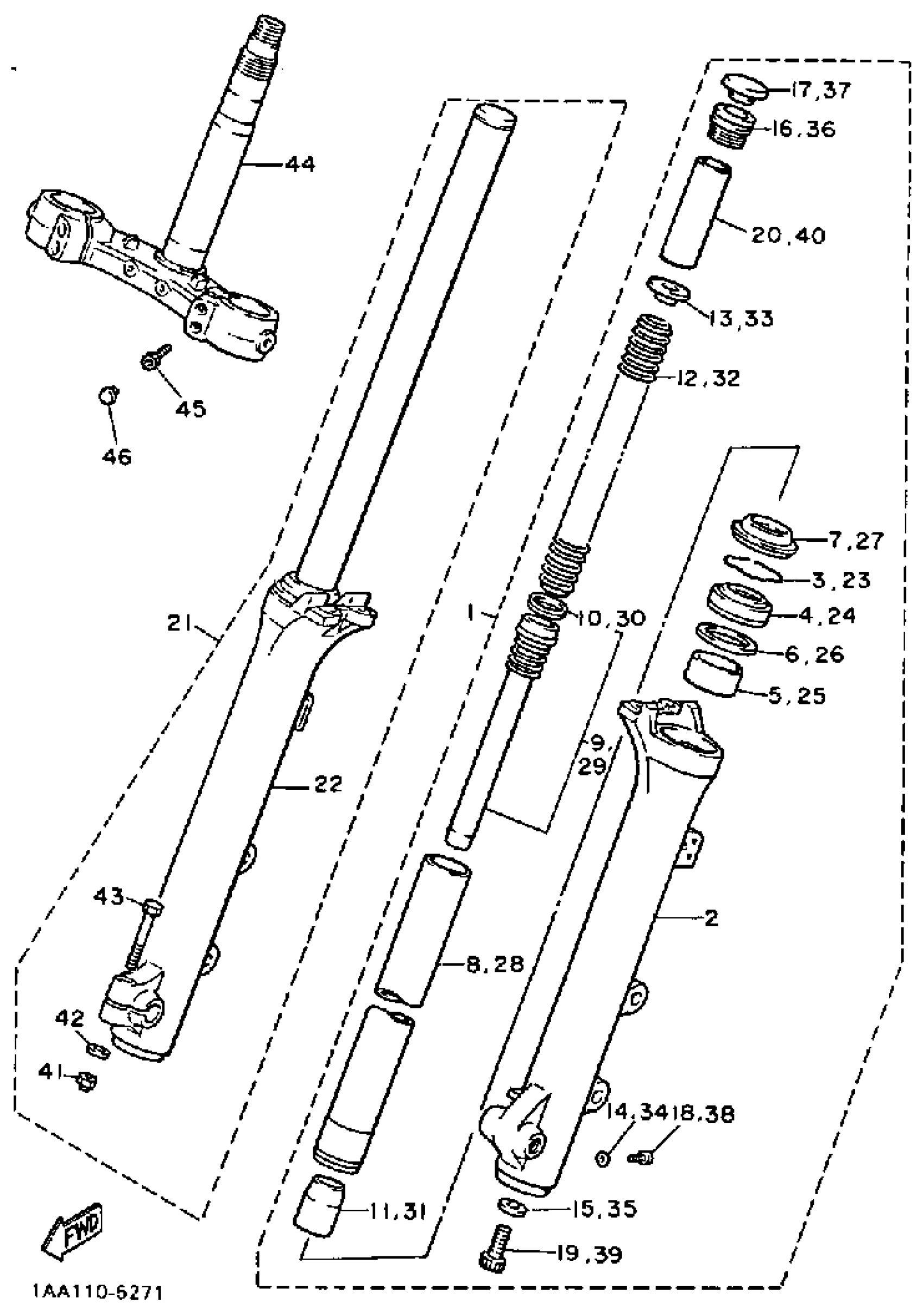

1986 Yamaha Maxim X CA (XJ700XSC) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FORK ASSEMBLY L

1AA-23102-00-00

1
Out of stock

2

TUBE,OUTER(LEFT)

3JK-23126-10-00

1
Out of stock

3

. UNAVAILABLE IN PRICE BOOK

34R-23153-00-00

1
Out of stock

4

OIL SEAL

3EN-23145-00-00

1

$22.96

In stock

5

METAL, SLIDE 1

2YK-23125-00-00

1
Out of stock

6

WASHER

4V2-23146-L0-00

1
Out of stock

7

SEAL, DUST

42X-23144-01-00

—

$24.19

In stock

8

. INNER TUBE 1

1AA-23110-00-00

1
Out of stock

9

CYLINDER, FRTFRK

(1AA-23170-00-00)

1
Out of stock

10

.. RING, PISTON FRTFRK

31A-23157-00-00

1
Out of stock

11

TAPER SPINDLE

1W1-23173-L0-00

1

$15.98

In stock

12

. SPRING, FRONT FORK

1AA-23141-00-00

1
Out of stock

13

. SEAT, SPRING UPPER

1W1-23142-L0-00

1
Out of stock

14

GASKET, DRAIN PLUG

122-23129-00-00

1

$6.37

In stock

15

GASKET

509-23158-L0-00

1

$14.34

In stock

16

. BOLT, CAP

1AA-23111-00-00

1
Out of stock

17

. CAP, FRONT FORK

1AA-23168-00-00

1
Out of stock

18

SCREW, PAN HEAD(3XP)

98517-04006-00

1

$4.10

In stock

19

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

—

$7.65

In stock

20

. SPACER

42H-23118-00-00

1
Out of stock

21

FRONT FORK ASSEMBLY R

1AA-23103-00-00

1
Out of stock

22

TUBE,OUTER(RIGHT)

3JK-23136-10-00

1
Out of stock

23

RING, SNAP

3R4-23153-00-00

—

$7.51

In stock

24

OIL SEAL

3EN-23145-00-00

1

$22.96

In stock

25

METAL, SLIDE 1

2YK-23125-00-00

1
Out of stock

26

WASHER

4V2-23146-L0-00

1
Out of stock

27

SEAL, DUST

42X-23144-01-00

—

$24.19

In stock

28

. INNER TUBE 1

1AA-23110-00-00

1
Out of stock

29

CYLINDER, FRTFRK

(1AA-23170-00-00)

1
Out of stock

30

.. RING, PISTON FRTFRK

31A-23157-00-00

1
Out of stock

31

TAPER SPINDLE

1W1-23173-L0-00

1

$15.98

In stock

32

. SPRING, FRONT FORK

1AA-23141-00-00

1
Out of stock

33

. SEAT, SPRING UPPER

1W1-23142-L0-00

1
Out of stock

34

GASKET, DRAIN PLUG

122-23129-00-00

1

$6.37

In stock

35

GASKET

509-23158-L0-00

1

$14.34

In stock

36

. BOLT, CAP

1AA-23111-00-00

1
Out of stock

37

. CAP, FRONT FORK

1AA-23168-00-00

1
Out of stock

38

SCREW, PAN HEAD(3XP)

98517-04006-00

1

$4.10

In stock

39

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

—

$7.65

In stock

40

. SPACER

42H-23118-00-00

1
Out of stock

41

NUT, U

95617-08100-00

—

$6.78

In stock

42

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

43

BOLT (1E6)

90101-08340-00

—

$2.72

In stock

44

UNDER BRACKET

1AA-23340-00-00

1
Out of stock

45

BOLT,SOCKET

91314-08030-00

—

$2.29

In stock

46

PLUG(42X)

90338-08163-00

—
Out of stock
