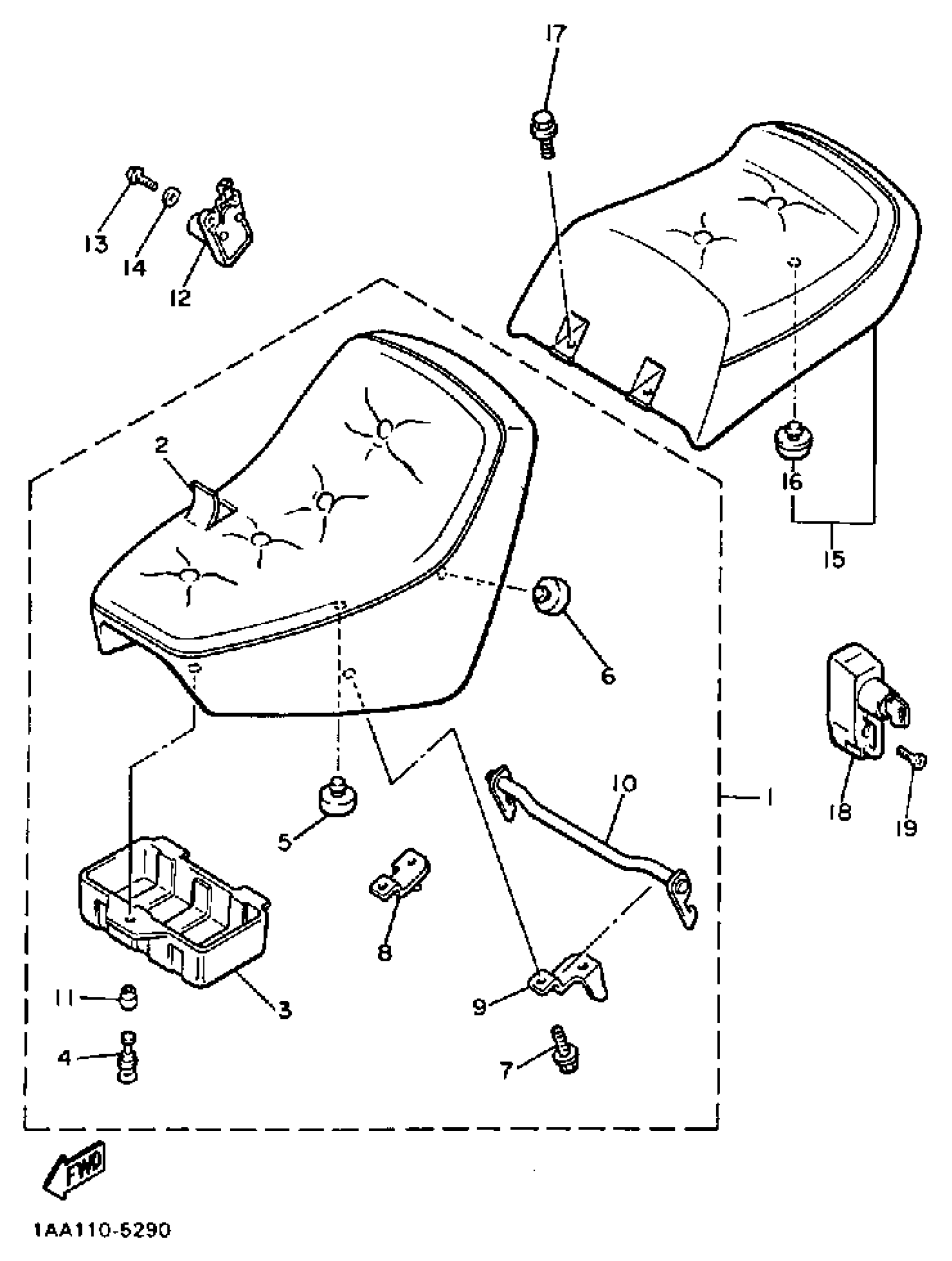

Yamaha XJ700XSC (MAXIM X CA) 1986 SEAT Diagram
#
Description
Price
1
SINGLE SEAT ASSEMBLY (1AA-24710-10)
1AA-24710-11-00
Unavailable
2
COVER, SINGLE SEAT (1AA-24711-10)
1AA-W2478-00-00
Unavailable
3
. BOX 1
1AA-2473R-00-00
Unavailable
4
. PLUNGER
4X7-2473V-02-00
Unavailable
8
BRACKET, SEAT
(1AA-24738-00-00)
Unavailable
9
BRACKET, SEAT
(1AA-24728-00-00)
Unavailable
10
. LEVER, SEAT
1AA-24776-00-00
Unavailable
11
. GROMMET
4X7-24742-02-00
Unavailable
12
SEAT LOCK ASSEMBLY (10L-24705-00)
23W-24705-00-00
Unavailable
15
TANDEM SEAT ASSEMBLY
1NH-24750-00-00
Unavailable
16
PAD, SEAT
1L9-24741-00-00
Unavailable
17
BOLT, WITH WASHER
90119-06226-00
Unavailable
18
HELMET HANGER ASSY
26H-21308-01-00
Unavailable
19
SCREW (4G1)
90149-06154-00
Unavailable
