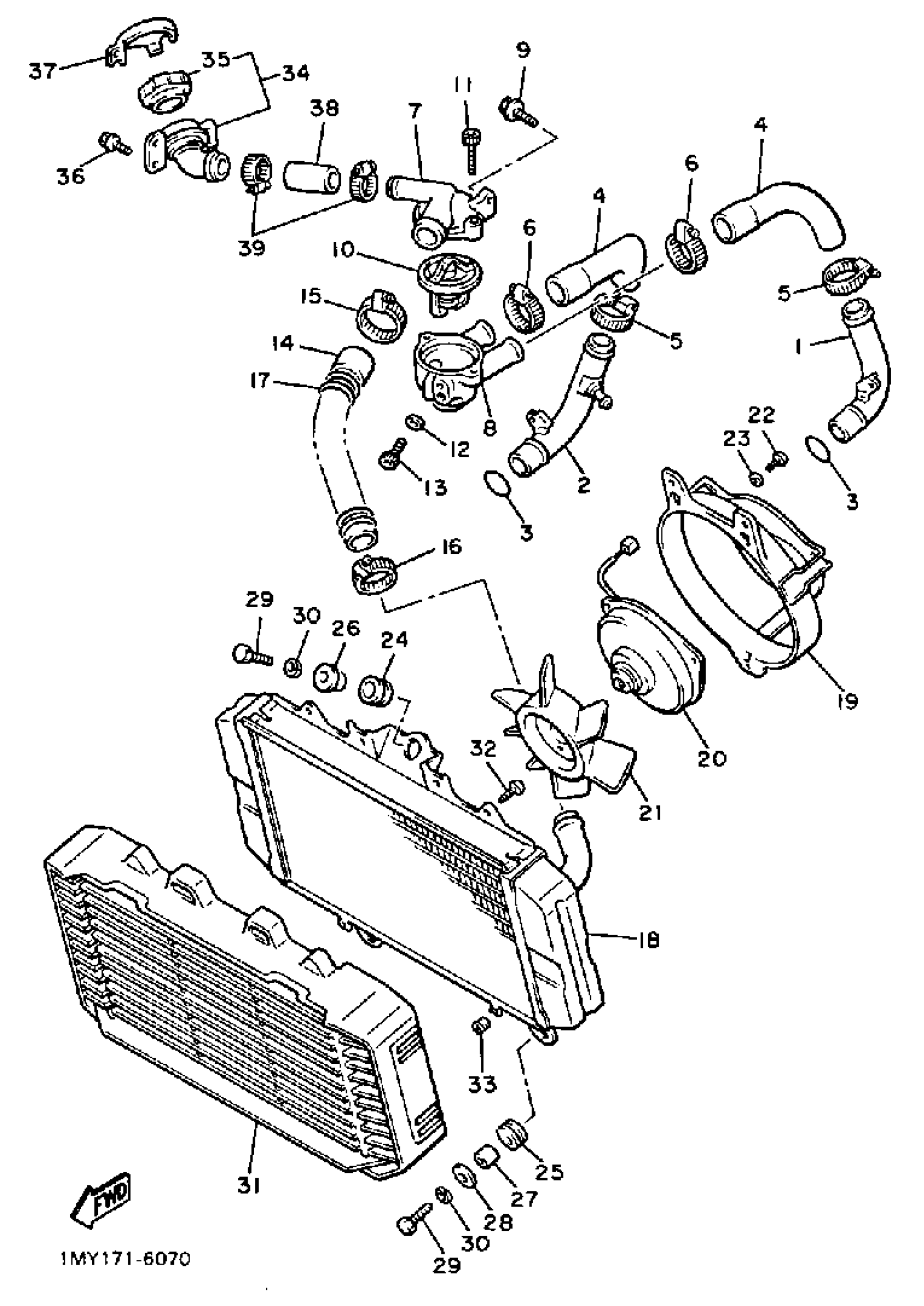

Yamaha XJ700XSC (MAXIM X CA) 1986 RADIATOR HOSE Diagram

#

Description
Price

1

PIPE 4

1AA-12484-00-00

Unavailable

2

PIPE 5

1AA-12485-00-00

Unavailable

3

O-RING (716)

93210-18417-00

$7.49

4

HOSE, 4

1AA-12579-00-00

Unavailable

5

CLAMP, HOSE

(90460-30249-00)

Unavailable

6

BAND

90460-27219-00

Unavailable

7

COVER, THERMOSTAT

1AA-12413-00-00

Unavailable

8

HOUSING, THERMOSTAT

(1AA-12417-00-00)

Unavailable

9

BOLT, FLANGE

95817-06020-00

$3.81

10

THERMOSTAT ASSY

3GM-12410-01-00

Unavailable

11

BOLT,SOCKET

91317-06025-00

$5.60

12

GASKET 256113960000

90430-06014-00

Unavailable

13

BOLT,SOCKET

91317-06010-00

$9.49

14

HOSE 2

1AA-12577-00-00

Unavailable

15

HOSE CLAMP ASSY(3GM)

90450-38040-00

$17.99

16

BAND

90460-27219-00

Unavailable

17

SPRING, COMPRESSION

(90501-144A6-00)

Unavailable

18

RADIATOR ASSEMBLY

1AA-12461-00-00

Unavailable

19

AIR SHROUD ASSEMBLY

1AA-12620-00-00

Unavailable

20

MOTOR ASSEMBLY

1AA-12630-00-00

Unavailable

21

FAN

1UF-12611-00-00

Unavailable

22

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

23

WASHER, PLAIN (646)

92990-05600-00

Unavailable

24

GROMMET (4L0)

90480-18276-00

Unavailable

25

GROMMET(1AA)

90480-18435-00

Unavailable

26

COLLAR 8111266500

90387-07037-00

Unavailable

27

COLLAR

90387-085G2-00

Unavailable

28

WASHER, PLATE (J10)

90201-06697-00

Unavailable

29

BOLT, HEXAGON

97017-06025-00

Unavailable

30

WASHER, SPRING

92907-06100-00

Unavailable

31

COVER, RADIATOR

1AA-12467-00-00

Unavailable

32

SCREW, PAN TAP.2

97707-60514-00

Unavailable

33

GROMMET

90480-01438-00

Unavailable

34

CONDUCTION ASSEMBLY

(1AA-12590-00-00)

Unavailable

35

CAP, RADIATOR

1B3-12462-00-00

Unavailable

36

BOLT, FLANGE

95817-06016-00

Unavailable

37

COVER 2

1AA-1246E-00-00

Unavailable

38

HOSE 1

(1AA-12576-00-00)

Unavailable

39

CLAMP, HOSE

(90460-30249-00)

Unavailable
