Description

Price

1

HOLDER, LEVER 1

11U-82911-00-00

$77.99

2

LEVER 1

1AA-83912-11-00

$51.99

3

SWITCH

3Y6-82917-00-00

Unavailable

4

BOLT (2YK1)

90109-06799-00

$4.99

5

O-RING (2H7)

93210-11368-00

$5.60

6

NUT, SELF-LOCKING

95617-06100-00

$8.49

7

BOLT, HEXAGON

97007-06022-00

Unavailable

8

WASHER, SPRING

92907-06100-00

$4.25

9

LEVER 2

57A-83922-01-00

Unavailable

10

BOLT (4L0)

90109-06577-00

$5.60

11

NUT, SELF-LOCKING

95617-06100-00

$8.49

12

SCREW (2L0)

90149-06131-00

$8.49

13

NUT HEXAGON 306839270000

90170-06010-00

$8.49

14

SPRING COMPRESSION306839240000

90501-10312-00

$8.49

15

FRONT STOP SWITCH ASSY

3YF-83980-00-00

$47.99

16

SWITCH, HANDLE 3

2UJ-83973-00-00

Unavailable

17

SCREW, PAN

98507-05035-00

Unavailable

18

COVER, STARTER

10M-83942-00-00

Unavailable

19

LEVER, STARTER

10M-83941-00-00

Unavailable

20

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

21

SCREW, PAN

98517-06008-00

Unavailable

22

WASHER, SPRING

92995-06100-00

Unavailable

23

SPACER

1AA-8397X-00-00

Unavailable

24

BAND, SWITCH CORD

437-83936-01-00

Unavailable

25

SWITCH, HANDLE 2 (1AA-83975-00)

42X-83975-01-00

Unavailable

26

SCREW, PAN

98507-05040-00

Unavailable

27

SCREW, PAN

98507-05045-00

Unavailable

28

BAND, SWITCH CORD

437-83936-01-00

Unavailable

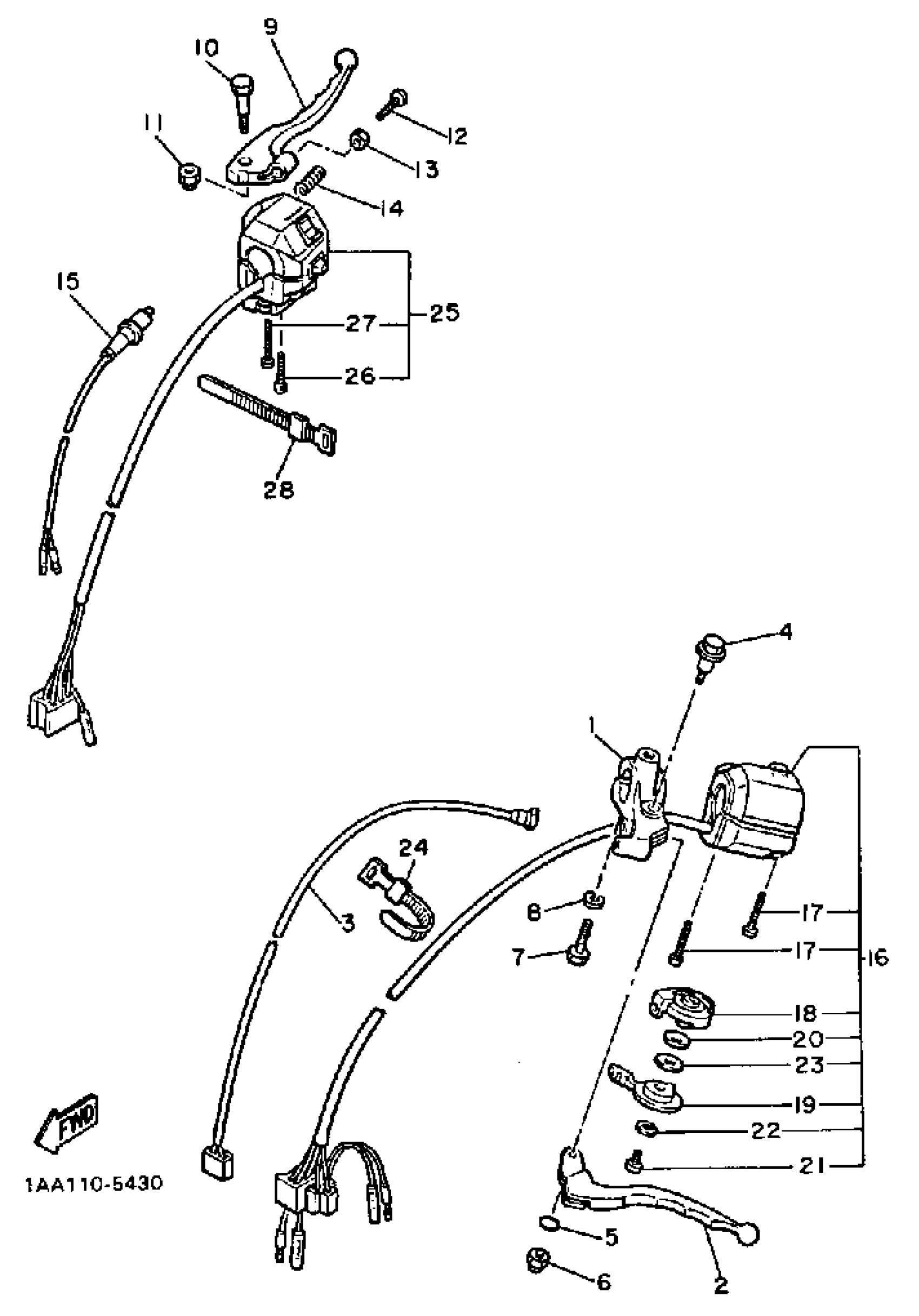

Yamaha XJ700XSC (MAXIM X CA) 1986 HANDLE SWITCH LEVER Diagram

HOLDER, LEVER 1

LEVER 1

SWITCH

BOLT (2YK1)

O-RING (2H7)

NUT, SELF-LOCKING

BOLT, HEXAGON

WASHER, SPRING

LEVER 2

BOLT (4L0)

NUT, SELF-LOCKING

SCREW (2L0)

NUT HEXAGON 306839270000

SPRING COMPRESSION306839240000

FRONT STOP SWITCH ASSY

SWITCH, HANDLE 3

SCREW, PAN

COVER, STARTER

LEVER, STARTER

YBS66-6 WASHER, PLAIN

SCREW, PAN

WASHER, SPRING

SPACER

BAND, SWITCH CORD

SWITCH, HANDLE 2 (1AA-83975-00)

SCREW, PAN

SCREW, PAN

BAND, SWITCH CORD
