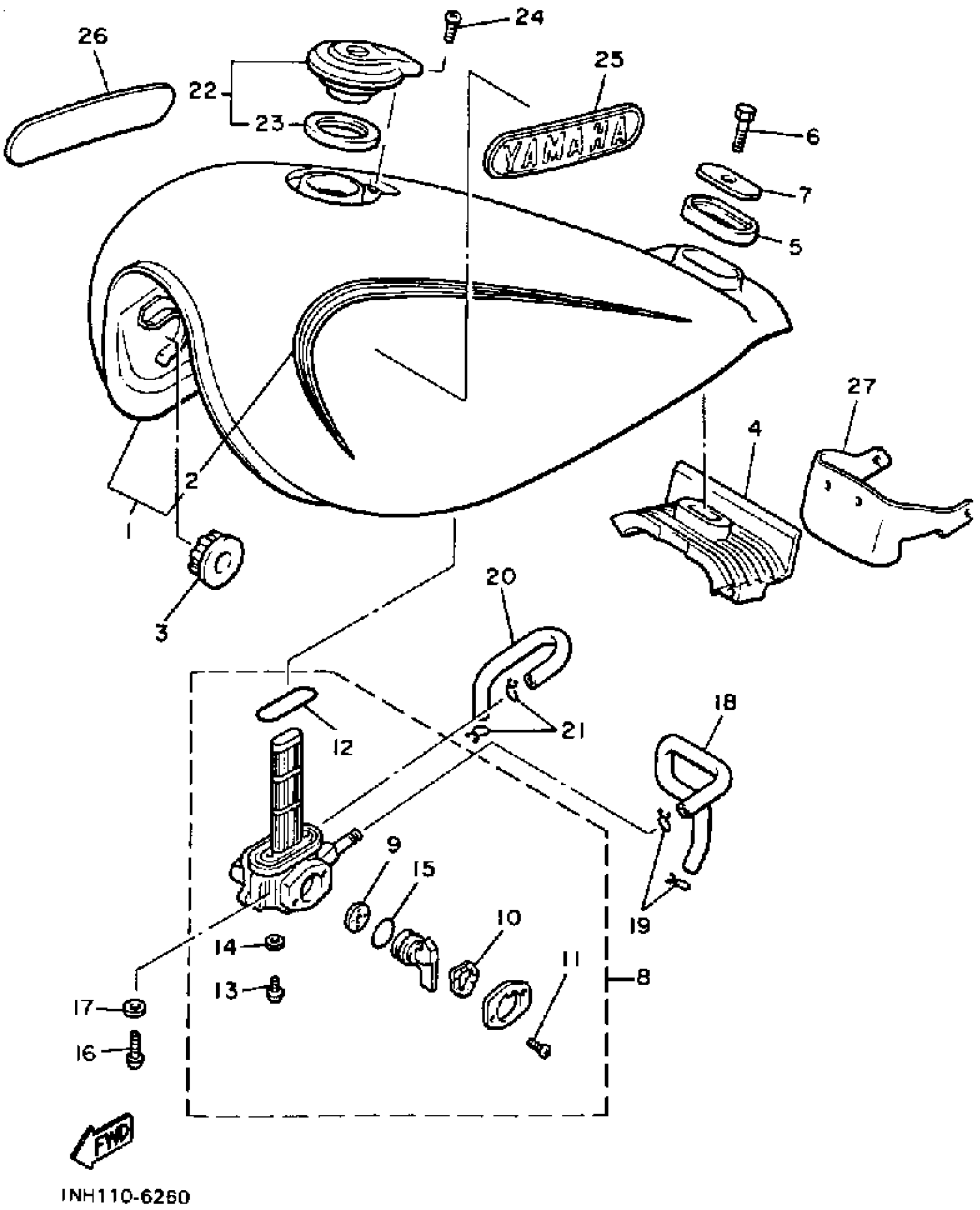

Yamaha XJ700XSC (MAXIM X CA) 1986 FUEL TANK XJ700XS Diagram

#

Description
Price

1

FUEL TANK

1AA-24110-00-03

Unavailable

1

FUEL TANK

1AA-24110-00-04

Unavailable

2

. GRAPHIC SET

1MY-24240-00-00

Unavailable

2

. GRAPHIC SET

1MY-24240-10-00

Unavailable

3

DAMPER, LOCATING 1

26H-24181-00-00

$6.99

4

DAMPER, LOCATING 2

1AA-24182-00-00

Unavailable

5

DAMPER, LOCATING 3

3Y6-24183-00-00

$7.99

6

BOLT, HEXAGON

97013-08030-00

$2.49

7

WASHER, SPECIAL

12R-24186-00-00

$9.99

8

FUEL COCK ASSY 1

31A-24500-02-00

$237.99

9

VALVE

16G-24523-00-00

$28.99

10

. WASHER, WAVE

16G-24518-00-00

Unavailable

11

SCREW, PAN HEAD (J10)

98580-03008-00

$3.55

12

O-RING

2G2-24512-00-00

$10.99

13

SCREW, PAN HEAD(6A3)

97885-06008-00

Unavailable

14

GASKET, DRAIN PLUG

2G2-24522-00-00

Unavailable

15

O-RING

2G2-24534-00-00

Unavailable

16

SCREW 366241430000

90149-06008-00

Unavailable

17

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

18

PIPE, FUEL 1

1AA-24311-00-00

Unavailable

19

CLIP

90467-100A1-00

Unavailable

20

HOSE

90445-09531-00

Unavailable

21

CLIP (16G)

90467-08021-00

Unavailable

22

CAP ASSY

4X7-24602-10-00

Unavailable

23

GASKET, TANK CAP

4X7-24612-00-00

Unavailable

24

SCREW, PAN HEAD(3LA)

98517-05010-00

Unavailable

25

EMBLEM 1

1NH-24161-11-00

Unavailable

26

EMBLEM 2

1NH-24162-11-00

Unavailable

27

PLATE

1AA-2176E-00-00

Unavailable
