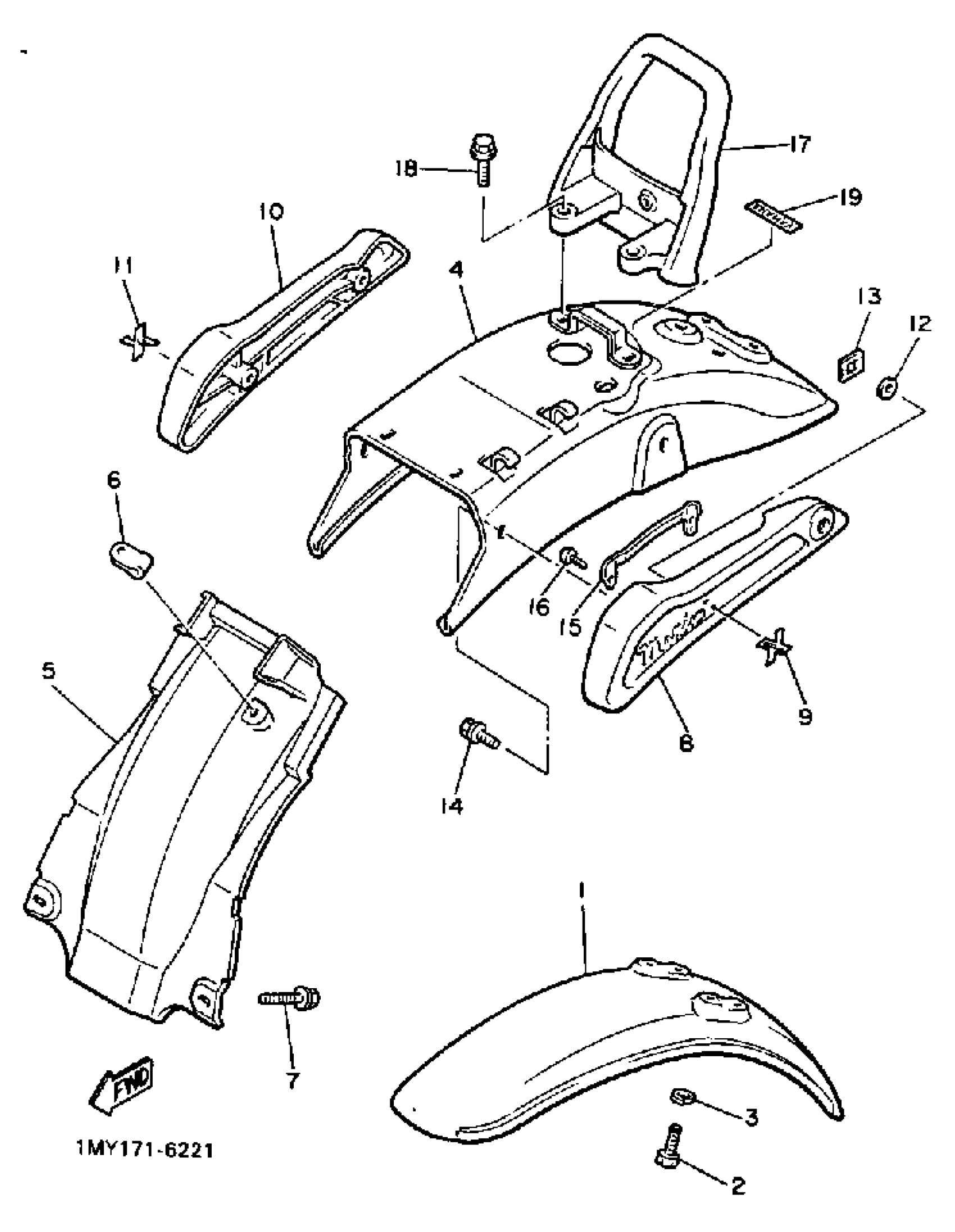

Yamaha XJ700XSC (MAXIM X CA) 1986 FENDER Diagram

#

Description
Price

1

FENDER,FRONT

1MY-21510-00-FF

Unavailable

1

FENDER, FRONT

1MY-21510-00-MX

Unavailable

2

BOLT (661)

97013-06012-00

$5.60

3

WASHER, SPRING

92995-06100-00

Unavailable

4

FENDER, REAR

1AA-21610-00-6G

Unavailable

4

FENDER, REAR

1AA-21610-00-MX

Unavailable

5

GUARD, MUD

1AA-21629-00-00

Unavailable

6

CLAMP (1J7)

90464-16021-00

$12.49

7

BOLT, WITH WASHER

(90119-06095-00)

Unavailable

8

STAY, FENDER 1

1AA-21613-00-00

Unavailable

9

EMBLEM 1

1AA-2163G-00-00

Unavailable

10

STAY, FENDER 2

1AA-21614-00-00

Unavailable

11

EMBLEM 2

1AA-2163H-00-00

Unavailable

12

WASHER PLATE 174283160000

90202-04003-00

$8.49

13

NUT SPRING 116283170100

90183-04005-00

$10.49

14

BOLT, FLANGE(8AB)

95817-08020-00

Unavailable

15

CLAMP, WIRE

(1AA-21637-00-00)

Unavailable

16

SCREW, PAN TAP.2

97707-40506-00

Unavailable

17

GRIP 1

1AA-2164A-00-00

Unavailable

18

BOLT, FLANGE

95817-10030-00

Unavailable

19

EMBLEM, YAMAHA

99245-00080-00

Unavailable
