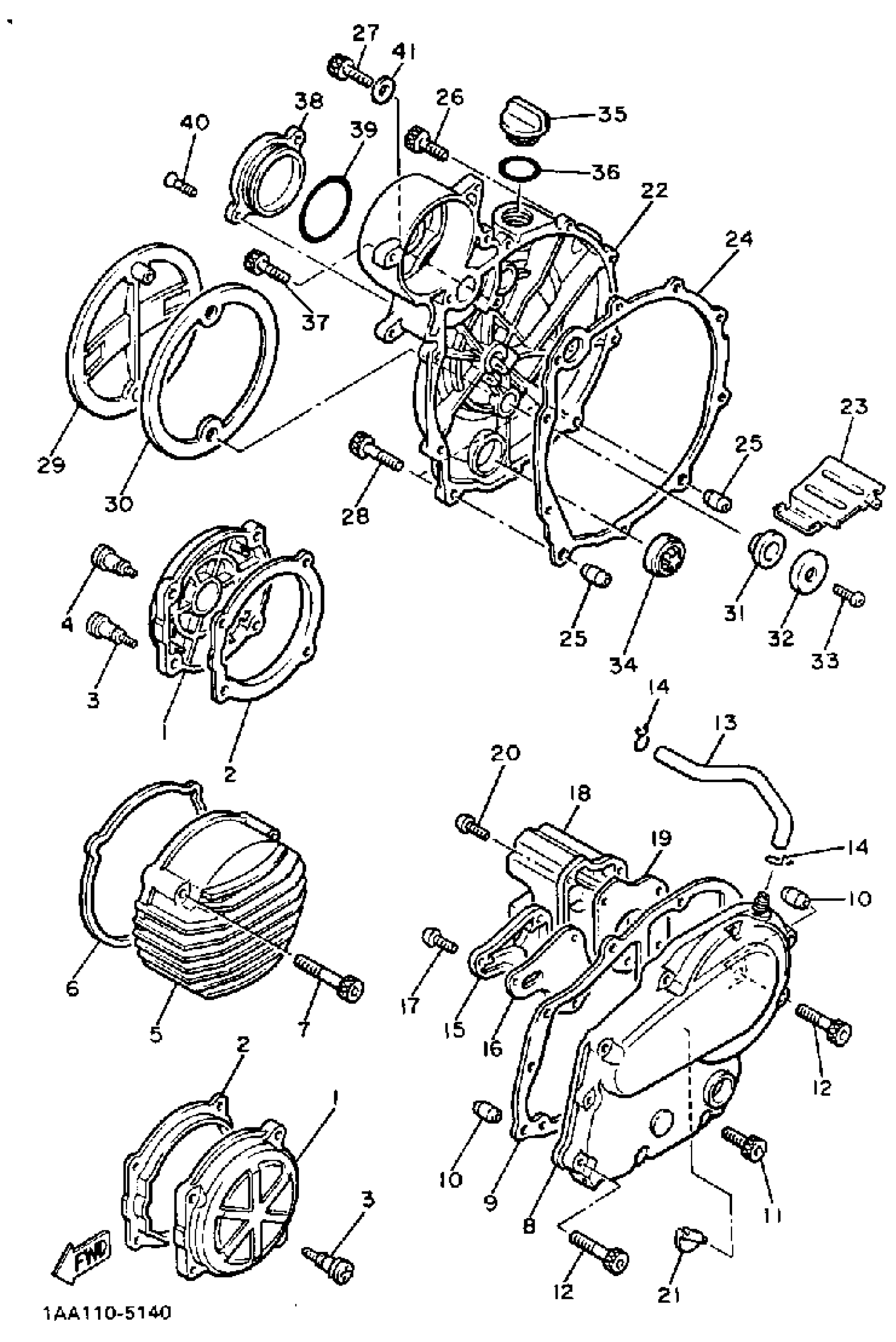

Yamaha XJ700XSC (MAXIM X CA) 1986 CRANKCASE COVER Diagram

COVER, OIL PUMP

1AA-15416-00-00

Unavailable

RING, RUBBER

33M-15449-00-00

$45.99

BOLT 1

33M-15481-00-00

Unavailable

BOLT 1

1NW-15481-00-00

Unavailable

COVER, GENERATOR

1AA-15415-00-00

Unavailable

GASKET 1

4BB-15455-00-00

$27.99

BOLT, SOCKET

91317-06070-00

$4.99

CRANKCASE CVR ASSEMBLY

1AA-15409-00-00

Unavailable

GASKET, CRANKCASE COVER 1

4BB-15451-00-00

$35.99

PIN, DOWEL(3VD)

99530-10114-00

$2.55

BOLT,SOCKET

91317-06025-00

$5.60

BOLT,SOCKET

91317-06040-00

$3.76

PIPE, BREATHER 1

1AA-11166-00-00

Unavailable

CLIP (371)

90467-14015-00

$8.49

BREATHER 1

(4H7-15346-00-00)

Unavailable

GASKET

4BB-15457-00-00

Unavailable

SCREW, PAN

98507-06014-00

Unavailable

BREATHER 2

4H7-15347-01-00

Unavailable

GASKET

4BB-15467-00-00

Unavailable

SCREW, PAN

98507-06014-00

Unavailable

GROMMET

4H7-15365-00-00

Unavailable

COVER, CRANKCASE R

1AA-15421-00-00

Unavailable

COVER, OIL PUMP

4H7-15412-01-00

Unavailable

GASKET,CRCS CVR 2

1AA-15461-10-00

Unavailable

PIN, DOWEL(3VD)

99530-10114-00

$2.55

BOLT,SOCKET

91317-06025-00

$5.60

BOLT, HEXAGON

97017-06025-00

Unavailable

BOLT,SOCKET

91317-06040-00

$3.76

COVER, CAP

1AA-15417-00-00

Unavailable

RING, RUBBER

4H7-15449-00-00

Unavailable

GROMMET

4H7-15486-00-00

Unavailable

WASHER (4H7)

90209-06096-00

Unavailable

SCREW, PAN

98507-06014-00

Unavailable

GAUGE, LEVEL

2H7-15361-00-00

Unavailable

PLUG, OIL

2H9-15363-00-00

Unavailable

O-RING(1KT)

93210-27778-00

Unavailable

BOLT,SOCKET

91317-06040-00

$3.76

COVER, CAP 2

1AA-15427-00-00

Unavailable

O-RING (4G0)

93210-56459-00

Unavailable

SCREW, FLAT

98707-06018-00

Unavailable

WASHER, PLATE

(90201-066J8-00)

Unavailable
