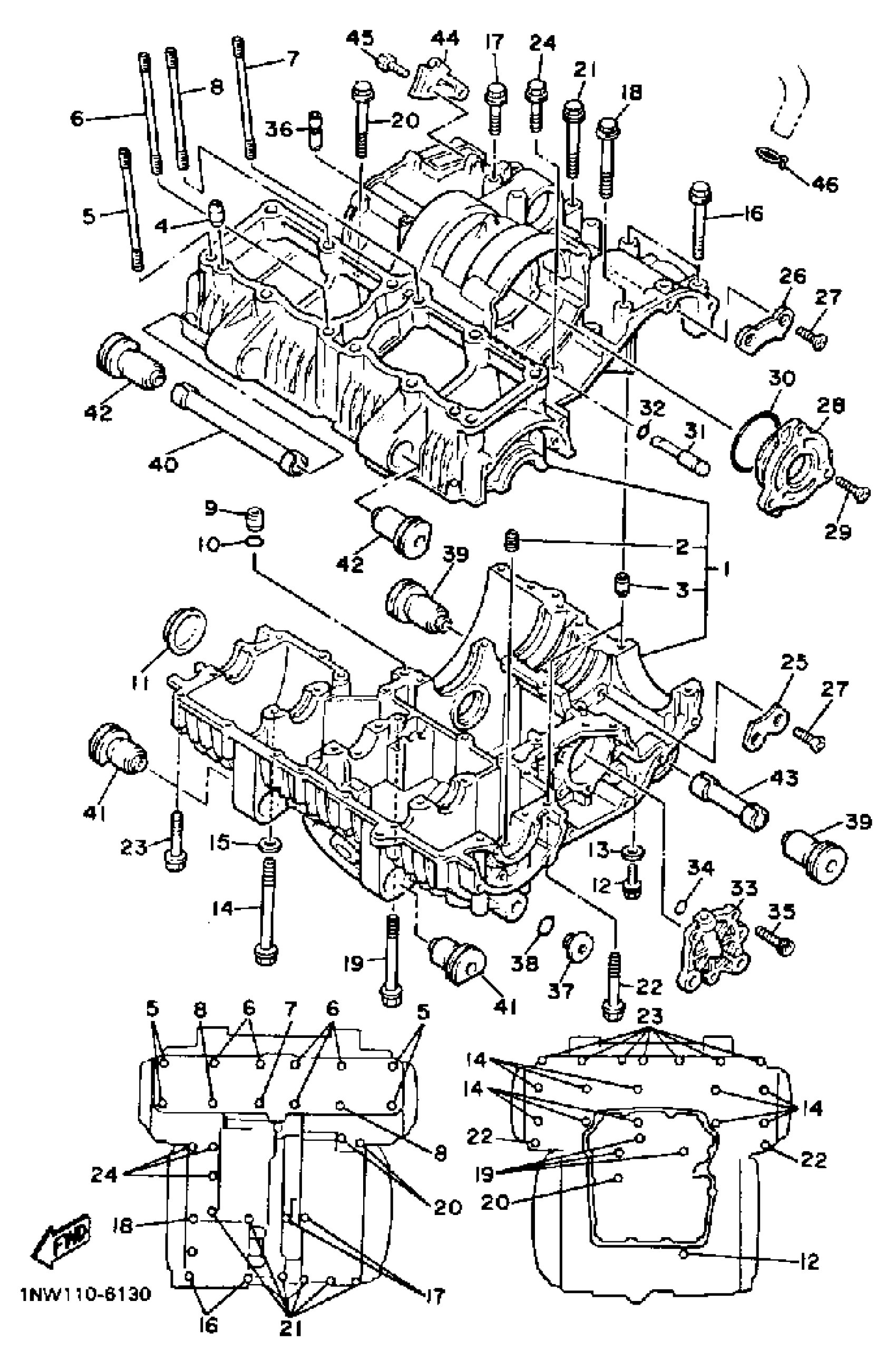

Yamaha XJ700XSC (MAXIM X CA) 1986 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSEMBLY

1AA-15100-00-00

Unavailable

2

NOZZLE

4KM-13572-01-00

$6.99

3

PIN, DOWEL

99530-12016-00

$4.89

4

PIN, DOWEL(3VD)

99530-10114-00

$2.55

5

BOLT, STUD

90116-09458-00

Unavailable

6

BOLT, STUD

90116-09459-00

Unavailable

7

BOLT, STUD

90116-09460-00

Unavailable

8

BOLT, STUD

(90116-09461-00)

Unavailable

9

PIN, DOWEL

99530-12016-00

$4.89

10

O-RING (371)

93210-11124-00

$7.49

11

PLUG (4H7)

4H7-15167-10-00

$19.99

12

BOLT, WASHER BASED(4JT)

90105-08729-00

$4.77

13

WASHER, PLATE 3411117500

90201-08087-00

$3.71

14

BOLT, FLANGE(4BD)

95817-08105-00

Unavailable

15

WASHER, PLATE (33N)

90201-094G1-00

$9.49

16

BOLT, FLANGE

95814-08065-00

Unavailable

17

BOLT, FLANGE

95817-06135-00

Unavailable

18

BOLT, FLANGE

(95816-06120-00)

Unavailable

19

BOLT, FLANGE

95817-06080-00

Unavailable

20

BOLT, FLANGE

95817-06070-00

Unavailable

21

BOLT, FLANGE

95817-06060-00

Unavailable

22

BOLT, FLANGE

95817-06055-00

Unavailable

23

BOLT, FLANGE

95814-08045-00

Unavailable

24

BOLT, FLANGE

95817-06035-00

Unavailable

25

PLATE, BRNG COVER

(31A-15381-00-00)

Unavailable

26

PLATE, BEARING COVER 2

31A-15383-00-00

Unavailable

27

SCREW

90149-08013-00

Unavailable

28

HOUSING, BEARING 1

4H7-15163-01-00

Unavailable

29

SCREW, COUNTERSUNK (4H7)

90151-06014-00

Unavailable

30

O-RING

93210-62439-00

Unavailable

31

NOZZLE

4H7-13454-00-00

Unavailable

32

O-RING (11M)

93210-07540-00

Unavailable

33

HOUSING, BEARING 2

16G-15164-00-00

Unavailable

34

O-RING

93210-07438-00

Unavailable

35

BOLT,SOCKET HEAD

91314-06020-00

Unavailable

36

PIPE, OIL

(1AA-15112-00-00)

Unavailable

37

PLUG

4H7-15189-00-00

Unavailable

38

O-RING (25G)

93210-20573-00

Unavailable

39

DAMPER, ENGINE MOUNT 3

1AA-15336-01-00

Unavailable

40

SPACER, ENG MOUNT (4W5-15317-00)

4H7-15317-00-00

Unavailable

41

DAMPER, ENGINE MOUNT 1

1AA-15316-01-00

Unavailable

42

DAMPER, ENGINE MOUNT 2

1AA-15326-00-00

Unavailable

43

SPACER, ENG MOUNT (4W5-15327-00)

4H7-15327-00-00

Unavailable

44

HOLDER, CLCH CABLE

(1AA-15441-00-00)

Unavailable

45

BOLT,SOCKET

91317-06012-00

Unavailable

46

CLAMP

90465-10290-00

Unavailable
