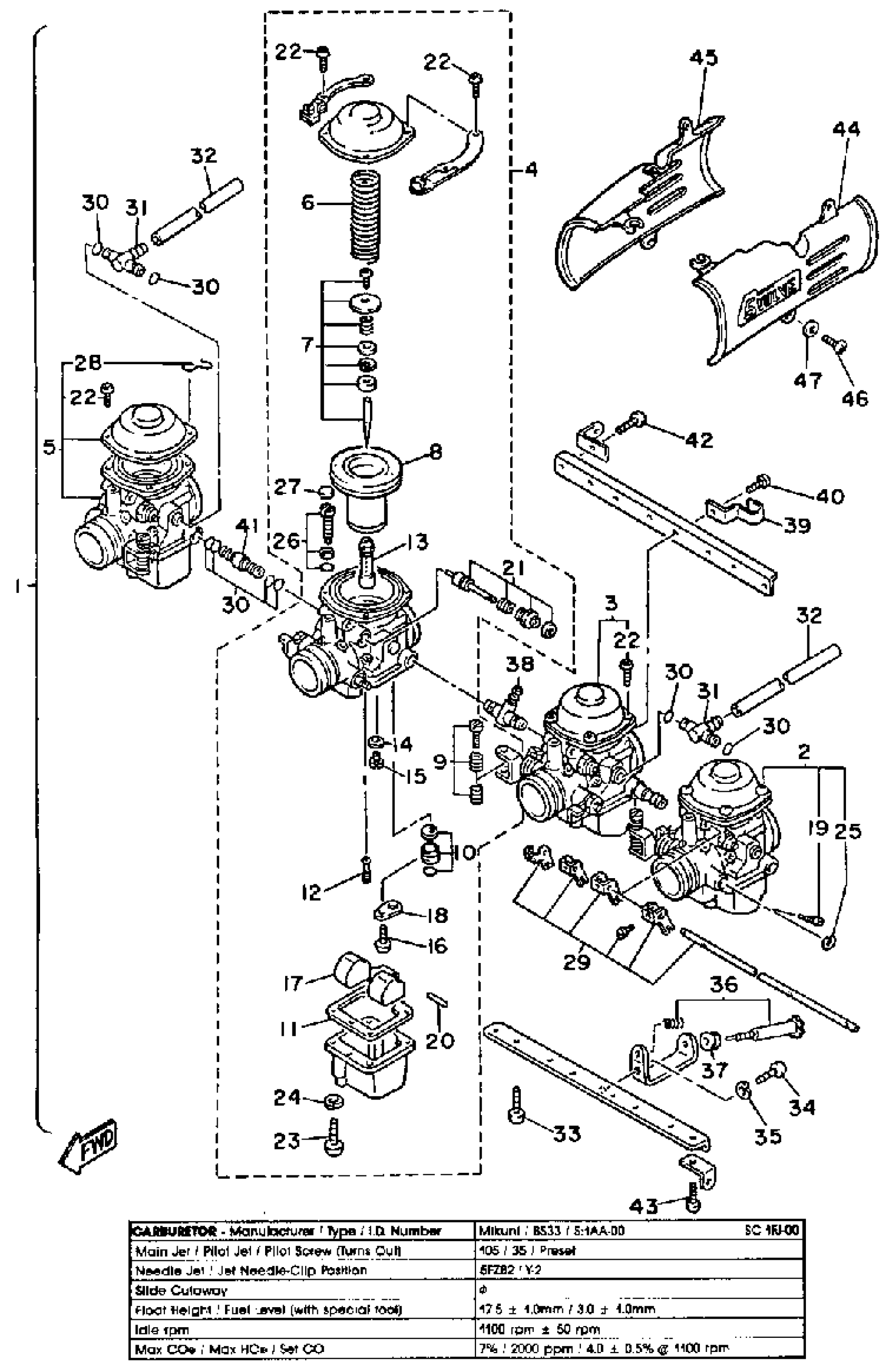

Yamaha XJ700XSC (MAXIM X CA) 1986 CARBURATOR Diagram

#

Description
Price

1

UNAVAILABLE IN PRICE BOOK

[1A-A1490-00-00

Unavailable

1

UNAVAILABLE IN PRICE BOOK

[1F-J1490-00-00

Unavailable

2

. CARBURETOR ASSEMBLY 1

1FJ-14901-00-00

Unavailable

3

CARBURETOR ASSEMBLY 2

(1AA-14902-00-00)

Unavailable

3

CARBURETOR ASSEMBLY 2

(1FJ-14902-00-00)

Unavailable

4

. CARBURETOR ASSEMBLY 3

1AA-14903-00-00

Unavailable

4

CARBURETOR ASSEMBLY 3

(1FJ-14903-00-00)

Unavailable

5

. CARBURETOR ASSEMBLY 4

1FJ-14904-00-00

Unavailable

6

.. SPRING, DIAPHRAGM

3F7-14933-00-00

Unavailable

7

.. UNAVAILABLE IN PRICE BOOK

AA1-490J0-00-0

Unavailable

8

.. DIAPHRAGM ASSEMBLY

1AA-14940-00-00

Unavailable

9

STOP SCREW SET

(31A-1490K-00-00)

Unavailable

10

NEEDLE VALVE SET

25G-14107-23-00

$49.99

11

GASKET, FLOAT CHAMBER

3XW-14984-00-00

$25.99

12

JET, PILOT (# 35)

4G0-14142-35-A0

Unavailable

13

. NOZZLE, MAIN

16H-14941-92-00

Unavailable

14

WASHER,MAIN JET

137-14153-00-00

Unavailable

15

JET, MAIN (#105)

620-14231-21-A0

Unavailable

16

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

17

FLOAT

3H5-14985-00-00

Unavailable

18

. PLATE

2H0-14146-00-00

Unavailable

19

PLUG, DRAIN

12R-14191-00-00

Unavailable

20

PIN, FLOAT

537-14186-00-00

Unavailable

21

.. STARTER SET

49A-1410A-00-00

Unavailable

22

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

23

SCREW, PAN HEAD(6B0)

97885-05016-00

Unavailable

24

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

25

CLIP

812-14137-00-00

Unavailable

26

PILOT SCREW SET

12R-14105-00-00

Unavailable

27

CAP

3F9-14118-00-00

Unavailable

28

CLIP

(1AA-14937-00-00)

Unavailable

29

STARTER LEVER SET

(1AA-1490L-00-00)

Unavailable

30

O-RING

36Y-14147-00-00

Unavailable

31

. PIPE, STARTER CON

4V7-14988-00-00

Unavailable

32

HOSE

(17A-14987-00-00)

Unavailable

33

SCREW, PAN

98507-06014-00

Unavailable

34

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

35

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

36

THROTTLE SCREW SET

(1AA-14103-00-00)

Unavailable

37

. BUSH

4G0-14998-00-00

Unavailable

38

NIPPLE, CARBURETOR JOINT

1J7-14988-00-00

Unavailable

39

CLIP, PIPE

(1AA-14139-00-00)

Unavailable

40

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

41

PIPE, STARTER CON

16H-14988-00-00

Unavailable

42

SCREW, PAN HEAD(6B0)

97885-05016-00

Unavailable

43

SCREW, PAN

98507-06014-00

Unavailable

44

COVER, CARB.JOINT

1AA-13564-00-00

Unavailable

45

COVER, MANIFOLD 2

1AA-13594-00-00

Unavailable

46

SCREW, BIND

98903-05010-00

Unavailable

47

. WASHER, PLAIN

92990-05200-00

Unavailable
