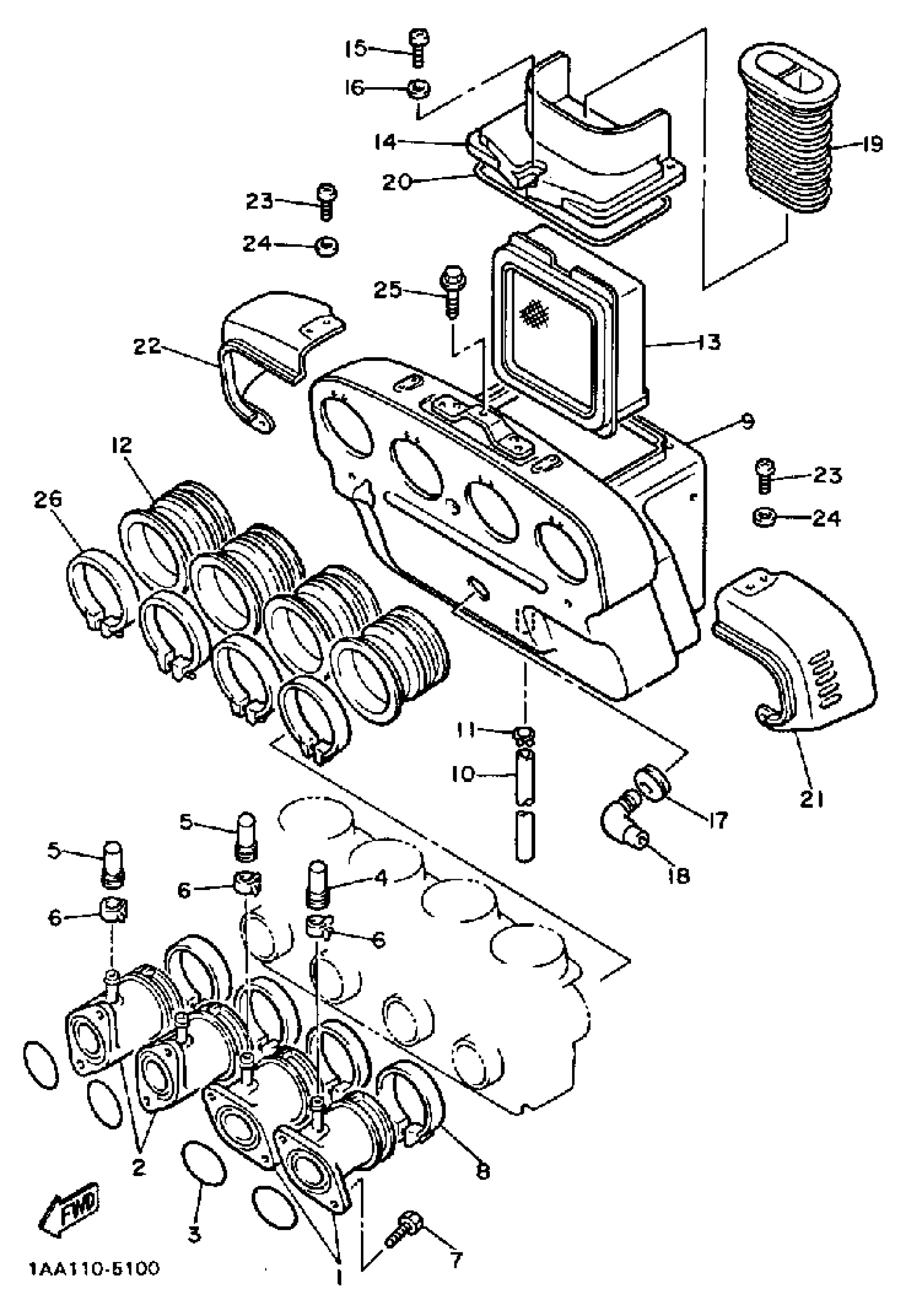

Yamaha XJ700XSC (MAXIM X CA) 1986 AIR CLEANER Diagram

#

Description
Price

1

JOINT, CARBURETOR 1

1AA-13586-00-00

Unavailable

2

JOINT, CARBURETOR 2

1AA-13596-00-00

Unavailable

3

O-RING (5Y1)

93210-37532-00

$8.49

4

PLUG, BLIND

16G-13569-00-00

$7.99

5

PLUG, BLIND

1AA-13569-00-00

Unavailable

6

CLIP (3G0)

90467-10039-00

$9.49

7

BOLT,SOCKET

91317-06020-00

Unavailable

8

CLAMP, HOSE (90460-52210-00)

90460-52264-00

Unavailable

9

AIR CLNR CASE ASSEMBLY

1AA-14401-00-00

Unavailable

10

HOSE (L370)

90445-112E1-00

$23.99

11

CLIP

90467-090A2-00

$4.41

12

JOINT, AIR CLEANER 1

1AA-14453-00-00

$33.99

13

ELEMENT, AIR CLEANER

1AA-14451-00-00

$64.99

14

CAP, CLEANER CASE 1

1AA-14412-00-00

Unavailable

15

SCREW, PAN HEAD

98580-05020-00

Unavailable

16

WASHER, PLAIN (646)

92990-05600-00

Unavailable

17

GROMMET

31A-14435-01-00

Unavailable

18

PIPE

31A-14419-00-00

Unavailable

19

DUCT

1AA-14437-00-00

Unavailable

20

SEAL

51Y-14462-00-00

Unavailable

21

COVER, CLNR CASE 1

1AA-1441A-00-00

Unavailable

22

COVER, CLNR CASE 2

1AA-1441E-00-00

Unavailable

23

SCREW, TAPPING(61A)

97780-50612-00

Unavailable

24

. WASHER, PLAIN

92990-05200-00

Unavailable

25

BOLT, WITH WASHER (4L6)

90119-06029-00

Unavailable

26

HOSE CLAMP ASSY

90450-58002-00

Unavailable
