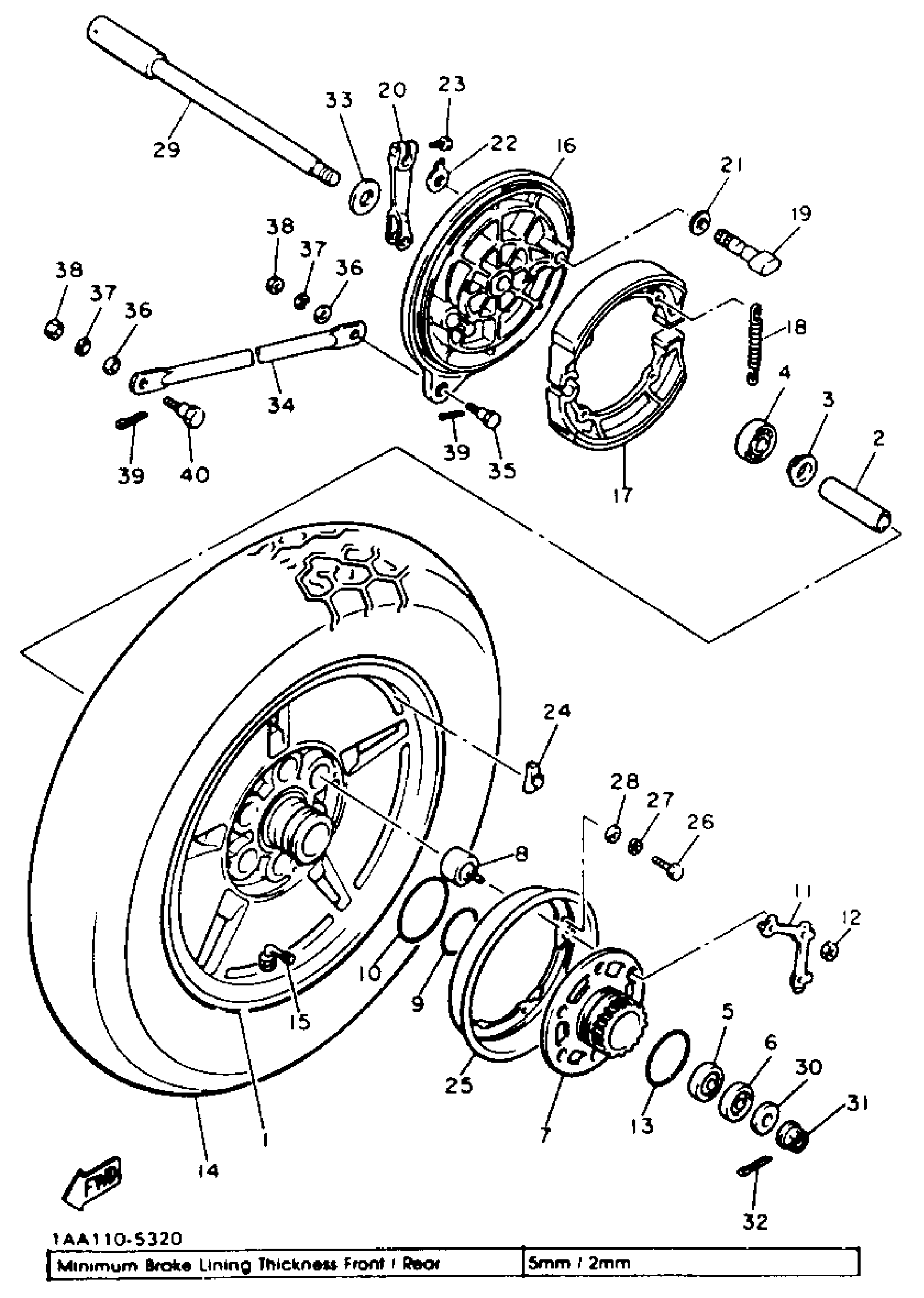

Yamaha XJ700XNC (MAXIM X CA) BH19356 1985 REAR WHEEL Diagram
#
1
WHEEL, CAST REAR
1AA-25338-00-98
Unavailable
2
SPACER
90560-17125-00
Unavailable
8
DAMPER
42H-25364-00-00
Unavailable
14
130/90-16 G528 BS
94113-161J2-00
Unavailable
16
PLATE BRAKE SHOE
4K0-25321-01-00
Unavailable
17
BRAKE SHOE KIT
3DR-W253E-00-00
Unavailable
18
SPRING, TENSION 2462533300
90507-20002-00
Unavailable
19
CAMSHAFT
4H7-25351-00-00
Unavailable
20
LEVER, CAMSHAFT
4V8-25355-00-00
Unavailable
21
WASHER, PLATE (3X3)
90201-15797-00
Unavailable
22
PLATE, INDICATOR
4H7-2533A-02-00
Unavailable
23
BOLT, HEXAGON (462)
90101-06291-00
Unavailable
24
BALANCER, WHEEL
5MT-25398-00-00
Unavailable
24
BALANCER, WHEEL
5MT-25398-10-00
Unavailable
24
BALANCER, WHEEL
5MT-25398-20-00
Unavailable
25
COVER, PLATE
16G-25327-00-00
Unavailable
26
BOLT, HEXAGON
97013-05020-00
Unavailable
27
YBS67-5 WASHER, SPRING
92990-05100-00
Unavailable
28
WASHER, PLAIN (646)
92990-05600-00
Unavailable
29
AXLE, WHEEL
4H7-25381-00-00
Unavailable
30
WASHER, PLATE
90201-14022-00
Unavailable
31
NUT, CASTLE (4V7)
90171-14031-00
Unavailable
32
PIN, COTTER
91490-30030-00
Unavailable
33
COLLAR, WHEEL
4H7-25377-00-00
Unavailable
34
BAR, TENSION
3H0-25371-00-00
Unavailable
35
BOLT (537 TENSION BAR)
90109-08406-00
Unavailable
36
.. WASHER, PLATE
92990-08600-00
Unavailable
37
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
38
. NUT
95380-08700-00
Unavailable
39
PIN, COTTER
91490-20025-00
Unavailable
40
BOLT (183-25378-00)
90109-08368-00
Unavailable
