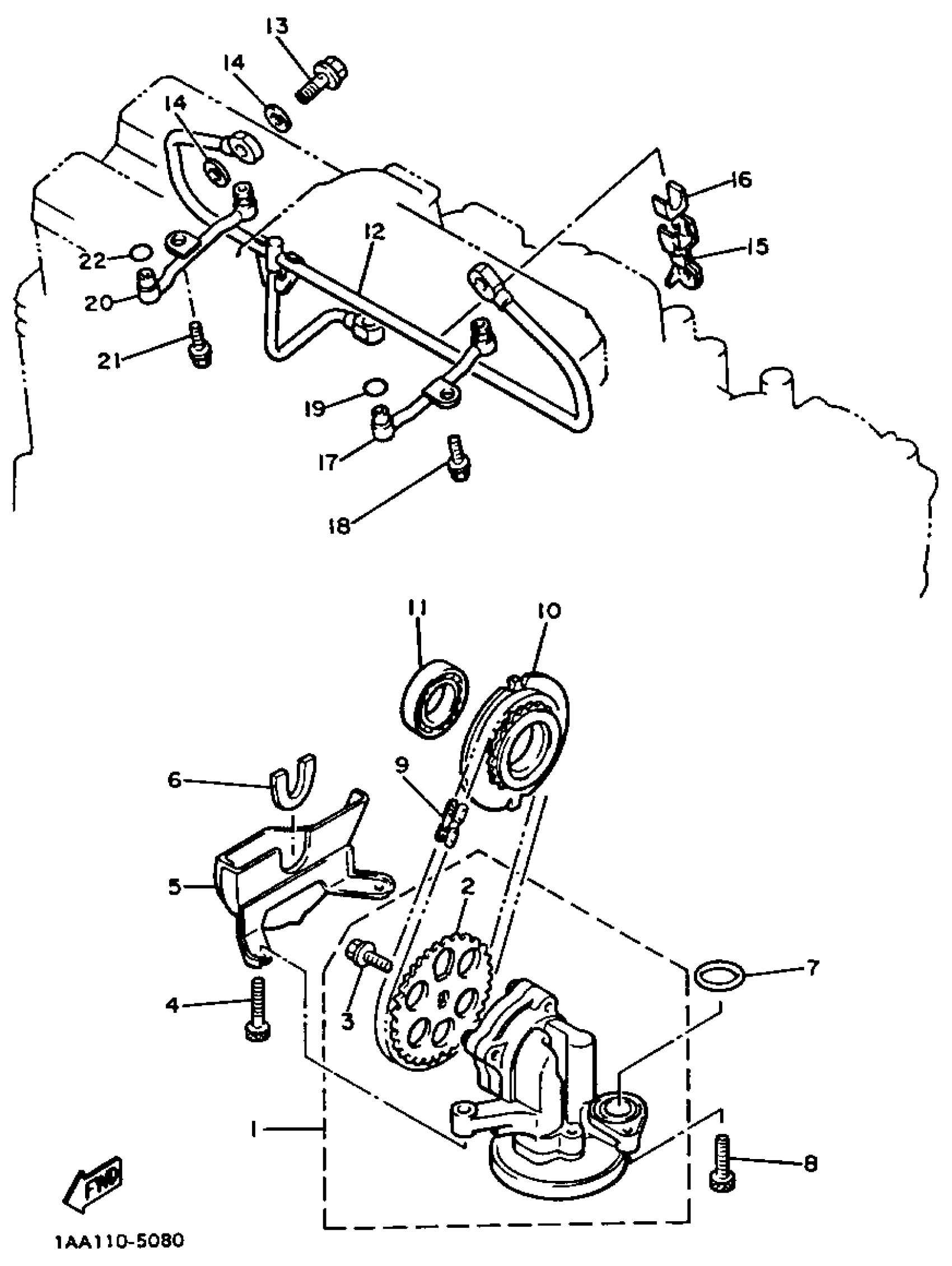

Yamaha XJ700XNC (MAXIM X CA) BH19356 1985 OIL PUMP Diagram

#

Description
Price

1

OIL PUMP ASSEMBLY

5G2-13300-00-00

Unavailable

2

. SPROCKET, DRIVEN

5G2-13355-00-00

Unavailable

3

BOLT, WASHER BASED (4H7)

90105-06154-00

$4.72

4

BOLT, HEXAGON SOCKET HEAD (4H7

90110-06035-00

$8.49

5

COVER, PUMP GEAR

4H7-13327-00-00

Unavailable

6

GROMMET, GEAR COVER

4H7-13328-00-00

Unavailable

7

O-RING (1J7)

93210-18319-00

$9.49

8

BOLT,SOCKET

91317-06025-00

$5.60

9

CHAIN, OIL PUMP (5G2)

94580-25062-00

$11.99

10

SPROCKET, DRIVE

4H7-13354-00-00

Unavailable

11

BRG,CYL-CAL ROLLER 18G KY

93315-23208-00

$34.99

12

PIPE, DELIVERY 1

1AA-13161-00-00

Unavailable

13

BOLT, UNION(3GM)

90401-10159-00

$11.49

14

GASKET (5R6)

90430-10171-00

$3.18

15

CLAMP

(90462-10156-00)

Unavailable

16

GROMMET

(90480-05434-00)

Unavailable

17

CAMSHAFT 2

1AE-12181-00-00

Unavailable

18

BOLT, FLANGE(4MY)

95027-06012-00

Unavailable

19

O-RING (26H)

93210-06632-00

Unavailable

20

PIPE,DELIVERY 4

2GH-13191-00-00

Unavailable

21

BOLT, FLANGE(4MY)

95027-06012-00

Unavailable

22

O-RING (26H)

93210-06632-00

Unavailable
