Description

Price

1

COVER, OIL ELEMENT

4K0-13447-00-00

Unavailable

2

ELEMENT, OIL CLEANER

1L9-13441-11-00

$9.99

3

GROMMET (1L9)

90480-23193-00

Unavailable

4

BY-PASS VALVE ASSY

1L9-13340-01-00

Unavailable

5

O-RING (26H)

93210-16629-00

$7.49

6

O-RING(1KF)

93210-87723-00

$13.49

7

WASHER, PLATE (1L9)

90201-21608-00

$8.49

8

SPRING, COMPRESSION (1L9)

90501-20422-00

$8.49

9

COVER, STRAINER

(31A-13417-00-00)

Unavailable

10

PLATE, BAFFLE LOWER

4H7-13337-00-00

$7.99

11

SCREW PAN HEAD

98580-06010-00

$8.49

12

GASKET, STRAINER COVER

4BB-13414-00-00

$30.99

13

UNAVAILABLE IN PRICE BOOK (91810-18016)

99510-18016-00

Unavailable

14

PLUG, STRAIGHT SCREW(3FA)

90340-14132-00

$3.98

15

SCREW, BIND(2TV)

98980-06008-00

$3.19

16

GASKET

214-11198-01-00

Unavailable

17

BOLT, HEXAGON SOCKET HEAD(1VJ)

90110-06138-00

Unavailable

18

BOLT,SOCKET

91317-06040-00

Unavailable

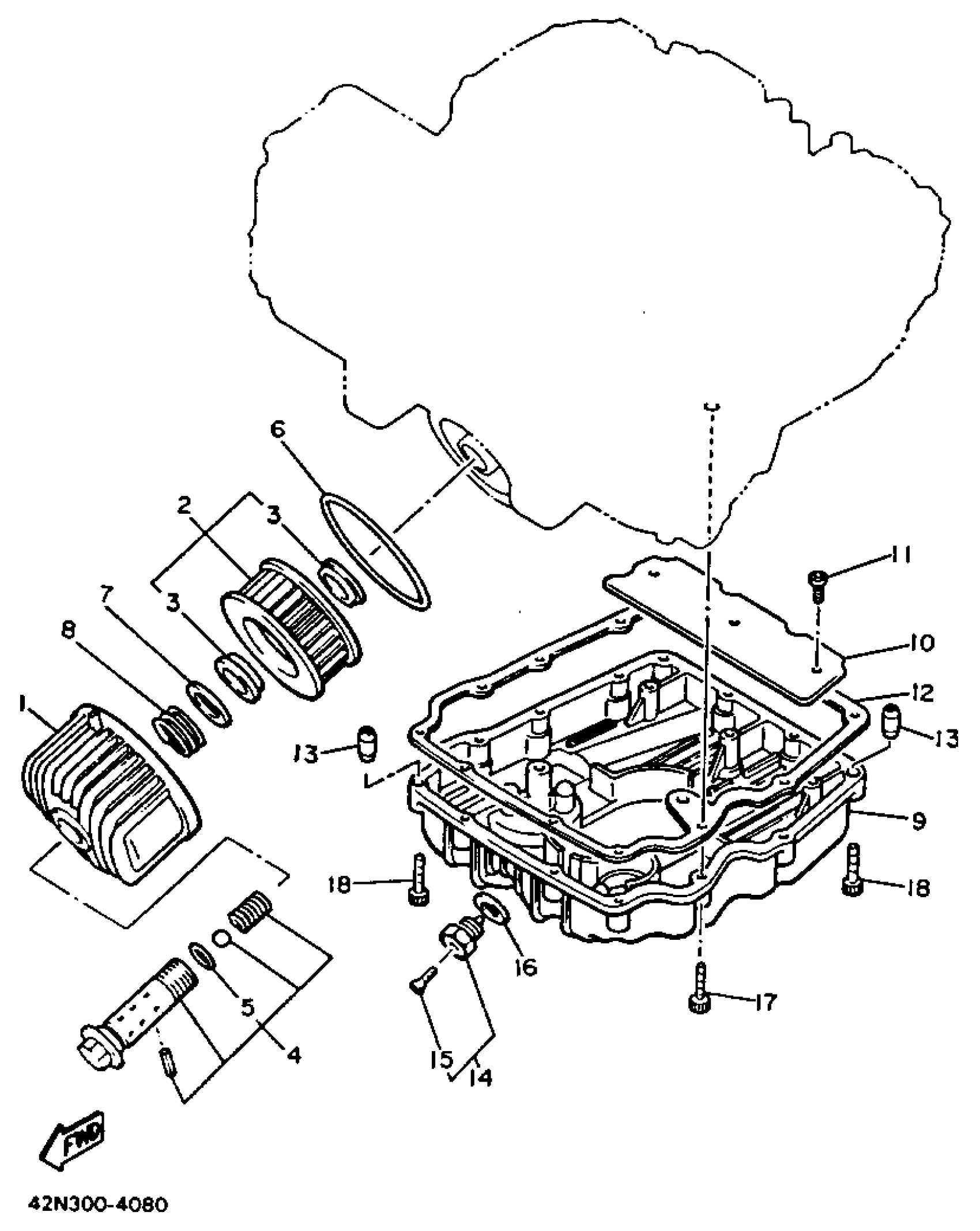

Yamaha XJ700XNC (MAXIM X CA) BH19356 1985 OIL FILTER Diagram

COVER, OIL ELEMENT

ELEMENT, OIL CLEANER

GROMMET (1L9)

BY-PASS VALVE ASSY

O-RING (26H)

O-RING(1KF)

WASHER, PLATE (1L9)

SPRING, COMPRESSION (1L9)

COVER, STRAINER

PLATE, BAFFLE LOWER

SCREW PAN HEAD

GASKET, STRAINER COVER

UNAVAILABLE IN PRICE BOOK (91810-18016)

PLUG, STRAIGHT SCREW(3FA)

SCREW, BIND(2TV)

GASKET

BOLT, HEXAGON SOCKET HEAD(1VJ)

BOLT,SOCKET
