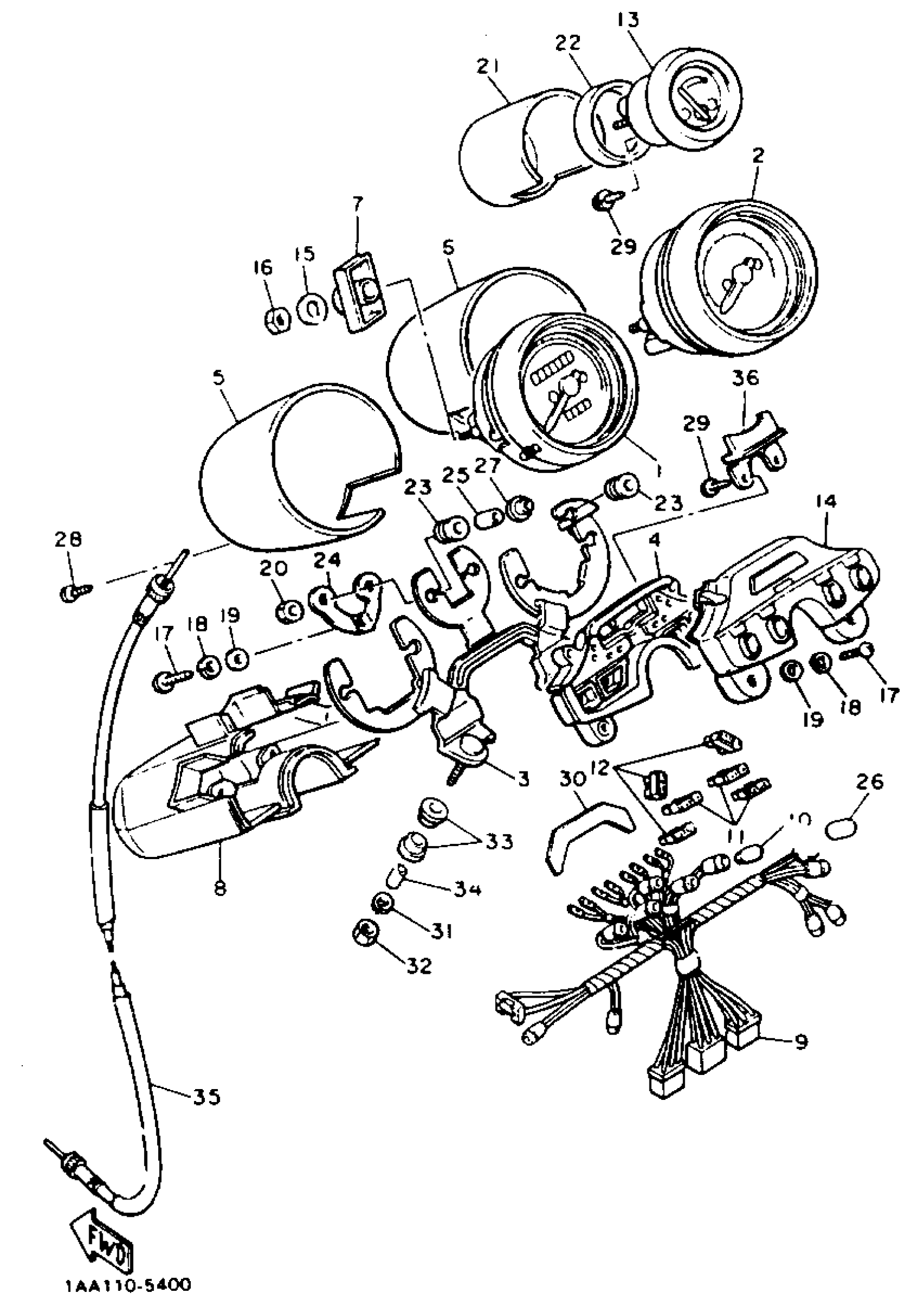

Yamaha XJ700XNC (MAXIM X CA) BH19356 1985 METER Diagram

#

Description

Price

1

SPEEDOMETER ASSEMBLY

1AA-83570-A0-00

Unavailable

2

TACHOMETER ASSEMBLY

1FG-83540-00-00

Unavailable

3

BRACKET, METER

1AA-83519-00-00

Unavailable

4

CASE, INNER

1AA-8353H-00-00

Unavailable

5

COVER, SPEEDOMETER

42X-83507-00-00

Unavailable

6

COVER, TACHOMETER

42X-83508-00-00

$95.99

7

DAMPER

1FG-83523-00-00

Unavailable

8

COVER, METER

1AA-83559-00-00

Unavailable

9

SOCKET CORD ASSEMBLY

1AA-83509-00-00

Unavailable

10

BULB (T6.5 12V-3W)

42X-83517-00-00

$8.99

11

FUSE (10A)

42X-82151-00-00

$4.32

12

FUSE (12V 15A)

36Y-82151-00-00

$4.94

13

WATER TEMP ASSEMBLY

1AA-83590-00-00

Unavailable

14

CASE,UPPER

2AE-8353G-40-00

Unavailable

15

WASHER, PLATE (8J0)

90201-05725-00

Unavailable

16

NUT, HEXAGON (663)

95380-05600-00

Unavailable

17

SCREW, PAN HEAD (713)

98580-04008-00

Unavailable

18

YBS67-4 WASHER, SPRING

92990-04100-00

Unavailable

19

WASHER, PLAIN (646)

92990-04600-00

Unavailable

20

NUT(6TA)

95307-04600-00

Unavailable

21

COVER, METER 2

1AA-83579-00-00

Unavailable

22

DAMPER

1AA-83592-00-00

Unavailable

23

DAMPER

1FK-83523-00-00

Unavailable

24

BRACKET, METER 2

1AA-8355Y-00-00

Unavailable

25

COLLAR

1AA-83522-00-00

Unavailable

26

TUBE

1FK-83535-00-00

Unavailable

27

WASHER, SPECIAL

1AA-83524-00-00

Unavailable

28

SCREW, TAPPING (10M)

90164-04009-00

Unavailable

29

UNAVAILABLE IN PRICE BOOK

90159-03010-00

Unavailable

30

COVER, METER 2

55R-83579-00-00

Unavailable

31

WASHER, SPRING

92907-06100-00

Unavailable

32

NUT(6TA)

95317-06600-00

Unavailable

33

DAMPER, METER BRACKET

584-83541-00-00

Unavailable

34

COLLAR (877)

90387-06249-00

Unavailable

35

SPEEDOMETER CABLE ASSY

3LP-83550-00-00

Unavailable

36

COVER

1AA-83568-00-00

Unavailable
