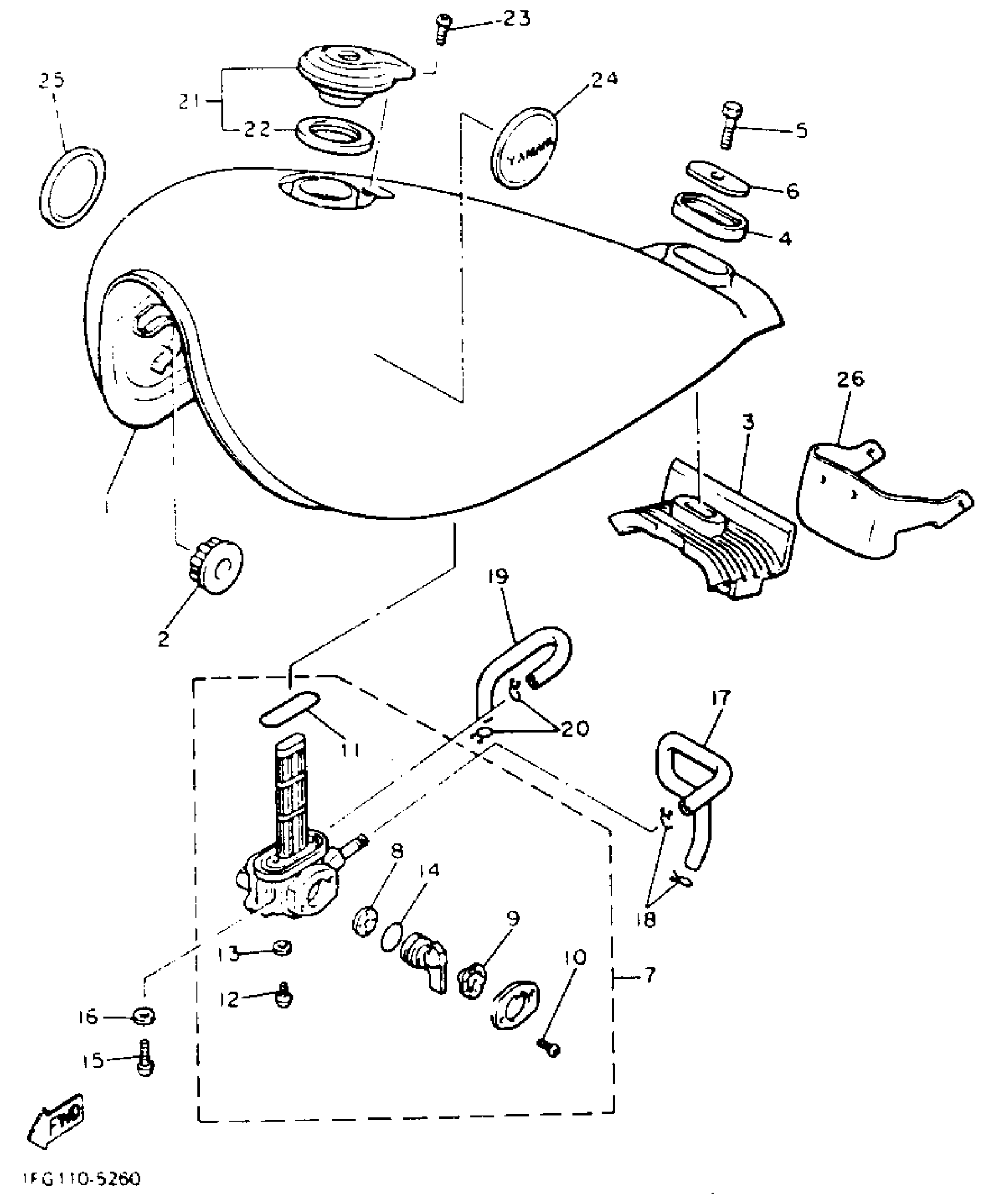

Yamaha XJ700XNC (MAXIM X CA) BH19356 1985 FUEL TANK NONCALIFORNIA MODEL Diagram

FUEL TANK COMP.

1AA-WK241-00-KU

Unavailable

FUEL TANK

1AA-24110-00-KX

Unavailable

DAMPER, LOCATING 1

26H-24181-00-00

$6.99

DAMPER, LOCATING 2

1AA-24182-00-00

Unavailable

DAMPER, LOCATING 3

3Y6-24183-00-00

$7.99

BOLT, HEXAGON

97013-08030-00

$2.49

WASHER, SPECIAL

12R-24186-00-00

$9.99

FUEL COCK ASSY 1

31A-24500-02-00

$237.99

VALVE

16G-24523-00-00

$28.99

. WASHER, WAVE

16G-24518-00-00

Unavailable

SCREW, PAN HEAD (J10)

98580-03008-00

$3.55

O-RING

2G2-24512-00-00

$10.99

SCREW, PAN HEAD(6A3)

97885-06008-00

Unavailable

GASKET, DRAIN PLUG

2G2-24522-00-00

$6.99

O-RING

2G2-24534-00-00

$8.99

SCREW 366241430000

90149-06008-00

Unavailable

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

PIPE, FUEL 1

1AA-24311-00-00

Unavailable

CLIP

90467-100A1-00

Unavailable

HOSE

90445-09531-00

Unavailable

CLIP (16G)

90467-08021-00

Unavailable

CAP ASSY

4X7-24602-10-00

Unavailable

GASKET, TANK CAP

4X7-24612-00-00

Unavailable

SCREW, PAN HEAD(3LA)

98517-05010-00

Unavailable

EMBLEM 1

1AA-24161-00-00

Unavailable

EMBLEM 1 (DEEP VIOLET)

1AA-24161-10-00

Unavailable

EMBLEM 2

1AA-24162-00-00

Unavailable

EMBLEM 2 (DEEP VIOLET)

1AA-24162-10-00

Unavailable

PLATE

1AA-2176E-00-00

Unavailable
