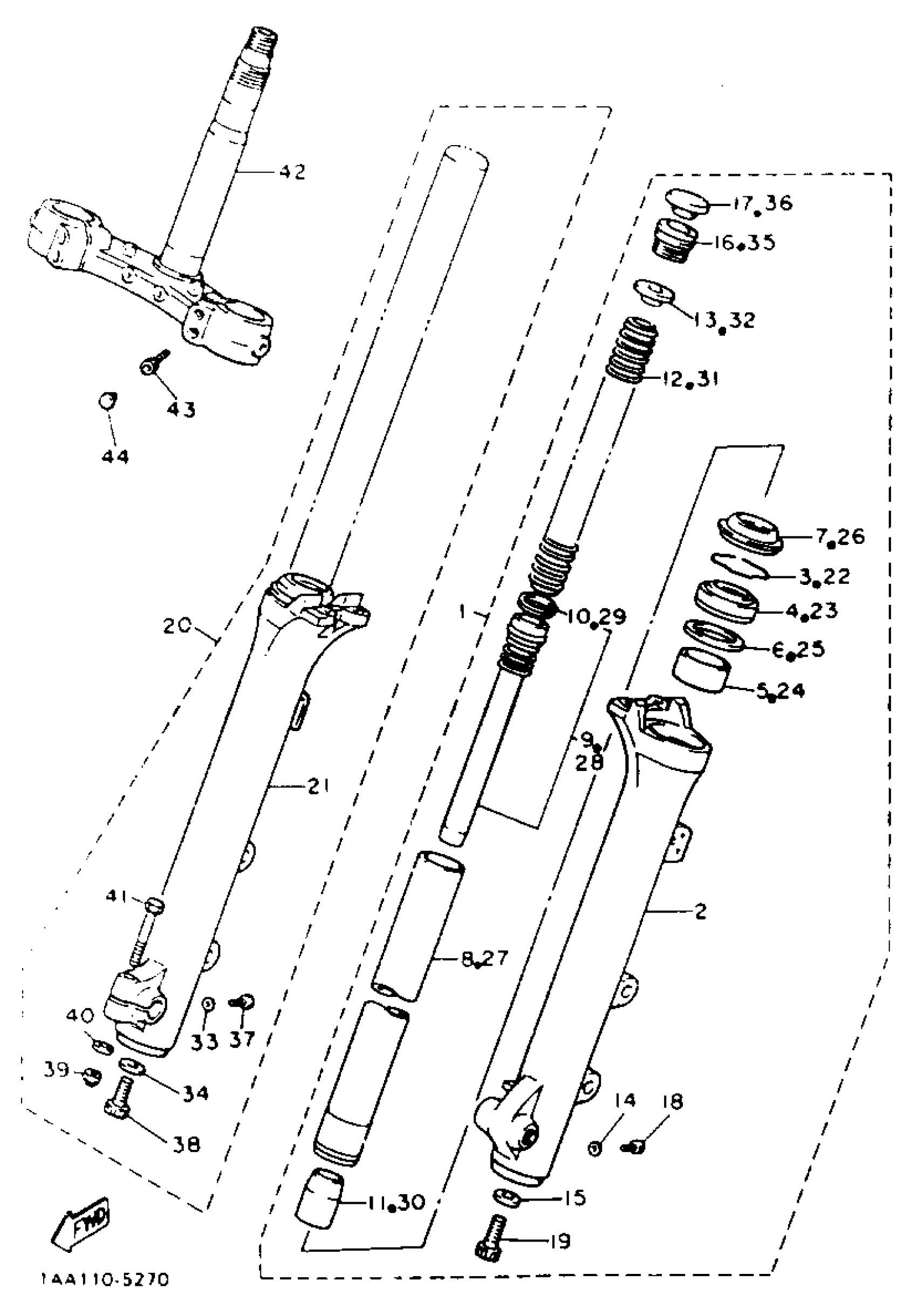

Yamaha XJ700XNC (MAXIM X CA) BH19356 1985 FRONT FORK Diagram
#
1
FRONT FORK ASSEMBLY L
1AA-23102-00-00
Unavailable
2
TUBE,OUTER(LEFT)
3JK-23126-10-00
Unavailable
7
SEAL, DUST
42X-23144-01-00
Unavailable
8
. INNER TUBE 1
1AA-23110-00-00
Unavailable
9
CYLINDER, FRTFRK
(1AA-23170-00-00)
Unavailable
10
.. RING, PISTON FRTFRK
31A-23157-00-00
Unavailable
12
. SPRING, FRONT FORK
1AA-23141-00-00
Unavailable
13
. SEAT, SPRING UPPER
1W1-23142-L0-00
Unavailable
16
. BOLT, CAP
1AA-23111-00-00
Unavailable
17
. CAP, FRONT FORK
1AA-23168-00-00
Unavailable
18
SCREW, PAN HEAD(3XP)
98517-04006-00
Unavailable
19
BOLT, HEXAGON SOCKET HEAD
3D8-23181-00-00
Unavailable
20
FRONT FORK ASSEMBLY R
1AA-23103-00-00
Unavailable
21
TUBE,OUTER(RIGHT)
3JK-23136-10-00
Unavailable
26
SEAL, DUST
42X-23144-01-00
Unavailable
27
. INNER TUBE 1
1AA-23110-00-00
Unavailable
28
CYLINDER, FRTFRK
(1AA-23170-00-00)
Unavailable
29
.. RING, PISTON FRTFRK
31A-23157-00-00
Unavailable
31
. SPRING, FRONT FORK
1AA-23141-00-00
Unavailable
32
. SEAT, SPRING UPPER
1W1-23142-L0-00
Unavailable
35
. BOLT, CAP
1AA-23111-00-00
Unavailable
36
. CAP, FRONT FORK
1AA-23168-00-00
Unavailable
37
SCREW, PAN HEAD(3XP)
98517-04006-00
Unavailable
38
BOLT, HEXAGON SOCKET HEAD
3D8-23181-00-00
Unavailable
39
NUT, U
95617-08100-00
Unavailable
40
.. WASHER, PLATE
92990-08600-00
Unavailable
41
BOLT (1E6)
90101-08340-00
Unavailable
42
UNDER BRACKET
1AA-23340-00-00
Unavailable
43
BOLT,SOCKET
91314-08030-00
Unavailable
44
PLUG(42X)
90338-08163-00
Unavailable
