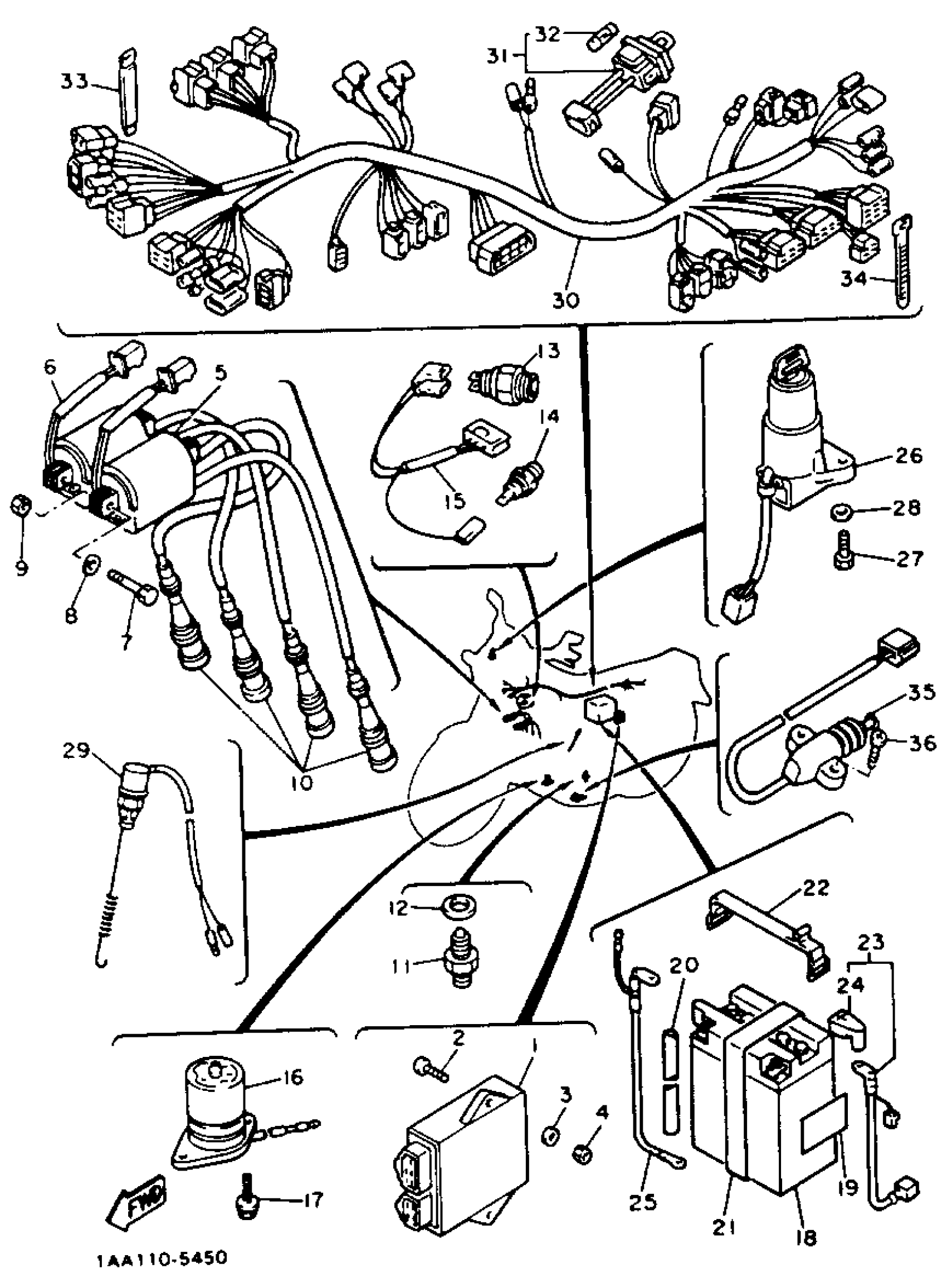

Yamaha XJ700XNC (MAXIM X CA) BH19356 1985 ELECTRICAL 2 Diagram

IGNITOR UNIT ASSEMBLY 1

1AA-82305-10-00

Unavailable

SCREW, PAN

98507-06014-00

$8.49

WASHER, PLAIN (646)

92990-06600-00

$2.80

NUT(650)

95380-06700-00

$8.49

IGNITION COIL ASSY

1AA-82310-09-00

Unavailable

IGNITION COIL ASSY

1AA-82310-09-00

Unavailable

BOLT

97006-06080-00

Unavailable

WASHER(6TA)

92907-06200-00

$8.49

NUT(6TA)

95317-06600-00

$3.55

PLUG CAP ASSY

2KT-82370-00-00

$122.99

NEUTRAL SWITCH ASSY

4GY-82540-10-00

$37.99

GASKET (5R6)

90430-10171-00

$3.18

THERMO SWITCH ASSY

3LN-82560-01-00

Unavailable

THERMO UNIT

11H-83591-00-00

$105.99

SOCKET CORD ASSEMBLY

1AA-83509-00-00

Unavailable

OIL LEVEL GAUGE ASSY

4H7-85720-02-00

Unavailable

BOLT, WASHER BASED(JA9)

90105-06696-00

Unavailable

UNAVAILABLE IN PRICE BOOK

BTY-YB146-A2-00

Unavailable

LABEL, BATTERY

40A-82141-G0-00

Unavailable

HOSE (L1500)

90445-084J0-00

Unavailable

BAND, BATTERY

1UA-82124-00-00

Unavailable

BAND, BATTERY

4J2-82131-01-00

Unavailable

WIRE, PLUS LEAD

1TX-82115-00-00

Unavailable

. COVER, LEAD WIRE

4X7-82119-00-00

Unavailable

WIRE, MINUS LEAD

1AA-82116-00-00

Unavailable

MAIN SWITCH STEERING LOCK

42X-82501-50-00

Unavailable

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

WASHER, PLAIN (646)

92990-06600-00

$2.80

STOP SWITCH ASSY

5R2-82530-03-00

Unavailable

WIRE HARNESS ASSEMBLY

1MY-82590-00-00

Unavailable

FUSE HOLDER ASSEMBLY

3H5-82150-00-00

Unavailable

FUSE (12V 30A)

2H7-82151-00-00

Unavailable

BAND

341-26397-01-00

Unavailable

BAND, SWITCH CORD

25G-83936-01-00

Unavailable

SWITCH,SIDE STAND

1AA-82566-01-00

Unavailable

SCREW, FLAT

98707-05016-00

Unavailable
