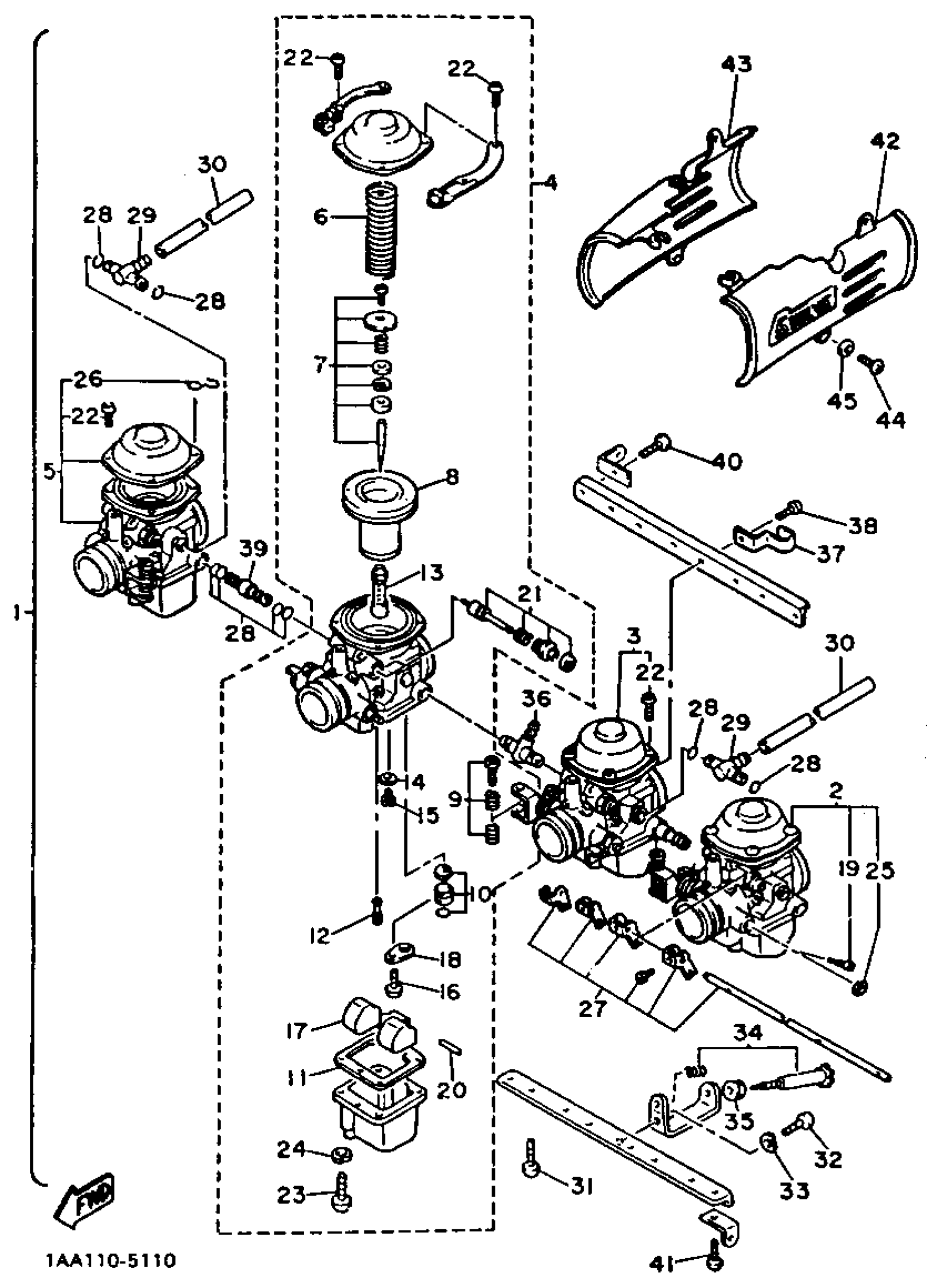

Yamaha XJ700XNC (MAXIM X CA) BH19356 1985 CARBURETOR Diagram
#
1
UNAVAILABLE IN PRICE BOOK
(1AA-14900-00-)
Unavailable
1
UNAVAILABLE IN PRICE BOOK
(1FJ-14900-00-)
Unavailable
2
. CARBURETOR ASSEMBLY 1
1FJ-14901-00-00
Unavailable
2
. CARBURETOR ASSEMBLY 1
1FJ-14901-00-00
Unavailable
3
CARBURETOR ASSEMBLY 2
(1AA-14902-00-00)
Unavailable
3
CARBURETOR ASSEMBLY 2
(1FJ-14902-00-00)
Unavailable
4
. CARBURETOR ASSEMBLY 3
1AA-14903-00-00
Unavailable
4
CARBURETOR ASSEMBLY 3
(1FJ-14903-00-00)
Unavailable
5
. CARBURETOR ASSEMBLY 4
1FJ-14904-00-00
Unavailable
5
. CARBURETOR ASSEMBLY 4
1FJ-14904-00-00
Unavailable
6
.. SPRING, DIAPHRAGM
3F7-14933-00-00
Unavailable
7
.. NEEDLE SET
1AA-1490J-00-00
Unavailable
8
.. DIAPHRAGM ASSEMBLY
1AA-14940-00-00
Unavailable
9
STOP SCREW SET
(31A-1490K-00-00)
Unavailable
11
GASKET, FLOAT CHAMBER
3XW-14984-00-00
Unavailable
12
. UNAVAILABLE IN PRICE BOOK
4G0-14142-36-A0
Unavailable
13
. NOZZLE, MAIN
16H-14941-92-00
Unavailable
14
WASHER,MAIN JET
137-14153-00-00
Unavailable
15
JET, MAIN (#100)
620-14231-20-00
Unavailable
16
SCREW, PAN HEAD(3XP)
98517-04006-00
Unavailable
17
FLOAT
3H5-14985-00-00
Unavailable
18
. PLATE
2H0-14146-00-00
Unavailable
19
PLUG, DRAIN
12R-14191-00-00
Unavailable
20
PIN, FLOAT
537-14186-00-00
Unavailable
21
.. STARTER SET
49A-1410A-00-00
Unavailable
22
SCREW, PAN HEAD(62X)
97885-05010-00
Unavailable
23
SCREW, PAN HEAD(6B0)
97885-05016-00
Unavailable
24
YBS67-5 WASHER, SPRING
92990-05100-00
Unavailable
25
CLIP
812-14137-00-00
Unavailable
26
CLIP
(1AA-14937-00-00)
Unavailable
27
STARTER LEVER SET
(1AA-1490L-00-00)
Unavailable
28
O-RING
36Y-14147-00-00
Unavailable
29
. PIPE, STARTER CON
4V7-14988-00-00
Unavailable
30
HOSE
(17A-14987-00-00)
Unavailable
31
SCREW, PAN
98507-06014-00
Unavailable
32
SCREW, PAN HEAD(62X)
97885-05010-00
Unavailable
33
YBS67-5 WASHER, SPRING
92990-05100-00
Unavailable
34
THROTTLE SCREW SET
(1AA-14103-00-00)
Unavailable
35
. BUSH
4G0-14998-00-00
Unavailable
36
NIPPLE, CARBURETOR JOINT
1J7-14988-00-00
Unavailable
37
CLIP, PIPE
(1AA-14139-00-00)
Unavailable
38
SCREW, PAN HEAD(62X)
97885-05010-00
Unavailable
39
PIPE, STARTER CON
16H-14988-00-00
Unavailable
40
SCREW, PAN HEAD(6B0)
97885-05016-00
Unavailable
41
SCREW, PAN
98507-06014-00
Unavailable
42
COVER, CARB.JOINT
1AA-13564-00-00
Unavailable
43
COVER, MANIFOLD 2
1AA-13594-00-00
Unavailable
44
SCREW, BIND
98903-05010-00
Unavailable
45
. WASHER, PLAIN
92990-05200-00
Unavailable
