1986 Yamaha Maxim CA (XJ700SC) Transmission Diagram

← All diagrams

Find the part on the Transmission diagram for your 1986 Yamaha Maxim CA (XJ700SC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

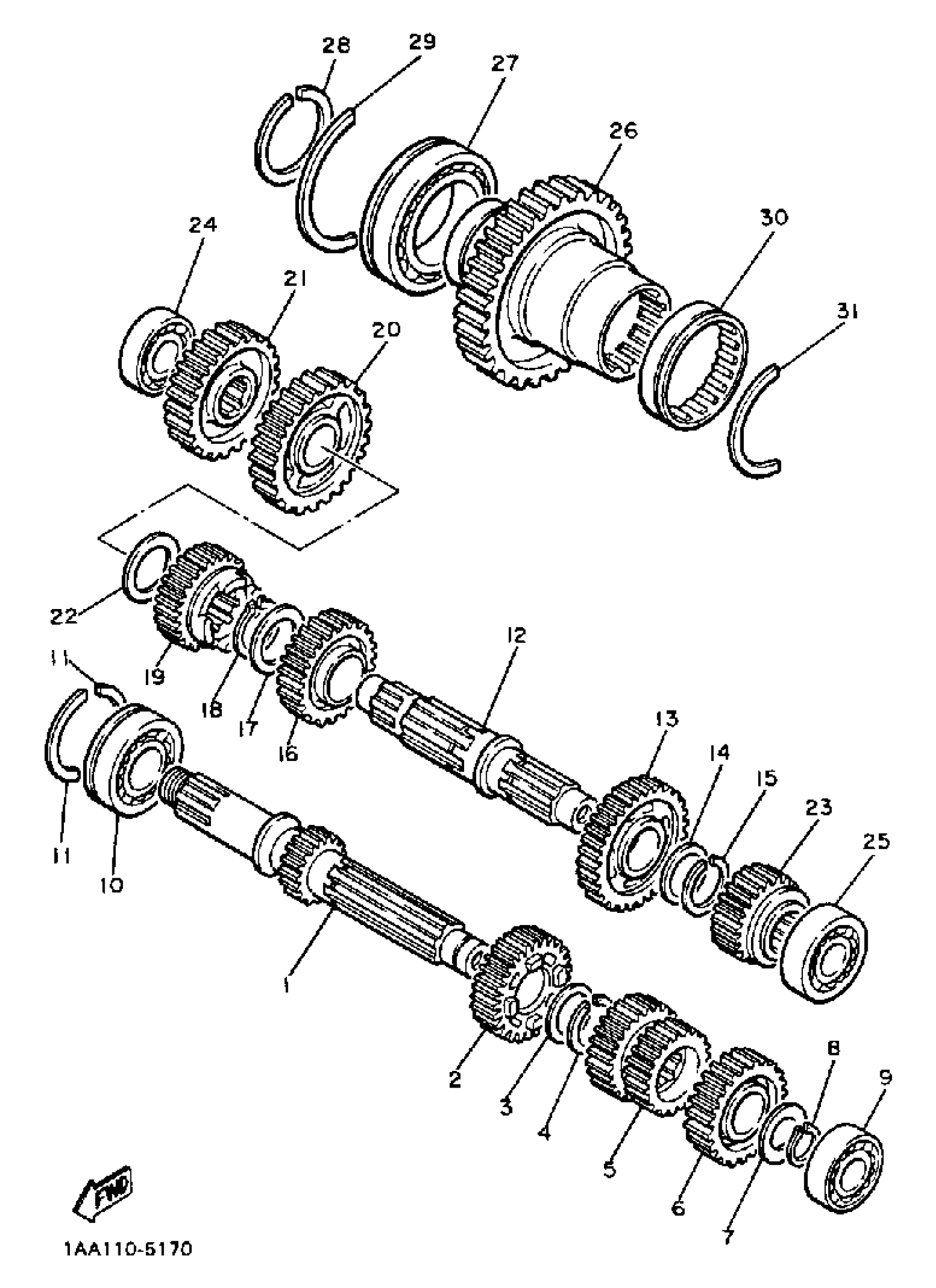

1986 Yamaha Maxim CA (XJ700SC) Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

MAIN AXLE ASSEMBLY

4H7-17401-00-00

1
Out of stock

2

GEAR, 4TH PINION

4H7-17141-00-00

—
Out of stock

3

WASHER (3J3)

90209-22191-00

1
Out of stock

4

CIRCLIP (4L0)

93440-25084-00

1
Out of stock

5

GEAR, 2ND PINION

4BB-17121-00-00

1
Out of stock

6

GEAR, 5TH PINION

4KM-17151-00-00

—
Out of stock

7

WASHER PLATE 328171160000

90201-20276-00

1
Out of stock

8

CIRCLIP(1AR)

99009-20400-00

1
Out of stock

9

BEARING(1GJ)

93306-20458-00

1
Out of stock

10

BEARING(1WG)

93306-30550-00

1
Out of stock

11

CIRCLIP

278-17424-01-00

1
Out of stock

12

DRIVE AXLE ASSEMBLY

4H7-17402-01-00

1
Out of stock

13

GEAR, 2ND WHEEL

4KM-17221-01-00

—
Out of stock

14

WASHER (31A)

90209-22252-00

—
Out of stock

15

CIRCLIP (4L0)

93440-25084-00

1
Out of stock

16

GEAR, 3RD WHEEL

4KM-17231-01-00

—
Out of stock

17

WASHER (4H7)

90209-25196-00

—
Out of stock

18

CIRCLIP (2H7)

93440-28062-00

—
Out of stock

19

GEAR, 4TH WHEEL

4H7-17241-00-00

1
Out of stock

20

GEAR, 1ST WHEEL

4KM-17211-00-00

—
Out of stock

21

GEAR, MIDDLE DRIVE

4H7-17582-00-00

1
Out of stock

22

WASHER, PLATE (4H7)

90201-243A2-00

—
Out of stock

23

GEAR, 5TH WHEEL

16G-17251-00-00

1
Out of stock

24

BRG,R-B 6303 47MM 115G NK

93306-30302-00

—
Out of stock

25

BEARING(3LD)

93306-20464-00

—
Out of stock

26

GEAR, MIDDLE DRIVEN

1AA-17583-00-00

1
Out of stock

27

BRG R-B 6911 80MM 176G NT

93306-91101-00

—
Out of stock

28

CIRCLIP(4BB)

99009-55400-00

—
Out of stock

29

CIRCLIP (4H7)

93440-80082-00

—
Out of stock

30

BRG,CYL-CAL ROLLER 100G KY

93311-36042-00

—
Out of stock

31

CIRCLIP (1J7)

93440-72049-00

—
Out of stock
